Transmission Vent Hose Replacement (L84, L87)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5604811 Removal Procedure

1. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

Transmission Vent Hose Replacement (L84, L87) — figure 1

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

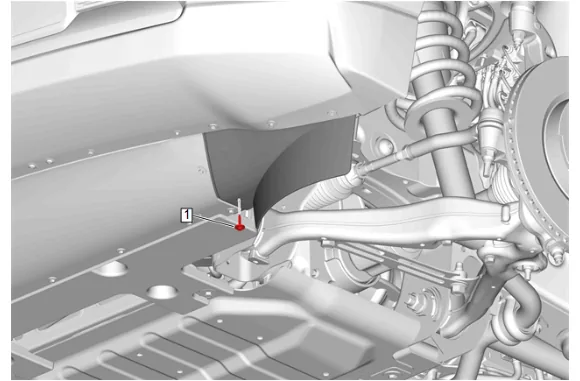

2. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

Transmission Vent Hose Replacement (L84, L87) — figure 2

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

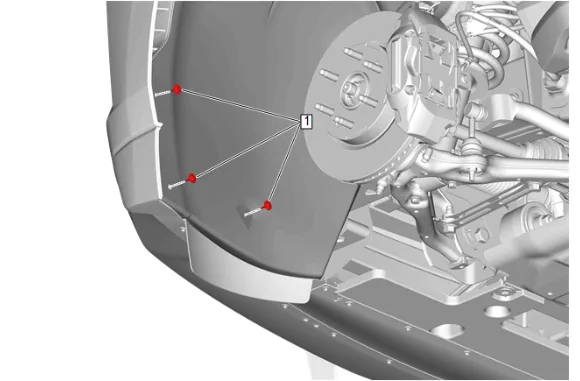

3. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Transmission Vent Hose Replacement (L84, L87) — figure 3

Note

Quantity of fasteners may vary based on option content.

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

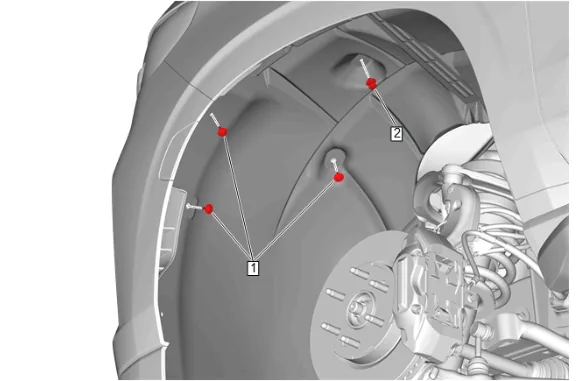

4. Front Wheelhouse Liner Bolt (1) » Remove [3x]
5. Front Wheelhouse Liner Retainer (2) » Remove

Transmission Vent Hose Replacement (L84, L87) — figure 4

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

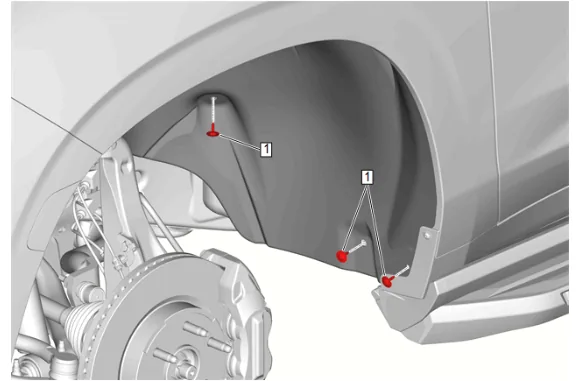

6. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Transmission Vent Hose Replacement (L84, L87) — figure 5

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

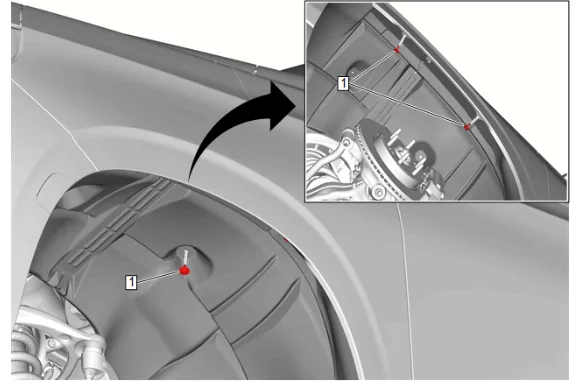

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Transmission Vent Hose Replacement (L84, L87) — figure 6

Note

Remove the right side ONLY.

Note

Left side shown, right side similar.

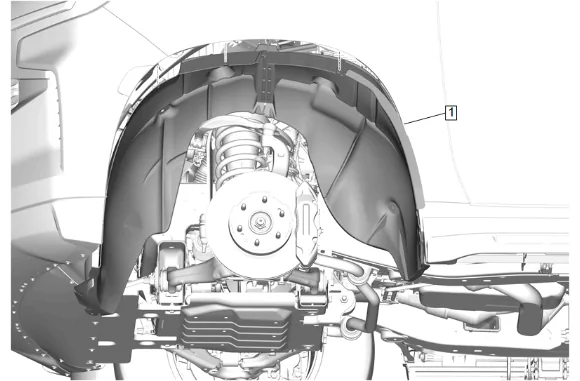

8. Front Wheelhouse Liner (1) » Remove

Transmission Vent Hose Replacement (L84, L87) — figure 7

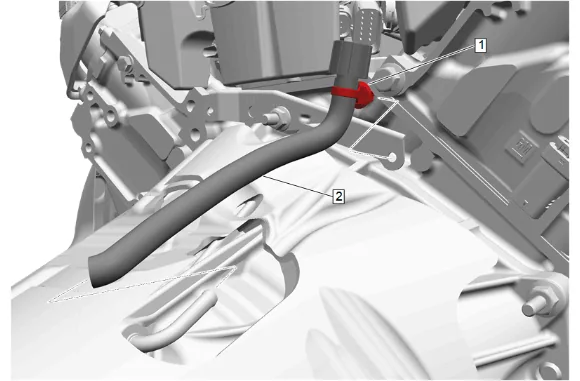

9. Remove the transmission vent hose retainer (1).

10. Remove the transmission vent hose. (2) Installation Procedure

11. Install transmission vent hose. (2)

12. Install the transmission vent hose retainer (1).

13. Front Wheelhouse Liner (1) » Install

Caution

Refer to Fastener Caution.

4. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

5. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

6. Front Wheelhouse Liner Retainer (2) » Install

Note

Quantity of fasteners may vary based on option content.

7. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

8. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

9. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

10. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

11. Lower the vehicle.
