Rear Seat Belt Retractor Replacement

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

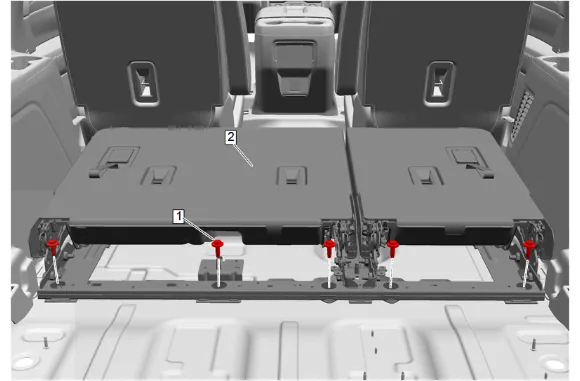

Rear Seat Belt Retractor Replacement — figure 1

1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
2. Disable the SIR system. SIR Disabling and Enabling

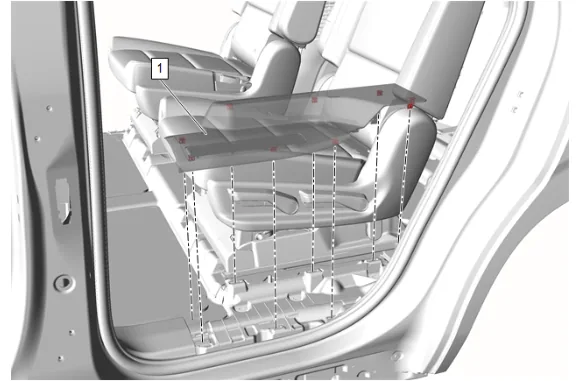

Rear Seat Belt Retractor Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

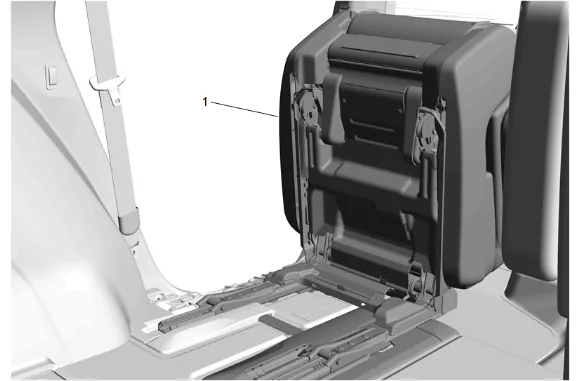

Rear Seat Belt Retractor Replacement — figure 3

5. Place the rear seat (1) in the fold and tumble position.

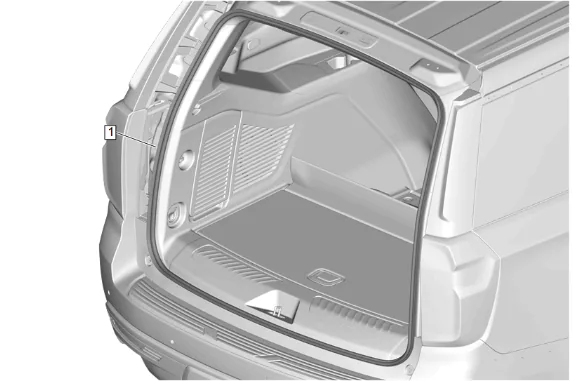

Rear Seat Belt Retractor Replacement — figure 4

6. Liftgate Weatherstrip (1) » Reposition

Rear Seat Belt Retractor Replacement — figure 5

7. Liftgate Lock Striker Cover (1) » Remove

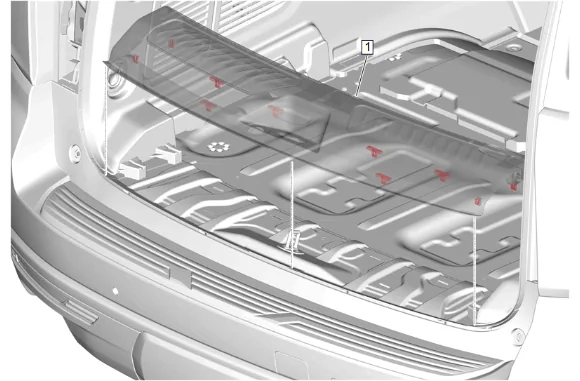

Rear Seat Belt Retractor Replacement — figure 6

8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Rear End Trim Finish Panel (1) » Remove

Rear Seat Belt Retractor Replacement — figure 7

10. Rear Seat Belt Anchor Plate Cover (1) » Reposition
11. Rear Seat Belt Anchor Plate Bolt (2) » Remove

Rear Seat Belt Retractor Replacement — figure 8

12. Using a suitable plastic trim tool, release the retaining tabs.

Note

Feed the rear seat belt anchor plate and cover through the rear set belt opening bezel to remove.

13. Rear Seat Belt Opening Bezel (1) » Remove

Rear Seat Belt Retractor Replacement — figure 9

14. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
15. Quarter Window Trim Finish Panel Bolt (2) » Remove

Rear Seat Belt Retractor Replacement — figure 10

16. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

17. Body Lock Pillar Upper Trim Panel (1) » Remove

Rear Seat Belt Retractor Replacement — figure 11

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

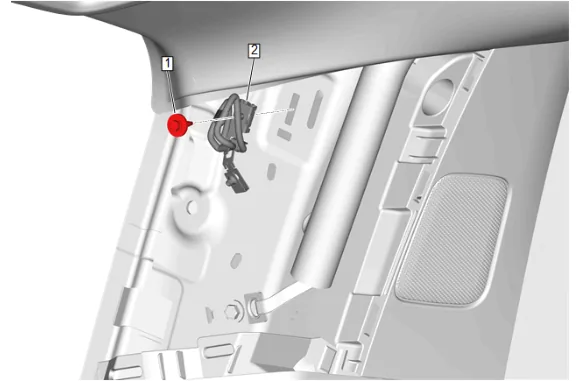

Rear Seat Belt Retractor Replacement — figure 12

20. Body Side Rear Window Garnish Molding Bolt (1) » Remove
21. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Rear Seat Belt Retractor Replacement — figure 13

22. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Rear Seat Belt Retractor Replacement — figure 14

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Body Rear Corner Upper Garnish Molding (1) » Remove

Rear Seat Belt Retractor Replacement — figure 15

25. Electrical Connector (1) » Disconnect
26. Wiring Harness Retainer (2) » Remove

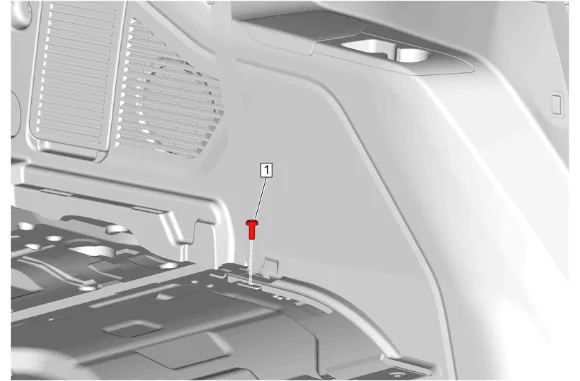

Rear Seat Belt Retractor Replacement — figure 16

27. 3rd Row Seat Belt Anchor Bolt (1) » Remove

Rear Seat Belt Retractor Replacement — figure 17

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Rear Seat Belt Opening Bezel (1) » Remove

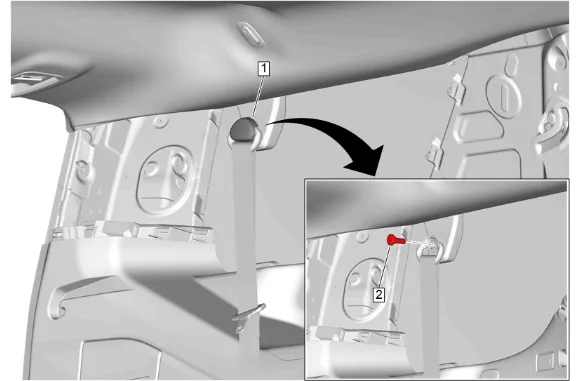

Rear Seat Belt Retractor Replacement — figure 18

30. 3rd Row Seat Belt Retractor Anchor Cover (1) » Open
31. 3rd Row Seat Belt Guide Bolt (2) » Remove

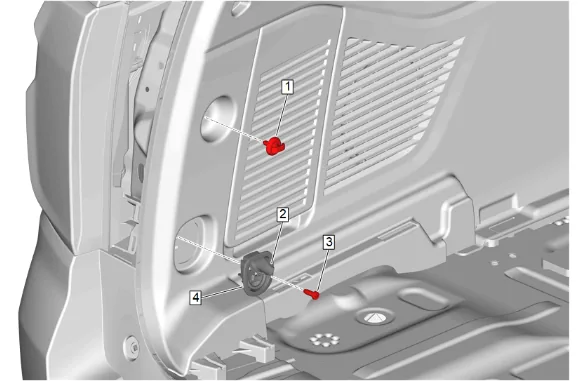

Rear Seat Belt Retractor Replacement — figure 19

32. Convenience Net Retainer (1) » Remove
33. Cargo Tie Down Loop Bolt Cap (2) » Open
34. Cargo Tie Down Loop Bolt (3) » Remove
35. Cargo Tie Down Loop (4) » Remove

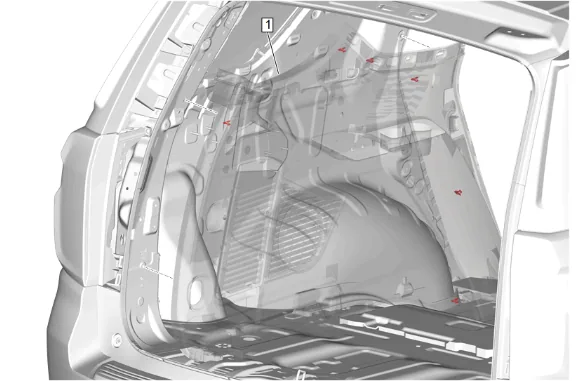

Rear Seat Belt Retractor Replacement — figure 20

36. Using a flat-bladed plastic trim tool, release the retaining clips.
37. If equipped, disconnect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

38. Quarter Lower Rear Trim Panel (1) » Remove

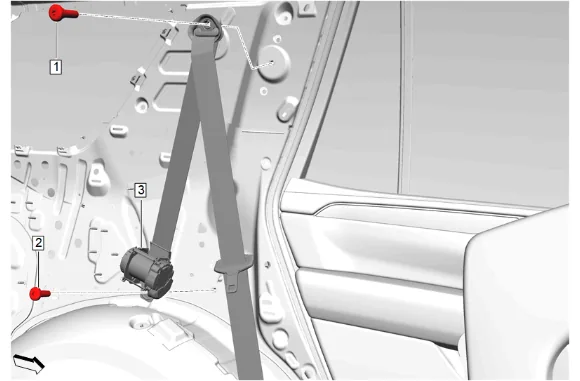

Rear Seat Belt Retractor Replacement — figure 21

39. Rear Seat Belt Guide Bolt (1) » Remove

40. Rear Seat Belt Retractor Bolt (2) » Remove

41. Rear Seat Belt Retractor (3) » Remove Installation Procedure

42. Rear Seat Belt Retractor (3) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Belt Retractor Bolt (2) » Install and tighten — Fastener Specifications

3. Rear Seat Belt Guide Bolt (1) » Install and tighten — Fastener Specifications

4. If equipped, connect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

5. Quarter Lower Rear Trim Panel (1) » Install

6. Cargo Tie Down Loop (4) » Install

7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

8. Cargo Tie Down Loop Bolt Cap (2) » Close

9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

10. 3rd Row Seat Belt Guide Bolt (2) » Install and tighten — Fastener Specifications

11. 3rd Row Seat Belt Retractor Anchor Cover (1) » Close

12. Rear Seat Belt Opening Bezel (1) » Install

13. 3rd Row Seat Belt Retractor Bolt (1) » Install and tighten — Fastener Specifications

14. Wiring Harness Retainer (2) » Install

15. Electrical Connector (1) » Connect

16. Body Rear Corner Upper Garnish Molding (1) » Install

17. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

18. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

19. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

20. Body Side Rear Window Garnish Molding (1) » Install

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

21. Body Lock Pillar Upper Trim Panel (1) » Install

22. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

23. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

Note

Feed the rear seat belt anchor plate and cover through the rear set belt opening bezel to install.

24. Rear Seat Belt Opening Bezel (1) » Install

25. Rear Seat Belt Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

26. Rear Seat Belt Anchor Plate Cover (1) » Install

27. Rear End Trim Finish Panel (1) » Install

28. Liftgate Lock Striker Cover (1) » Install

29. Liftgate Weatherstrip (1) » Reposition

30. Return the rear seat (1) to the original position.

31. Rear Side Door Sill Garnish Molding (1) » Install

32. Enable the SIR System. SIR Disabling and Enabling

33. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
