Headlamp Bracket Replacement (Headlamp)

Removal Procedure

Headlamp Bracket Replacement (Headlamp) — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

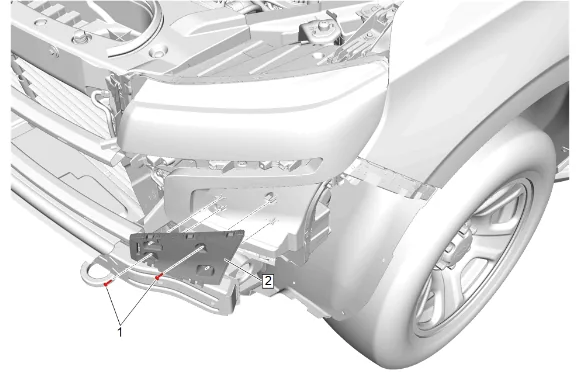

Headlamp Bracket Replacement (Headlamp) — figure 2

2. Headlamp Bracket Bolt (1) » Remove [2x]

3. Headlamp Bracket (2) » Remove Installation Procedure

4. Headlamp Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Headlamp Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
