Assist Step Shield Replacement (Motor)

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

Assist Step Shield Replacement (Motor) — figure 1

2. Retainer (1) » Disengage

Assist Step Shield Replacement (Motor) — figure 2

3. Retainer (1) » Disengage
4. Assist Step Shield Bolt (2) » Remove [2x]

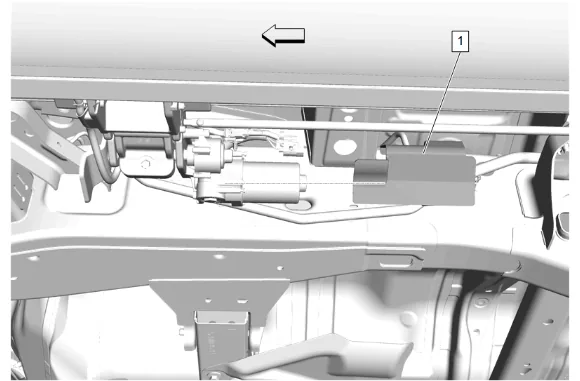

Assist Step Shield Replacement (Motor) — figure 3

5. Assist Step Shield (1) » Remove Installation Procedure

6. Assist Step Shield (1) » Install

7. Retainer (1) » Engage

Caution

Refer to Fastener Caution.

3. Assist Step Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications
4. Retainer (1) » Engage
5. Lower the vehicle.
