Evaporative Emission Canister Purge Tube Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5541507

Warning

Refer to Diesel/Gasoline Vapors Warning.

Warning

Refer to Safety Glasses Warning. Removal Procedure

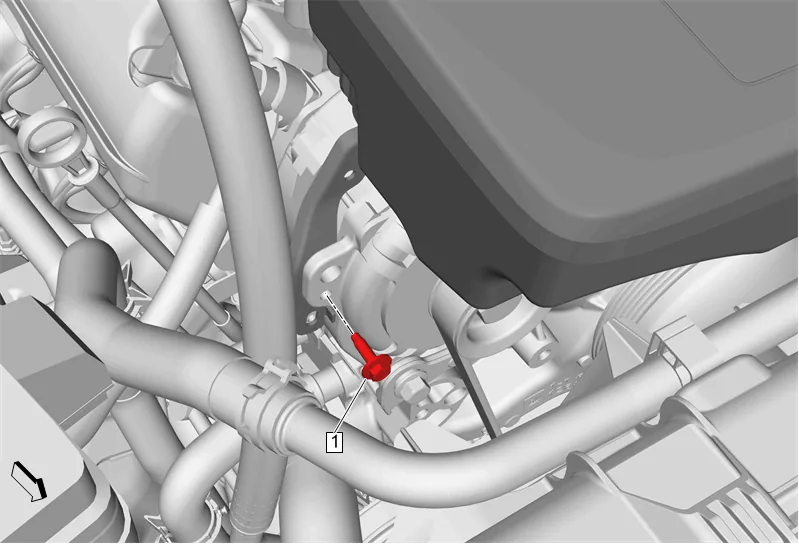

Evaporative Emission Canister Purge Tube Replacement — figure 1

1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
2. Remove engine wiring harness from air cleaner outlet duct bracket.

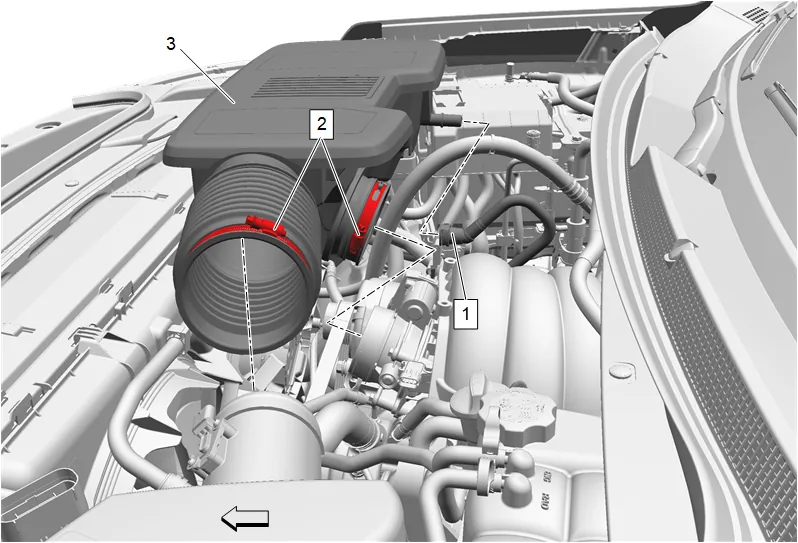

Evaporative Emission Canister Purge Tube Replacement — figure 2

3. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
4. Air Cleaner Outlet Duct Clamp (2) » Remove [2x]
5. Air Cleaner Outlet Duct (3) » Remove

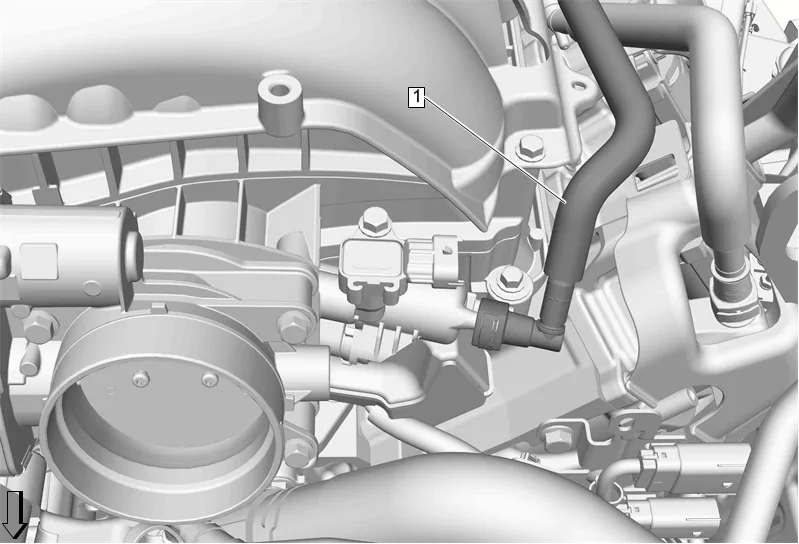

Evaporative Emission Canister Purge Tube Replacement — figure 3

6. Evaporative Emission Canister Purge Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service

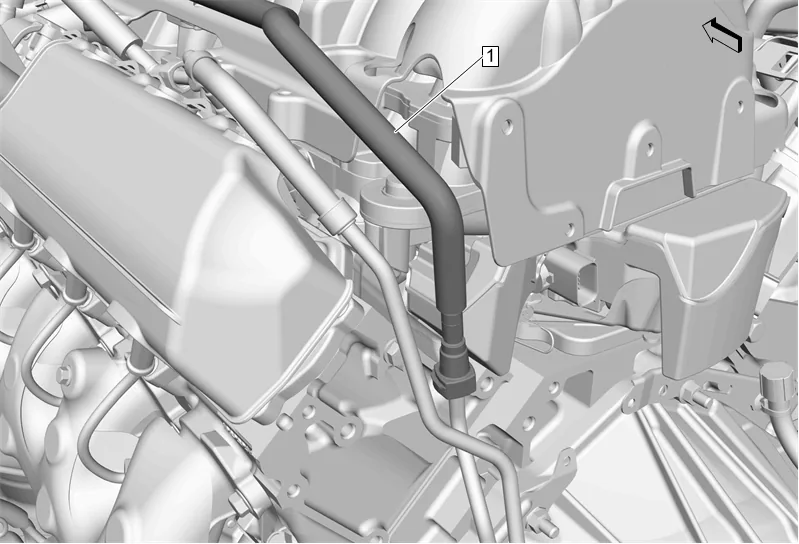

Evaporative Emission Canister Purge Tube Replacement — figure 4

7. Evaporative Emission Canister Purge Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service

8. Evaporative Emission Canister Purge Tube (1) » Remove Installation Procedure

9. Evaporative Emission Canister Purge Tube (1) » Install

10. Evaporative Emission Canister Purge Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

11. Evaporative Emission Canister Purge Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

12. Air Cleaner Outlet Duct (3) » Install

Caution

Refer to Fastener Caution.

5. Air Cleaner Outlet Duct Clamp (2) » Install and tighten [2x] — Fastener Specifications

6. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

7. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

8. Install engine wiring harness to the air cleaner outlet duct bracket.
