Telematic Control Module Replacement

Removal Procedure

Telematic Control Module Replacement — figure 1

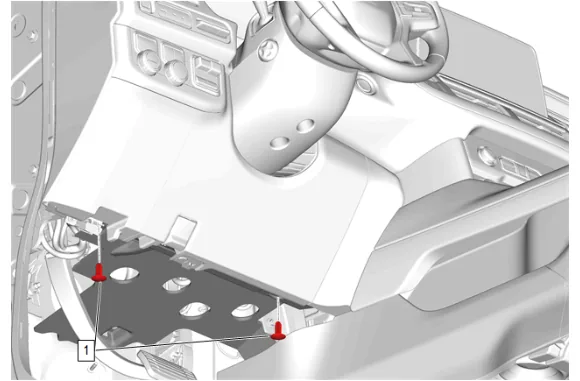

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

Telematic Control Module Replacement — figure 2

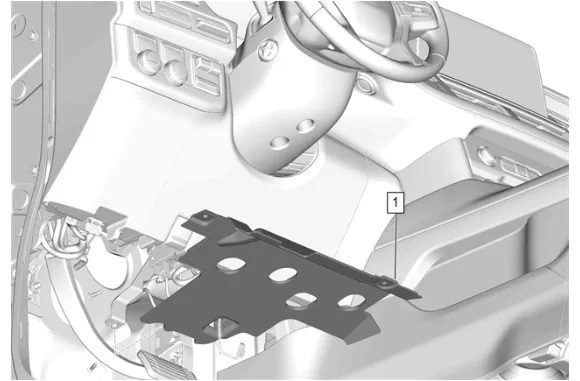

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

Telematic Control Module Replacement — figure 3

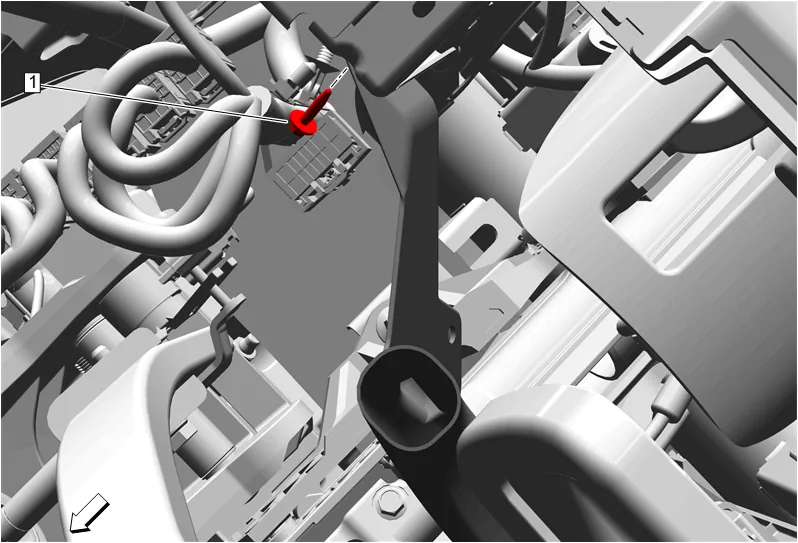

3. Floor Front Air Outlet Duct Bolt (1) » Remove

Telematic Control Module Replacement — figure 4

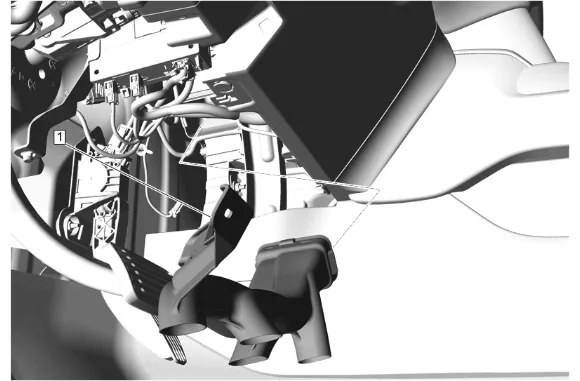

4. Floor Front Air Outlet Duct - Left Side (1) » Remove

Telematic Control Module Replacement — figure 5

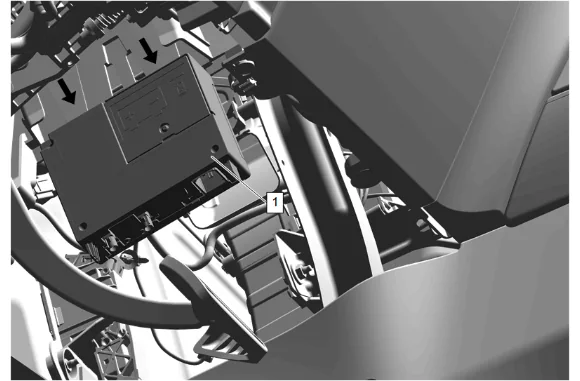

5. Disconnect the electrical connectors.

6. Release the retaining tabs.

7. Telematic Control Module (1) » Remove Installation Procedure

8. Telematic Control Module (1) » Install

9. Connect the electrical connectors.

Warning

Upon installing the floor duct to the side of the HVAC case, it is necessary to verify duct opening is completely installed, surrounding the HVAC case outlet port. Failure to do so could result in the duct falling downward, with the potential to interfere with driver’s legs and gas/brake pedal operation.

3. Floor Front Air Outlet Duct - Left Side (1) » Install

Caution

Refer to Fastener Caution.

4. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

5. Instrument Panel Lower Trim Panel Insulator (1) » Install

6. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

7. Perform the necessary programming and setup procedure: Control Module References
