Tahoe / Yukon Service Manual

Knock Sensor 2 Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5573200 Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

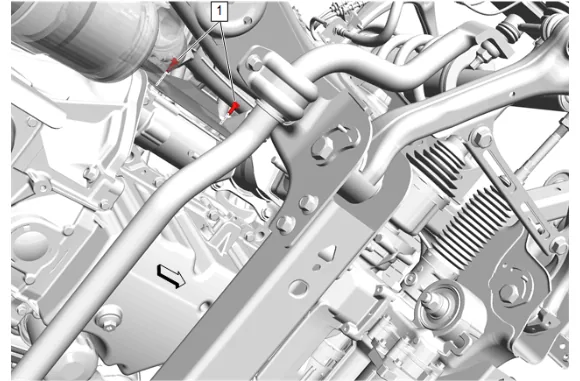

Knock Sensor 2 Replacement — figure 1
Knock Sensor 2 Replacement — figure 1
  1. Starter Heat Shield Bolt (1) » Remove [2x]

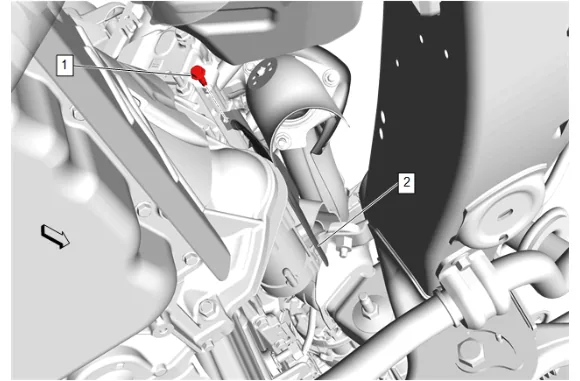

Knock Sensor 2 Replacement — figure 2
Knock Sensor 2 Replacement — figure 2
  1. Starter Heat Shield Bolt (1) » Remove
  2. Starter Heat Shield (2) » Remove
  3. Disconnect the knock sensor electrical connector.

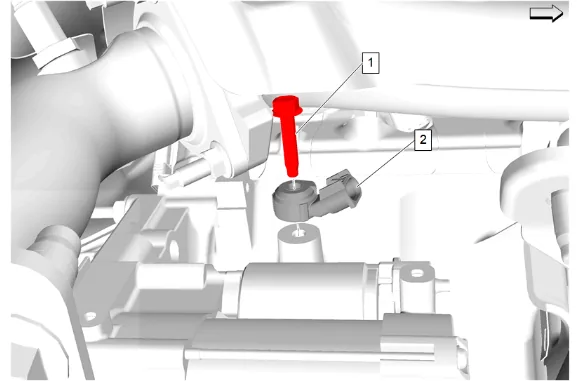

Knock Sensor 2 Replacement — figure 3
Knock Sensor 2 Replacement — figure 3

  1. Knock Sensor Bolt (1) » Remove

  2. Knock Sensor (2) » Remove Installation Procedure

  3. Knock Sensor (2) » Install

  1. Knock Sensor Bolt (1) » Install and tighten — Fastener Specifications
  2. Connect the knock sensor electrical connector.

  1. Starter Heat Shield (2) » Install

  2. Starter Heat Shield Bolt (1) » Install and tighten — Fastener Specifications

  3. Starter Heat Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

  4. Lower the vehicle.
