Automatic Transmission Case Hole Plug Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5112487

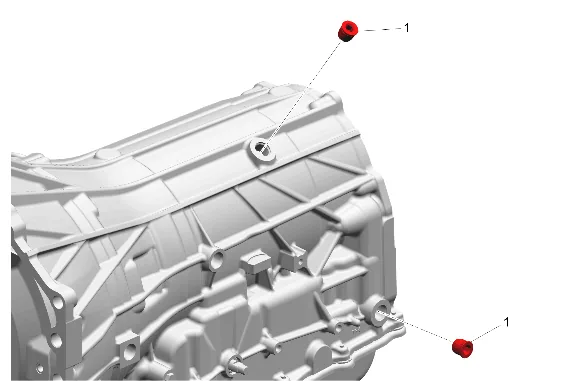

Automatic Transmission Case Hole Plug Removal — figure 1

Automatic Transmission Case Hole Plug (1) » Remove [2x]

Last updated: Aug 7, 2026
