Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side Removal Procedure

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 1

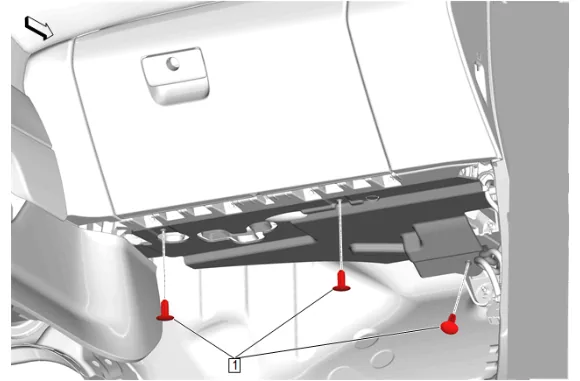

1. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 2

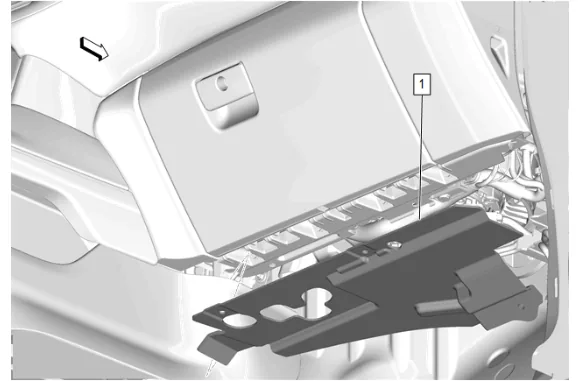

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove Installation Procedure

3. Instrument Panel Lower Trim Panel Insulator (1) » Install

4. Instrument Panel Lower Insulator Retainer (1) » Install [3x]
