Passenger Compartment Air Filter Replacement

Removal Procedure

Passenger Compartment Air Filter Replacement — figure 1

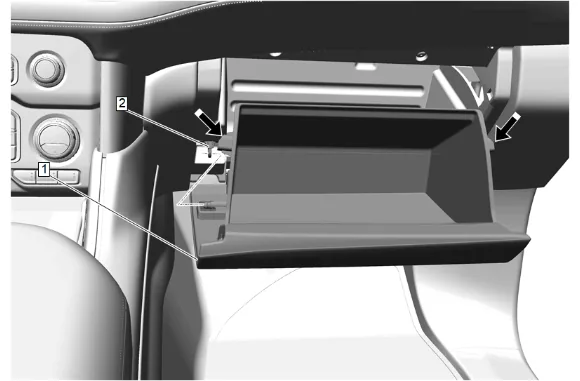

1. Open the instrument panel compartment door. (1)
2. Disconnect the instrument panel compartment door dampener (2) from the instrument panel compartment door (1) by squeezing the detents on door.
3. Squeeze the sides of the instrument panel compartment door and lower the instrument panel compartment door past the stops indicated by the arrows.

Passenger Compartment Air Filter Replacement — figure 2

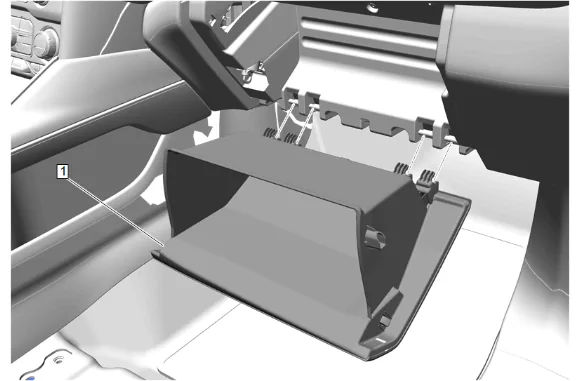

4. Instrument Panel Compartment Door (1) » Remove

Passenger Compartment Air Filter Replacement — figure 3

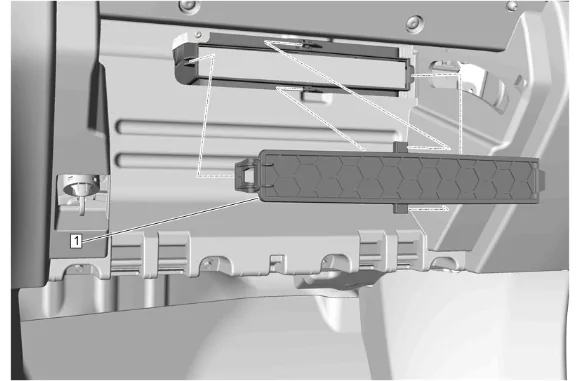

5. Passenger Compartment Air Filter Housing Cover (1) » Remove

Passenger Compartment Air Filter Replacement — figure 4

6. Passenger Compartment Air Filter (1) » Remove Installation Procedure

7. Passenger Compartment Air Filter (1) » Install

8. Passenger Compartment Air Filter Housing Cover (1) » Install

9. Instrument Panel Compartment Door (1) » Install

10. Squeeze the sides of the instrument panel compartment door and move the instrument panel compartment door stops at the arrows into the channels.

11. Connect the instrument panel compartment door dampener (2) onto the instrument panel compartment door (1).

12. Close the instrument panel compartment door. (1)
