Manual Shift Shaft Replacement (without LM2)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5608473 Single Use Fasteners and Components Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal Automatic Transmission Auxiliary Fluid Pump Seal Automatic Transmission Fluid Filter Bolt [2x] Automatic Transmission Fluid Pump Seal [2x] Control Valve Solenoid Body Bolt [3x] Exhaust System Seal - Left Side Exhaust System Seal - Right Side Manual Shift Shaft Pin Removal Procedure

Manual Shift Shaft Replacement (without LM2) — figure 1

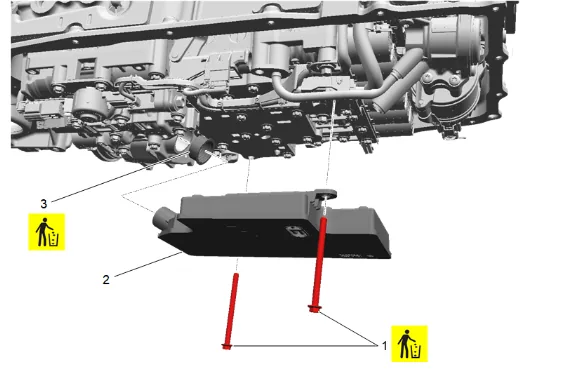

1. Automatic Transmission Fluid Filter (2) » Remove — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

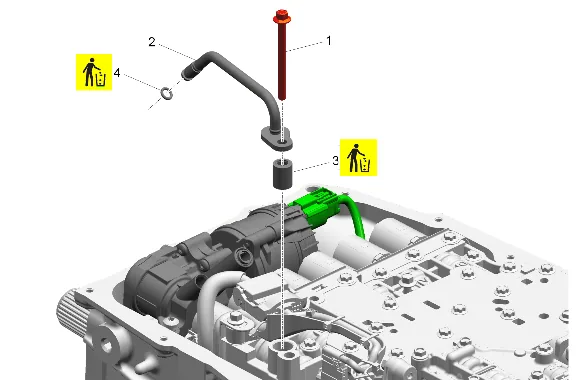

Manual Shift Shaft Replacement (without LM2) — figure 2

2. Control Valve Upper Body Bolt (1) » Remove
3. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (2) » Remove
4. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (3) » Remove and DISCARD
5. Automatic Transmission Auxiliary Fluid Pump Seal (4) » Remove and DISCARD

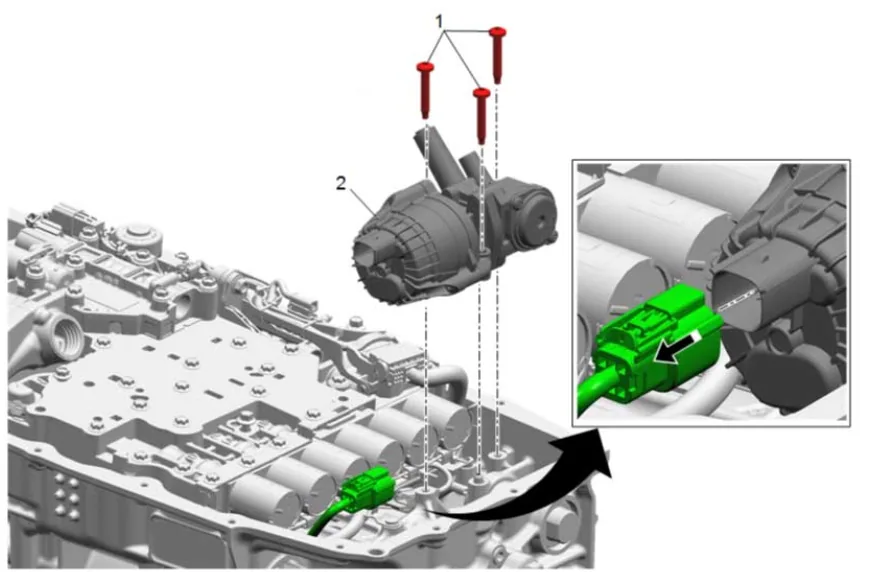

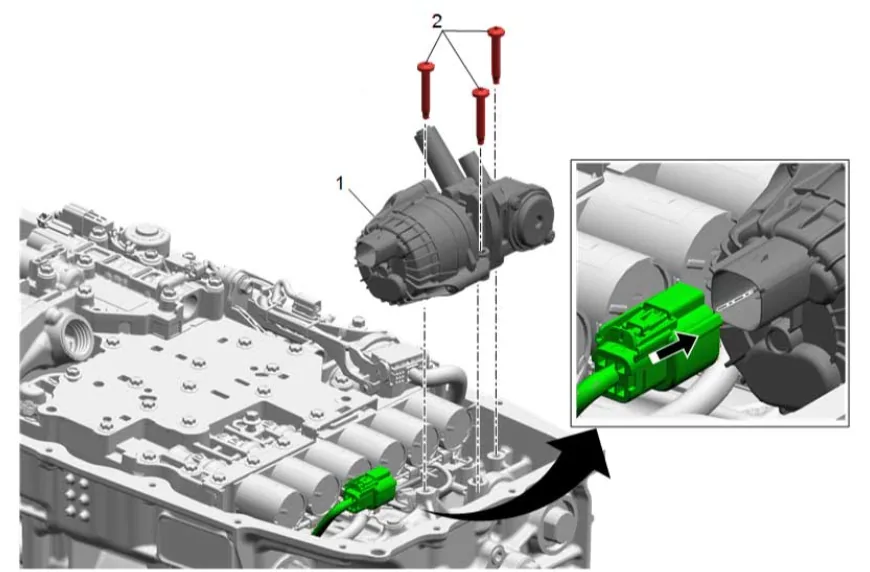

Manual Shift Shaft Replacement (without LM2) — figure 3

6. Automatic Transmission Auxiliary Fluid Pump Bolt (1) » Remove [3x]
7. Disconnect the electrical connector.
8. Automatic Transmission Auxiliary Fluid Pump (2) » Remove

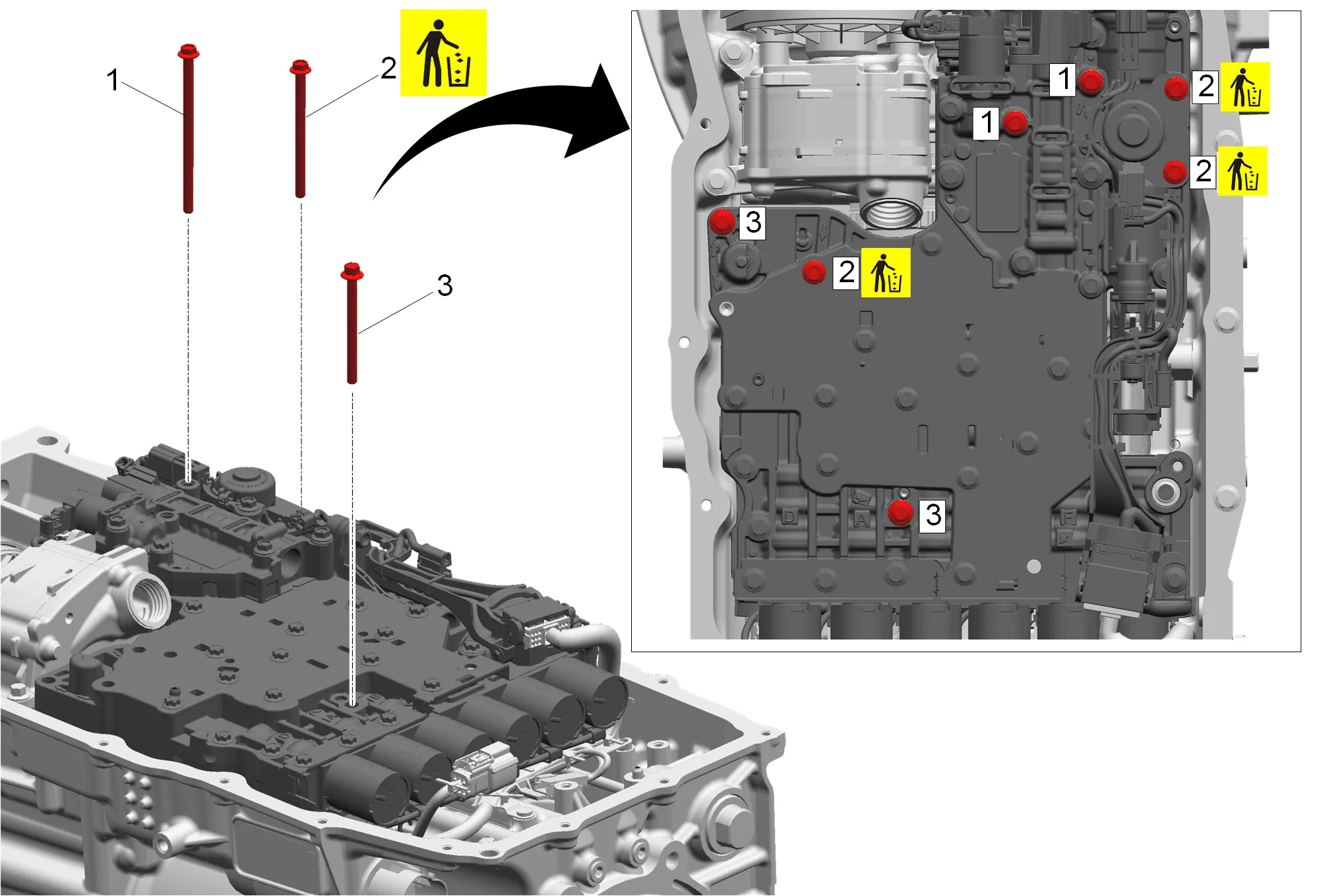

Manual Shift Shaft Replacement (without LM2) — figure 4

Note

The control valve solenoid body bolts are marked by arrows in the valve body casting.

9. Control Valve Solenoid Body Bolt (1) » Remove [2x]
10. Control Valve Solenoid Body Bolt (2) » Remove and DISCARD [3x]
11. Control Valve Solenoid Body Bolt (3) » Remove [2x]

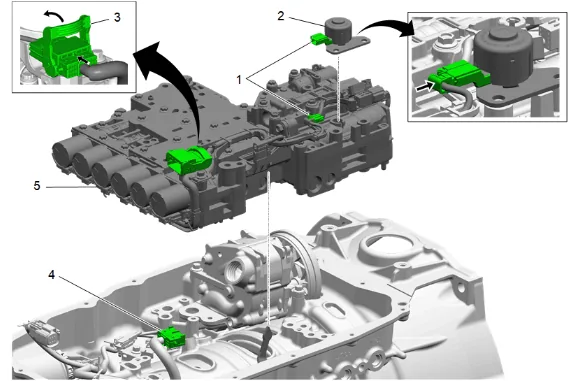

Manual Shift Shaft Replacement (without LM2) — figure 5

12. Disconnect the park inhibitor solenoid electrical connector (1).
13. Park Inhibitor Solenoid (2) » Remove
14. Unlock the main control wiring harness connector latch (3).
15. Disconnect the transmission wiring harness (4).

Note

Do not disassemble the control valve body assembly. The internal parts are NOT serviceable.

16. Control Valve Body Assembly (5) » Remove

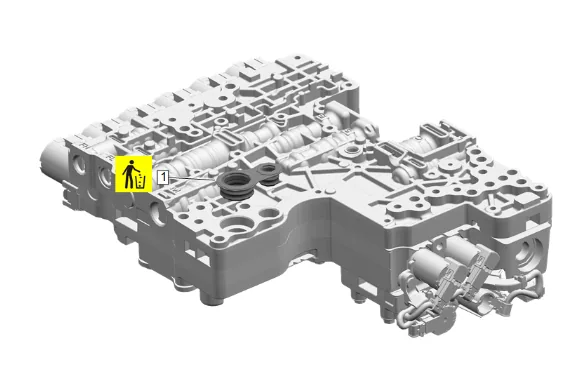

Manual Shift Shaft Replacement (without LM2) — figure 6

17. Automatic Transmission Fluid Pump Seal (1) » Remove and DISCARD

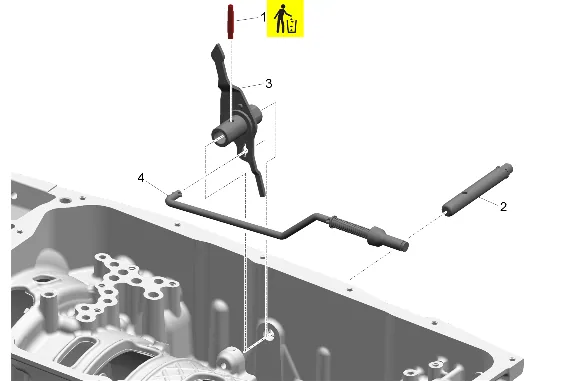

Manual Shift Shaft Replacement (without LM2) — figure 7

18. Manual Shift Shaft Pin (1) » Remove and DISCARD

Note

Clean the area around the shift shaft prior to removal.

19. Manual Shift Shaft (2) » Remove
20. Park Release Lever (3) » Remove
21. Park Pawl Actuator Assembly (4) » Remove Installation Procedure

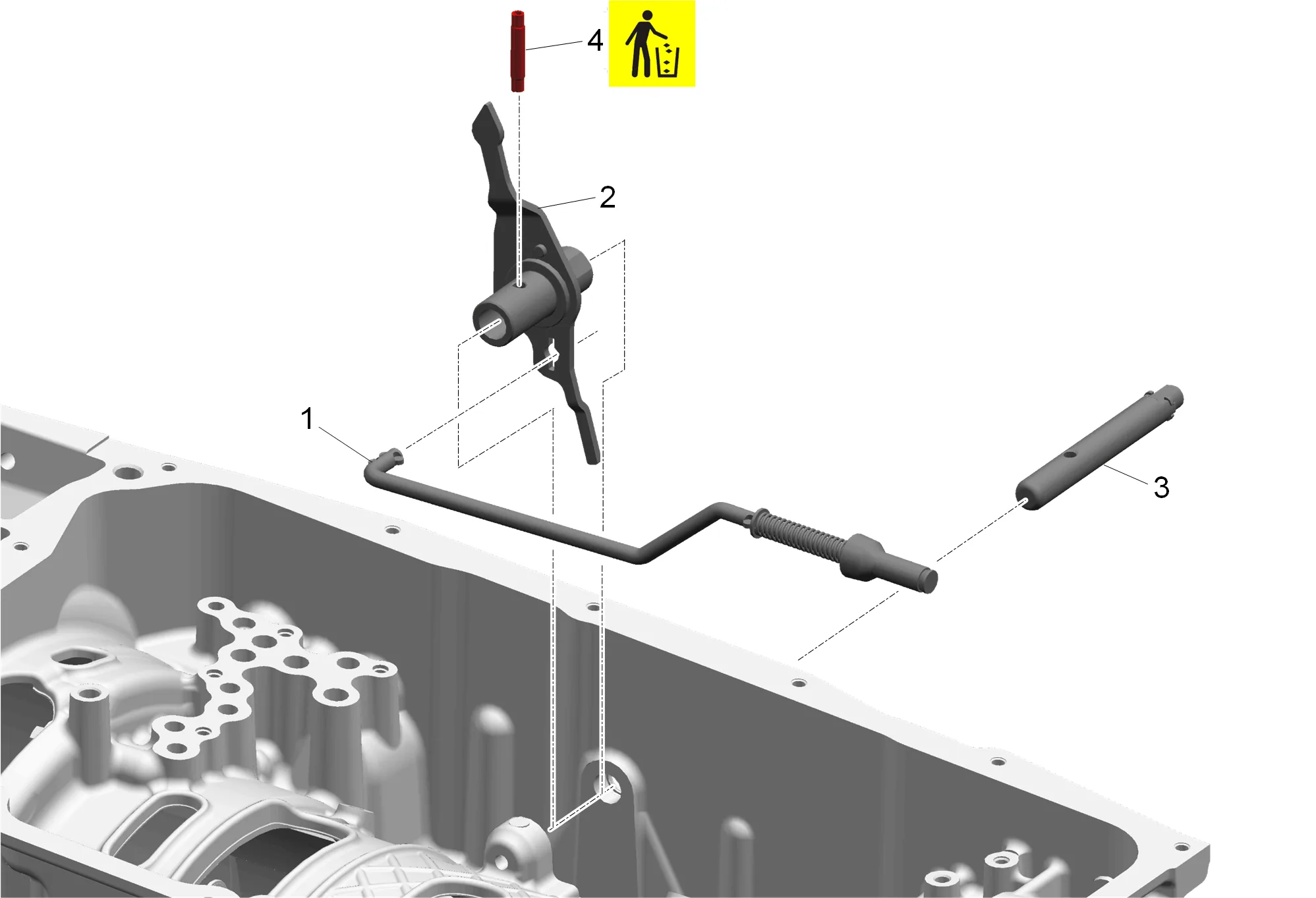

Manual Shift Shaft Replacement (without LM2) — figure 8

1. Park Pawl Actuator Assembly (1) » Install
2. Park Release Lever (2) » Install
3. Manual Shift Shaft (3) » Install

Note

Install the NEW manual shift shaft pin so equal amounts stick out from either side of the manual shaft.

4. Manual Shift Shaft Pin (4) » Install NEW

5. Automatic Transmission Fluid Pump Seal (1) » Install NEW

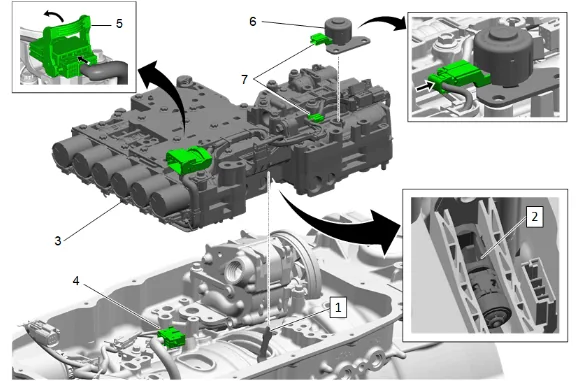

Manual Shift Shaft Replacement (without LM2) — figure 9

Caution

The Park Pawl Actuator Lever must be in the park position, fully forward position, and aligned with the slot in the piston servo prior to lowering the Control Valve Assembly into place. Contact between the switch housing or magnet carrier and the end of the Park Pawl Actuator Lever during installation can damage these components and lead to failure. This damage may not be immediately apparent and may occur during subsequent vehicle operation.

Note

Ensure the automatic transmission fluid pump seal is in the control valve body.

Note

The piston servo opening (2) must be positioned correctly as shown. Use appropriate tool to position opening if necessary.

6. Place the park pawl actuator (1) in the park position.
7. Carefully place the control valve body assembly (3) in the transmission ensuring park pawl actuator lever (1) aligns inside the piston servo opening (2).
8. Control Valve Body Assembly (3) » Install

Note

Ensure the wiring harness is not pinched after valve body installation.

9. Connect the main control wiring harness connector (4) then lock the connector latch (5).
10. Park Inhibitor Solenoid (6) » Install
11. Connect the Park Inhibitor Solenoid connector (7).

Note

Allow bolt holes to dry before installing bolts.

12. Clean the bolt holes and ensure they are free from old sealant.

Caution

Refer to Fastener Caution.

13. Control Valve Solenoid Body Bolt (1) » Install and tighten in sequence [2x] — Fastener Specifications

Caution

Refer to Torque-to-Yield Fastener Caution.

Note

The bolts are marked by arrows in the valve body casting.

14. Control Valve Solenoid Body Bolt (2) » Install NEW and tighten in sequence [3x] — Fastener Specifications
15. Control Valve Solenoid Body Bolt (3) » Install and tighten in sequence [2x] — Fastener Specifications

Manual Shift Shaft Replacement (without LM2) — figure 10

16. Automatic Transmission Auxiliary Fluid Pump (1) » Install
17. Connect the electrical connector.
18. Automatic Transmission Auxiliary Fluid Pump Bolt (2) » Install and tighten [3x] — Fastener Specifications

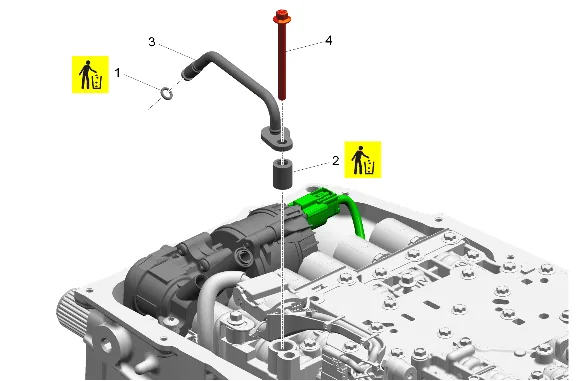

Manual Shift Shaft Replacement (without LM2) — figure 11

19. Automatic Transmission Auxiliary Fluid Pump Seal (1) » Install NEW

20. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (2) » Install NEW

21. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (3) » Install

22. Control Valve Upper Body Bolt (4) » Install and tighten — Fastener Specifications

23. Automatic Transmission Fluid Filter (2) » Install — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement
