Blower Motor Replacement

Removal Procedure

Blower Motor Replacement — figure 1

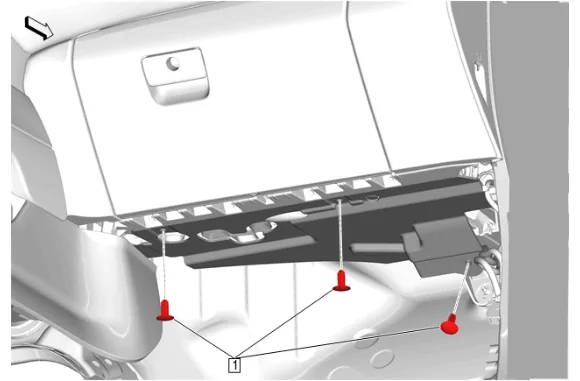

1. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

Blower Motor Replacement — figure 2

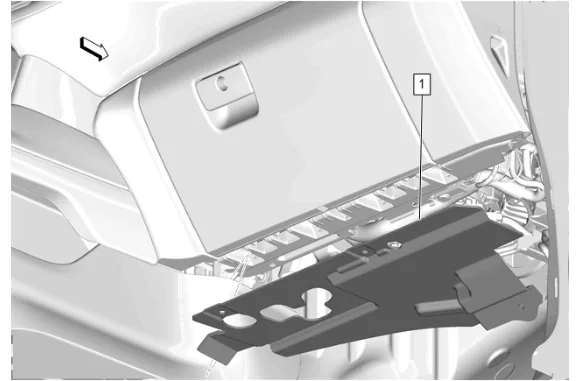

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

Blower Motor Replacement — figure 3

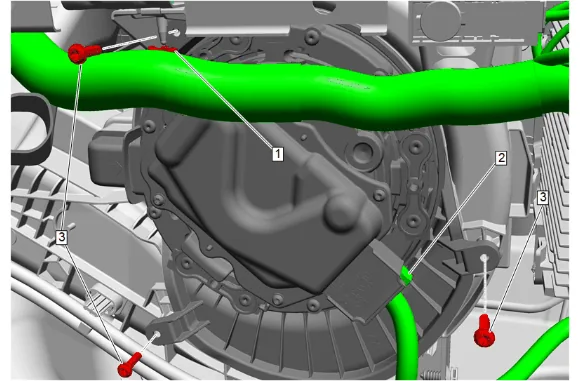

3. Release the wiring harness retainer (1) and position the electrical wiring harness out of the way.
4. Disconnect the electrical connector. (2)
5. Heater and Air Conditioning Evaporator and Blower Module Bolt (3) » Remove [3x]

Blower Motor Replacement — figure 4

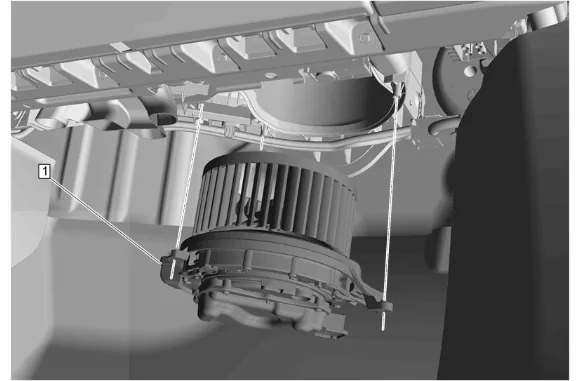

6. Blower Motor (1) » Remove Installation Procedure

7. Blower Motor (1) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning Evaporator and Blower Module Bolt (3) » Install and tighten [3x] — Fastener Specifications

3. Connect the electrical connector. (2)

4. Return the electrical wiring harness to original routing and install the wiring harness retainer (1).

5. Instrument Panel Lower Trim Panel Insulator (1) » Install

6. Instrument Panel Lower Insulator Retainer (1) » Install [3x]
