Hood Rear Outer Air Inlet Seal Replacement

Removal Procedure

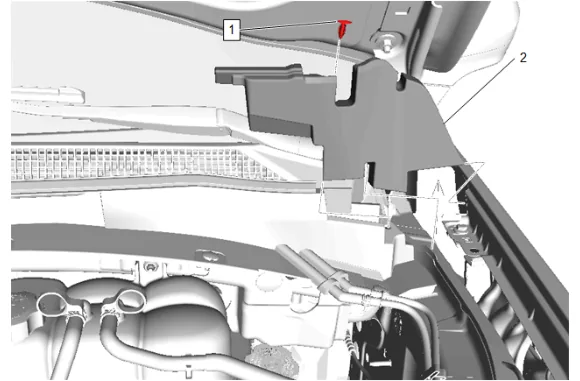

Hood Rear Outer Air Inlet Seal Replacement — figure 1

1. Air Inlet Grille Panel Retainer (1) » Remove

2. Hood Rear Outer Air Inlet Seal (2) » Remove Installation Procedure

3. Hood Rear Outer Air Inlet Seal (2) » Install

4. Air Inlet Grille Panel Retainer (1) » Install
