Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent)

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) Single Use Fasteners and Components Tie Strap [4x] Removal Procedure

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 1
Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 1
  1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

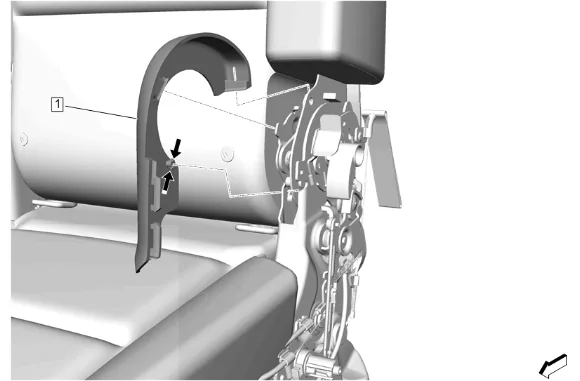

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 2
Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 2
  1. Depress the retaining tab while pulling the rear seat hinge finish cover (1) inward then upward to release from the rear seat hinge.
  2. Rear Seat Hinge Finish Cover - Outboard (1) » Remove

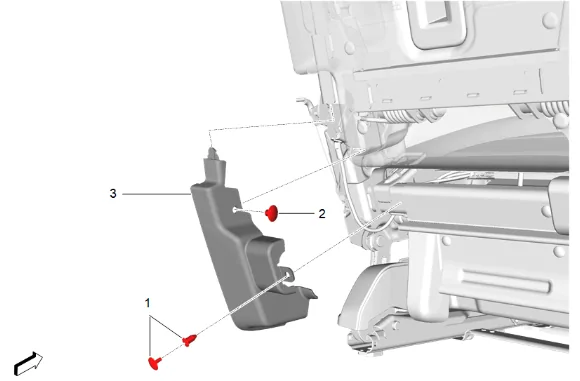

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 3
Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 3
  1. Rear Seat Riser Finish Cover Retainer (1) » Remove
  2. Rear Seat Back Cover Retainer (2) » Remove
  3. Rear Seat Recliner Inner Finish Cover (3) » Remove

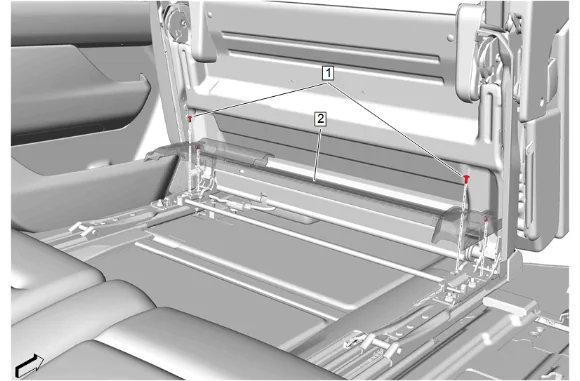

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 4
Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 4
  1. Place the rear seat in the fold and tumble position.
  2. Release the wiring harness retainers as necessary.
  3. Front Seat Bolt (1) » Remove [2x]
  4. Using a flat-bladed plastic trim tool, release the retaining clips.
  5. Rear Seat Track Finish Cover (2) » Remove

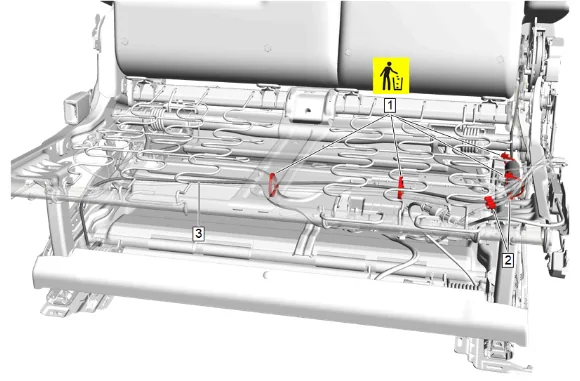

Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 5
Rear Seat Latch Cable Replacement - Track Release Easy Entry (60 Percent) — figure 5

  1. Using a suitable tool, release the seat cable retaining features as necessary.

  2. Release the cable ends from the seat frame.

  3. Return the rear seat to the original position.

  4. Tie Strap (1) » Remove and DISCARD [4x]

  5. If equipped, release the rear seat cable from the rear seat cable retainers (2).

  6. Rear Seat Latch Cable - Track Release Easy Entry (3) » Remove Installation Procedure

  7. Rear Seat Latch Cable - Track Release Easy Entry (3) » Install

  8. If equipped, install the rear seat cable into the rear seat cable retainers (2).

  9. Tie Strap (1) » Install NEW [4x]

  10. Place the rear seat in the fold and tumble position.

  11. Install the cable ends into the seat frame.

  12. Secure the seat cable retaining features as necessary.

  13. Rear Seat Track Finish Cover (2) » Install

  1. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the wiring harness retainers.

  3. Return the rear seat to the original position.

  4. Rear Seat Recliner Inner Finish Cover (3) » Install

  5. Rear Seat Back Cover Retainer (2) » Install

  6. Rear Seat Riser Finish Cover Retainer (1) » Install

  7. Rear Seat Hinge Finish Cover - Outboard (1) » Install

  8. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
