Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH)

Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) Removal Procedure

Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 1
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Lower Applique (1) » Remove

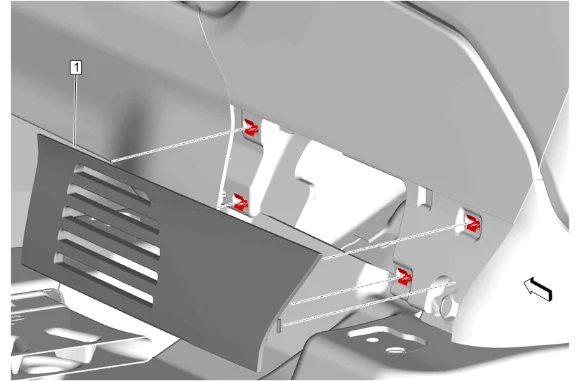

Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 2
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Applique (1) » Remove

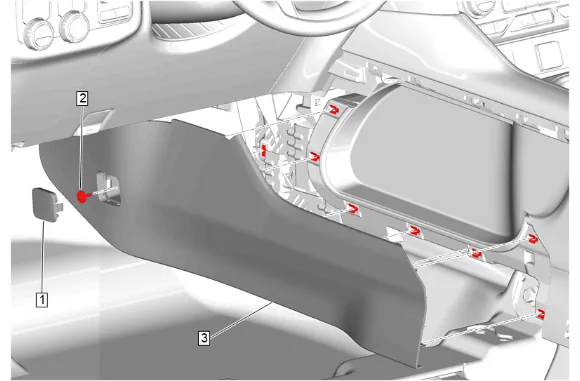

Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 3
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 3
  1. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
  2. Front Floor Console Extension Bolt (2) » Remove
  3. Move the front seat to access the retainers.
  4. Front Floor Console Extension Panel (3) » Remove
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 4
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Bolt Access Hole Cover (1) » Remove
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 5
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 5
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Rear Trim Lower Panel (1) » Remove

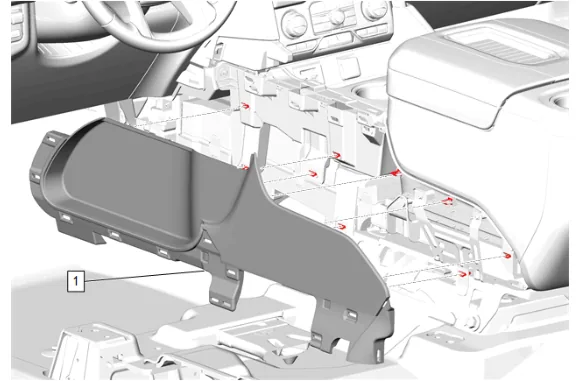

Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 6
Front Floor Rear Console Side Trim Panel Replacement - Left Side (DCH) — figure 6

  1. Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Front Floor Rear Console Side Trim Panel (1) » Remove Installation Procedure

  3. Front Floor Rear Console Side Trim Panel (1) » Install

  4. Front Floor Console Rear Trim Lower Panel (1) » Install

  5. Front Floor Console Bolt Access Hole Cover (1) » Install

  6. Front Floor Console Extension Panel (3) » Install

  1. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

  2. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

  3. Front Floor Console Applique (1) » Install

  4. Front Floor Console Lower Applique (1) » Install

  5. Return the seat to its original position.
