Manual Shift Shaft Seal Installation

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5118153 Single Use Fasteners and Components Manual Shift Shaft Seal Special Tools DT-47770 Seal Installer Equivalent regional tools: Special Tools

Manual Shift Shaft Seal Installation — figure 1

Caution

When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result.

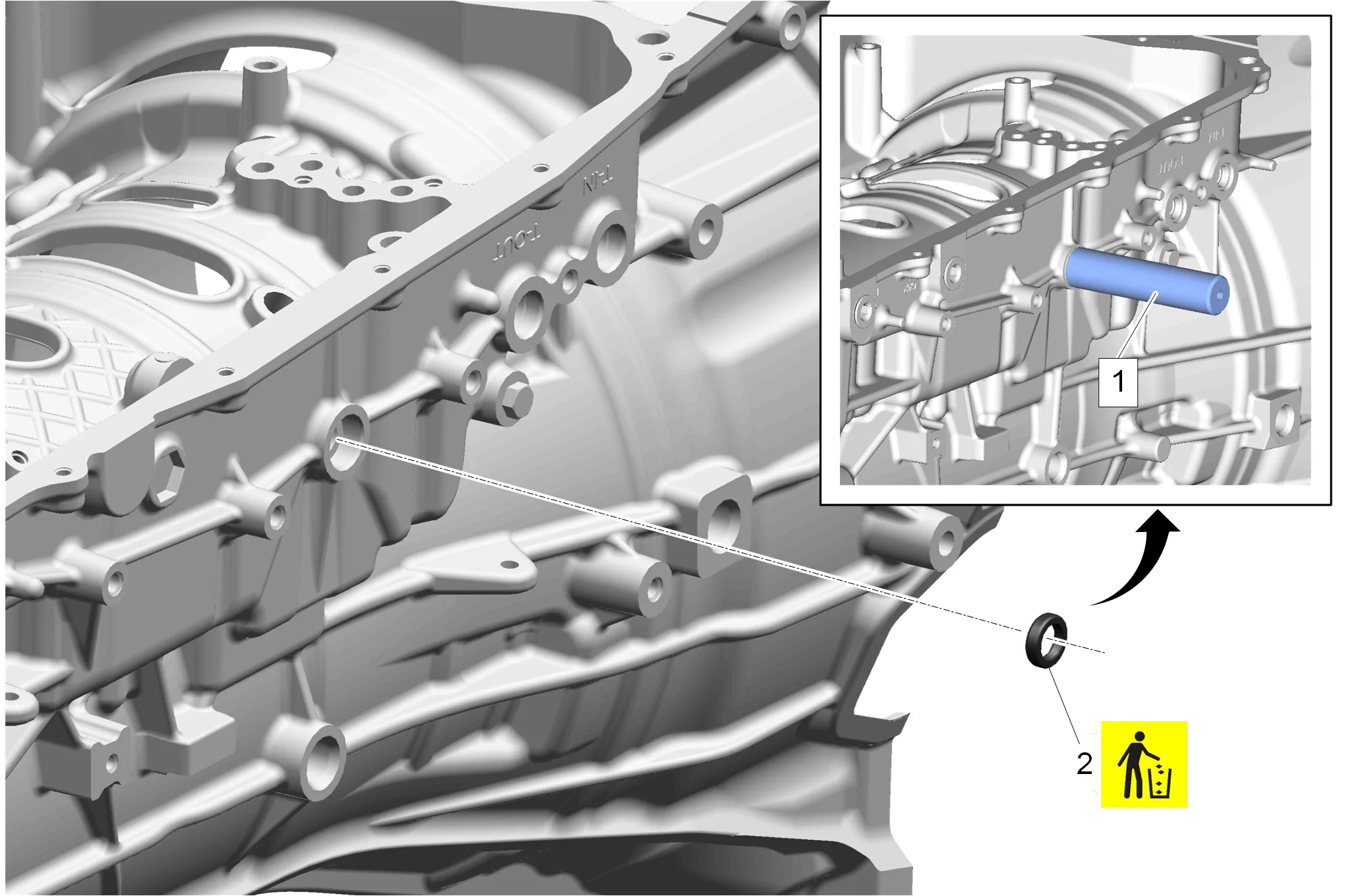

1. Use the DT-47770 Seal Installer (1) to install the Manual Shift Shaft Seal (2).
2. Manual Shift Shaft Seal (2) » Install NEW
