Rear Seat Frame Rear Finish Cover Replacement

Removal Procedure

Rear Seat Frame Rear Finish Cover Replacement — figure 1

1. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
2. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

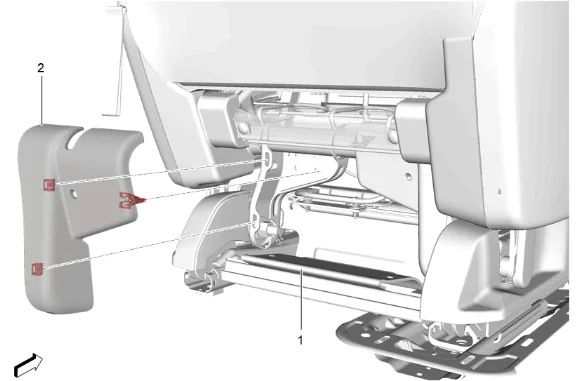

Rear Seat Frame Rear Finish Cover Replacement — figure 2

3. Reposition the rear of the rear seat cushion cover and pad as necessary.

4. Rear Seat Cushion Trim Panel (1) » Reposition

5. Using a flat-bladed plastic trim tool, release the retaining clips.

6. Rear Seat Frame Rear Finish Cover (2) » Remove Installation Procedure

7. Rear Seat Frame Rear Finish Cover (2) » Install

8. Rear Seat Cushion Trim Panel (1) » Install

9. Position the rear of the rear seat cushion cover and pad to the original location.

10. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

11. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]
