Front Seat Adjuster Switch Replacement

Removal Procedure

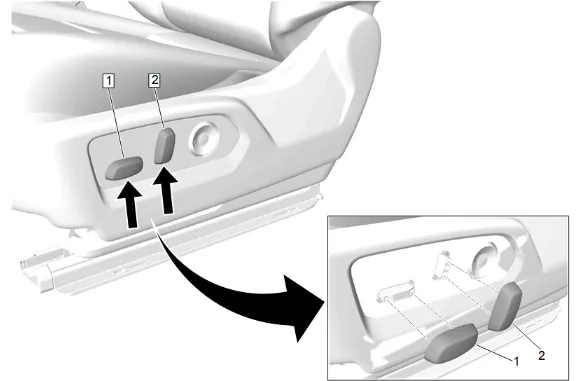

Front Seat Adjuster Switch Replacement — figure 1

Caution

Improper removal of the knob may result in damage to the switch.

1. Insert a suitable plastic trim tool under the lower edge of the knobs, and pry outwards to remove.
2. Front Seat Adjuster Knob (1) » Remove
3. Front Seat Recliner Knob (2) » Remove

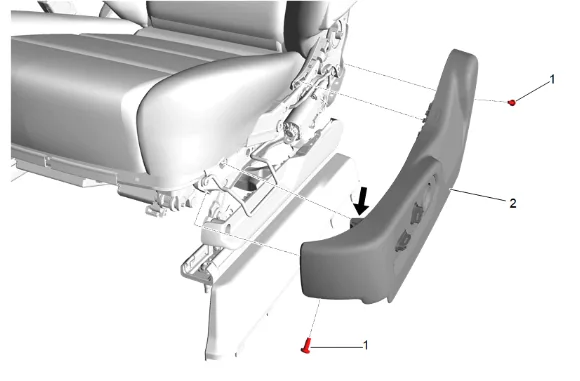

Front Seat Adjuster Switch Replacement — figure 2

4. Reposition the seat as necessary to access the bolts.
5. Front Seat Bolt (1) » Remove [2x]
6. Squeeze the front seat cushion outer finish cover retainer to release it from the seat frame.
7. Lift the front seat cushion outer finish cover (2) to release it from the front seat cushion cover wire retainer.
8. Disconnect the electrical connectors and release the wiring harness retainers as necessary.

Caution

The adjuster switch bezel is attached to both the seat frame and the outer finish cover. Use care when removing the outer finish cover to avoid breaking the retaining tabs.

9. Front Seat Cushion Outer Finish Cover (2) » Remove

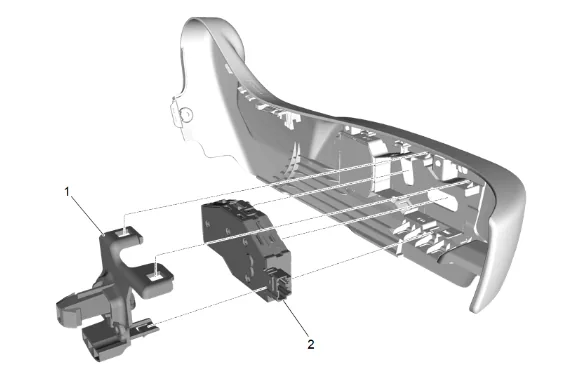

Front Seat Adjuster Switch Replacement — figure 3

10. Release the retaining tabs that secure the finish cover retainer (1) to the adjuster switch assembly (2).

11. Front Seat Adjuster Finish Cover Retainer (1) » Remove

12. Release the retaining tabs that secure the adjuster switch assembly (2) to the outer finish cover.

13. Front Seat Adjuster Switch (2) » Remove Installation Procedure

14. Front Seat Adjuster Switch (2) » Install

15. Front Seat Adjuster Finish Cover Retainer (1) » Install

16. Wiring Harness Retainer » Install

17. Connect the electrical connectors.

18. Front Seat Cushion Outer Finish Cover (2) » Install

Caution

Refer to Fastener Caution.

6. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Return the seat to its original position.

8. Front Seat Recliner Switch Knob (2) » Install

9. Front Seat Adjuster Switch Knob (1) » Install
