Front Seat Back Upper Cover Replacement

Removal Procedure

Front Seat Back Upper Cover Replacement — figure 1

1. Raise the front seat head restraint (3) to gain access to the front seat head restraint guide bezels (1).
2. Twist the front seat head restraint guide bezels (1) counter clockwise while lifting the bezels upward onto the head restraint adjuster rod.
3. Using a suitable pointed or flat bladed tool, push the front seat head restraint guide clip (2) rearward while pulling upward on the front seat head restraint (3).
4. Front Seat Head Restraint (3) » Remove

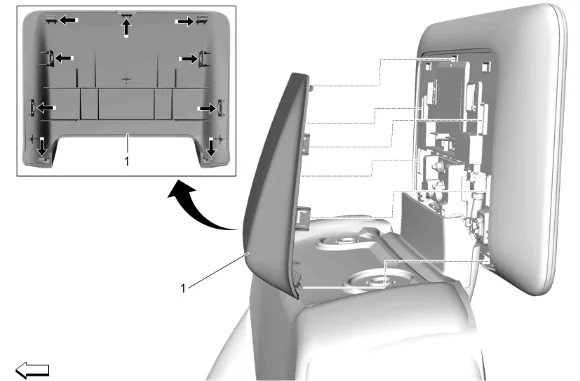

Front Seat Back Upper Cover Replacement — figure 2

5. Using a suitable plastic trim tool, release the retaining tabs on the lower portion of the front seat back upper cover (1) then pull outwards and down to release the remaining retaining tabs.

6. Front Seat Back Upper Cover (1) » Remove Installation Procedure

7. Front Seat Back Upper Cover (1) » Install

8. Front Seat Head Restraint Guide Bezel (1) » Install [2x]

9. Front Seat Head Restraint (3) » Install
