Automatic Level Control Air Compressor Tube Replacement - Exhaust

Automatic Level Control Air Compressor Tube Replacement - Exhaust Removal Procedure

1. Remove the spare tire and wheel assembly.

Note

Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h(10 MPH).

2. Raise and support the vehicle. Lifting and Jacking the Vehicle

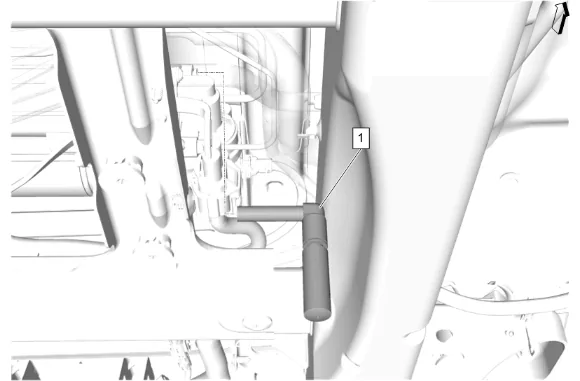

Automatic Level Control Air Compressor Tube Replacement - Exhaust — figure 1

3. Remove the automatic level control air compressor tube (1). Installation Procedure

4. Install the automatic level control air compressor tube (1).

5. Remove the support and lower the vehicle.

6. Install the spare tire and wheel assembly.
