Tahoe / Yukon Service Manual

Assist Step Replacement (BVE - Assist Step)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

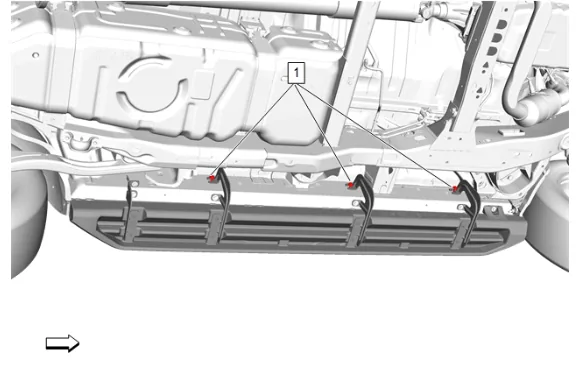

Assist Step Replacement (BVE - Assist Step) — figure 1
Assist Step Replacement (BVE - Assist Step) — figure 1
  1. Assist Step Bolt (1) @ Rocker Panel » Loosen [3x]

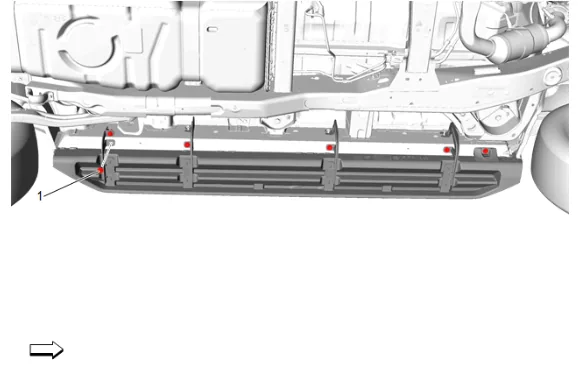

Assist Step Replacement (BVE - Assist Step) — figure 2
Assist Step Replacement (BVE - Assist Step) — figure 2
  1. Assist Step Bolt (1) @ Rocker Panel » Remove [6x]

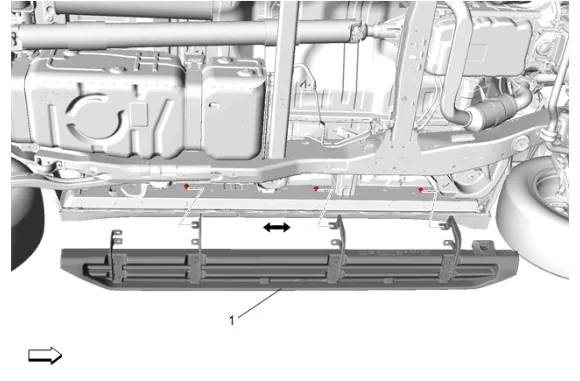

Assist Step Replacement (BVE - Assist Step) — figure 3
Assist Step Replacement (BVE - Assist Step) — figure 3
  1. Slide the assist step (1), out from under the loosened bolts, and remove.
Assist Step Replacement (BVE - Assist Step) — figure 4
Assist Step Replacement (BVE - Assist Step) — figure 4

  1. Assist Step Bracket Bolt (1) » Remove [8x]

  2. Assist Step (2) » Remove Installation Procedure

  3. Assist Step (2) » Install

  1. Assist Step Bracket Bolt (1) » Install and tighten [8x] — Fastener Specifications

  2. Install the assist step (1) under the loosened bolts.

  3. Assist Step Bolt (1) @ Rocker Panel » Install and tighten [6x] — Fastener Specifications

  4. Assist Step Bolt (1) @ Rocker Panel » Tighten [3x] — Fastener Specifications

  5. Lower the vehicle.
