Front Side Door Window Frame Front Applique Replacement

Front Side Door Window Frame Front Applique Replacement Removal Procedure

1. Front Side Door Trim » Remove — Front Side Door Trim Removal and Installation

Front Side Door Window Frame Front Applique Replacement — figure 1

2. Use flat-bladed plastic tool to release metal retaining clip from front corner of the front side door window garnish molding  (1).
3. Pull outward starting at the front and moving slowly rearward to remove the front side door window garnish molding (1).
4. Front Side Door Window Garnish Molding (1) » Remove

Front Side Door Window Frame Front Applique Replacement — figure 2

5. Front Side Door Inner Panel Hole Plug (1) » Remove [2x]

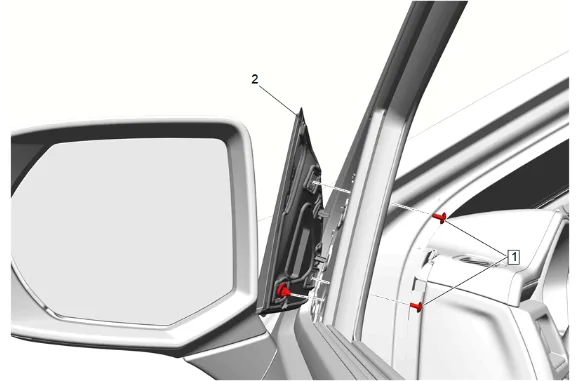

Front Side Door Window Frame Front Applique Replacement — figure 3

6. Front Side Door Window Frame Front Applique Bolt (1) » Remove [2x]

7. Front Side Door Window Frame Front Applique (2) » Remove Installation Procedure

8. Front Side Door Window Frame Front Applique (2) » Install

Caution

Refer to Fastener Caution.

2. Front Side Door Window Frame Front Applique Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Front Side Door Inner Panel Hole Plug(1) » Install [2x]

Note

Ensure that the door weatherstrip is not trapped below the window garnish molding (1) once completely installed. Reposition the weatherstrip as necessary.

4. Front Side Door Window Garnish Molding (1) » Install
5. Front Side Door Trim » Install — Front Side Door Trim Removal and Installation
