Front and Rear Brake Pipe Replacement

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Fluid Irritant Warning

Caution

Brake Fluid Effects on Paint and Electrical Components Caution Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle
3. Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation
4. Front Wheelhouse Liner - Left Side » Remove Front Wheelhouse Liner Replacement

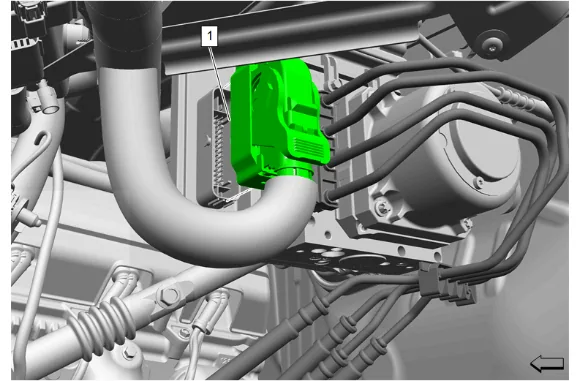

Front and Rear Brake Pipe Replacement — figure 1

5. Electrical Connector (1) @ Brake System Control Module » Disconnect

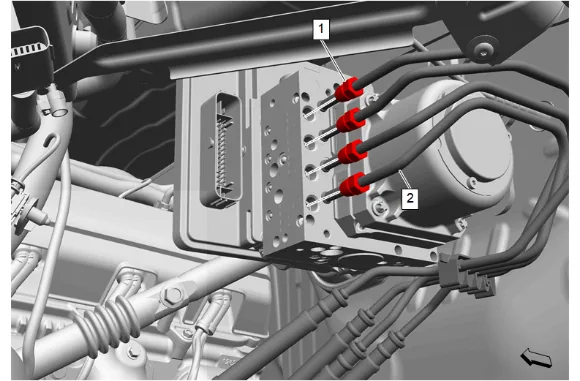

Front and Rear Brake Pipe Replacement — figure 2

6. Front and Rear Brake Pipe Nut (1) @ Brake Master Cylinder » Remove [4x]
7. Front and Rear Brake Pipe (2) @ Brake Master Cylinder » Remove
8. Plug the brake master cylinder outlets to avoid fluid loss and contamination.

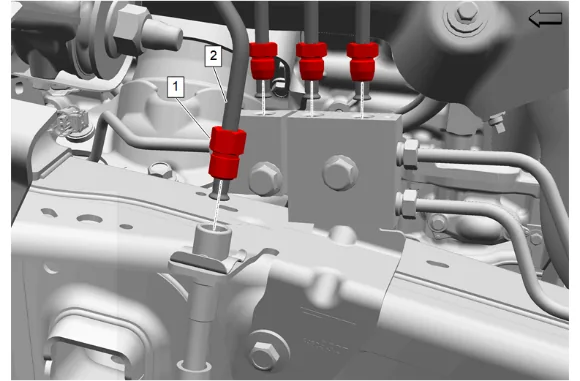

Front and Rear Brake Pipe Replacement — figure 3

9. Front and Rear Brake Pipe Nut (1) » Remove [4x]
10. Plug the front crossover brake pipe connector and rear brake pipe connector inlets to avoid fluid loss and contamination.

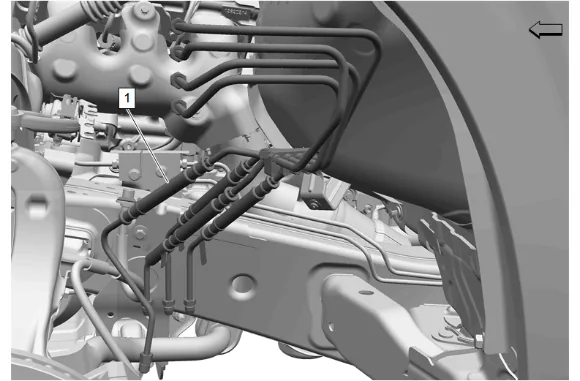

Front and Rear Brake Pipe Replacement — figure 4

11. Front and Rear Brake Pipe (1) » Remove Installation Procedure

12. Front and Rear Brake Pipe (1) » Install

13. Remove the plugs from the front crossover brake pipe connector and rear brake pipe connector inlets.

14. Front and Rear Brake Pipe (2) » Install

Caution

Fastener Caution

4. Front and Rear Brake Pipe Nut (1) » Install and tighten [4x] — Fastener Specifications

5. Remove the plugs from the brake master cylinder outlets.

6. Front and Rear Brake Pipe (2) @ Brake Master Cylinder » Install

7. Front and Rear Brake Pipe Nut (1) @ Brake Master Cylinder » Install and tighten [4x] — Fastener Specifications

8. Electrical Connector @ Brake System Control Module (1) » Connect

9. Front Wheelhouse Liner - Left Side » Install Front Wheelhouse Liner Replacement

10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

11. Bleed the brake system. Hydraulic Brake System Bleeding

12. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation

13. Remove the support and lower the vehicle.

14. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
