Upper Rear Side Door Opening Reveal Molding Replacement

Upper Rear Side Door Opening Reveal Molding Replacement Single Use Fasteners and Components Upper Rear Side Door Opening Reveal Molding Retainer Removal Procedure

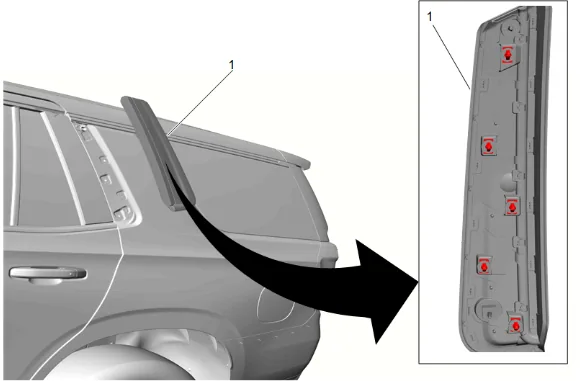

Upper Rear Side Door Opening Reveal Molding Replacement — figure 1

1. Using a trim type release tool and starting at the top forward edge gently lift and release the retainers.
2. Replace the retainers as necessary.
3. Body Side Rear Molding (1) » Remove

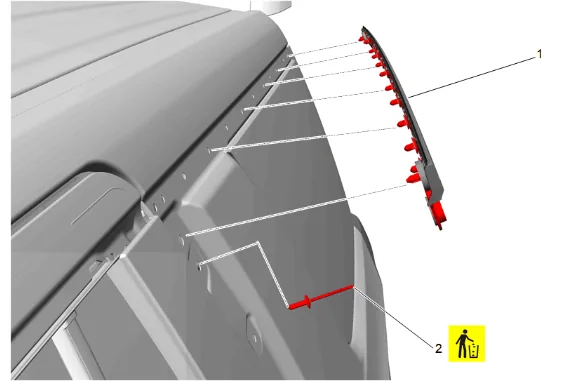

Upper Rear Side Door Opening Reveal Molding Replacement — figure 2

Warning

Refer to Eye Protection Warning.

4. Drill out the upper rear side door opening reveal molding retainer (2). Remove and DISCARD

5. Using the appropriate tool, release the Upper Rear Side Door Opening Reveal Molding (1) starting at the rear of the door.

6. Remove the Upper Rear Side Door Opening Reveal Molding (1). Installation Procedure

7. Install the Upper Rear Side Door Opening Reveal Molding (1).

8. Upper Rear Side Door Opening Reveal Molding Retainer (2) » Install NEW

9. Body Side Rear Molding (1) » Install
