Front Headlamp Replacement

Removal Procedure

Front Headlamp Replacement — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

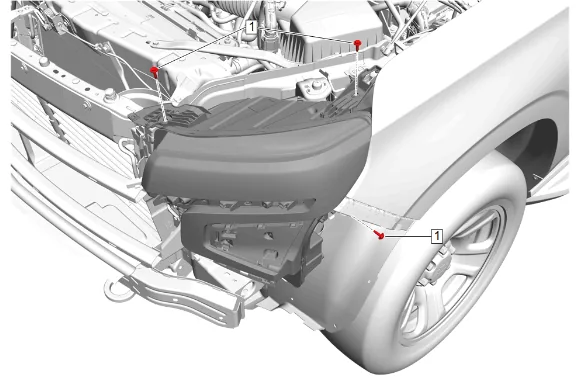

Front Headlamp Replacement — figure 2

2. Headlamp Bolt (1) » Remove [3x]

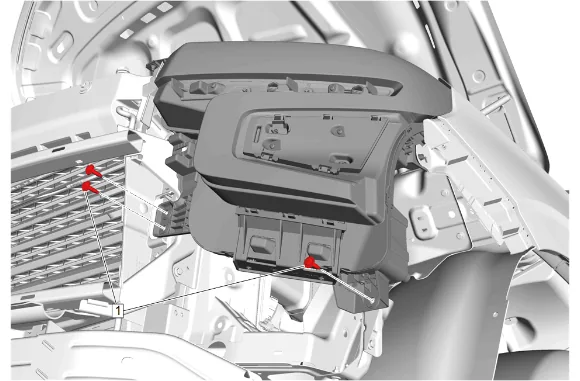

Front Headlamp Replacement — figure 3

3. Headlamp Bolt (1) » Remove [3x]

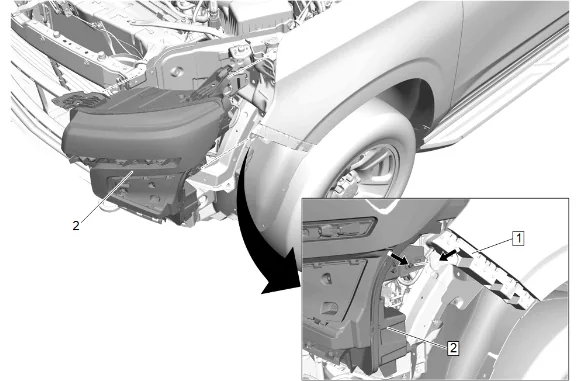

Front Headlamp Replacement — figure 4

4. Release the front headlamp guide pin from the front bumper fascia guide (1).

5. Front Headlamp (2) » Remove

6. Release the wiring harness retaining tab.

7. Disconnect all electrical connectors. Installation Procedure

8. Connect all electrical connectors.

9. Secure the wiring harness retaining tab.

10. Secure the front headlamp guide pin to the front bumper fascia guide (1).

11. Front Headlamp (2) » Install

Caution

Refer to Fastener Caution.

5. Headlamp Bolt (1) » Install and tighten [3x] — Fastener Specifications

6. Headlamp Bolt (1) » Install and tighten [3x] — Fastener Specifications

7. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation

8. After installation, aim the front headlamps. Front Headlamp Aiming
