Tahoe / Yukon Service Manual

Front Seat Cushion Center Pad Replacement

Removal Procedure

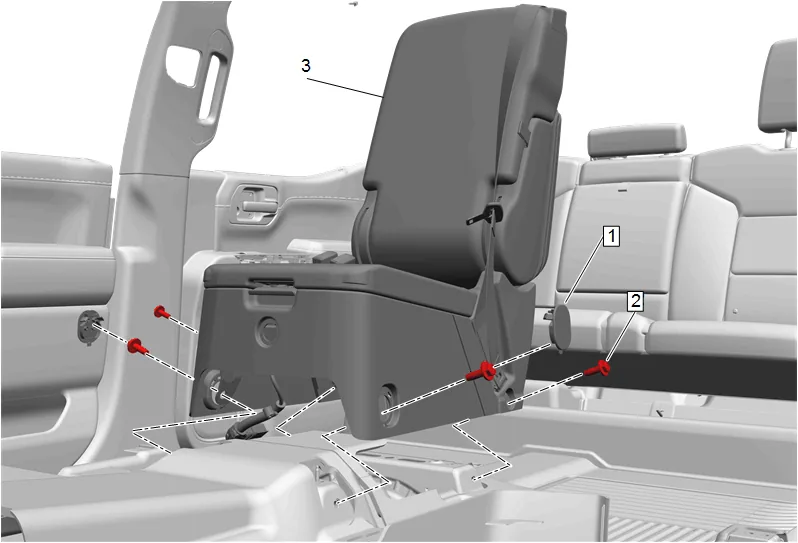

Front Seat Cushion Center Pad Replacement — figure 1
Front Seat Cushion Center Pad Replacement — figure 1
  1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation

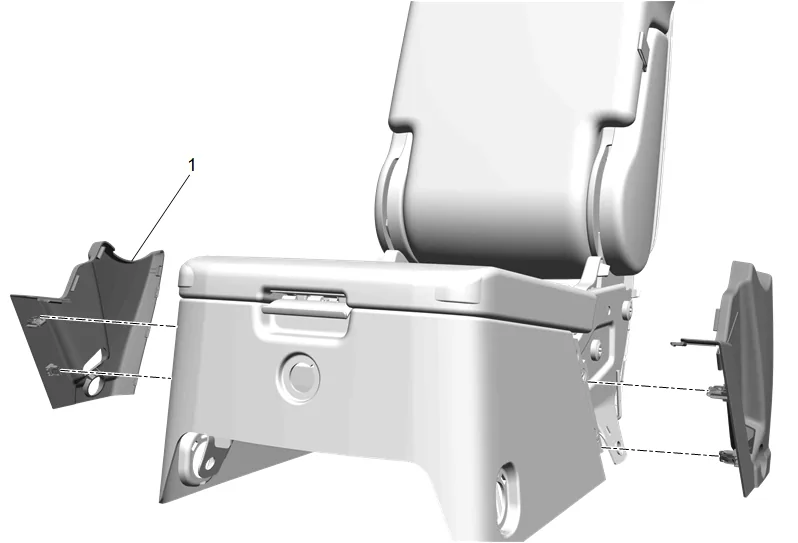

Front Seat Cushion Center Pad Replacement — figure 2
Front Seat Cushion Center Pad Replacement — figure 2
  1. Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower retaining clips.
  1. Remove and DISCARD seat belt retaining bushings.
  2. Front Seat Center Belt Buckle » Remove
  3. Front Seat Center Armrest Hinge Finish Cover - Right Side Lower (1) » Remove

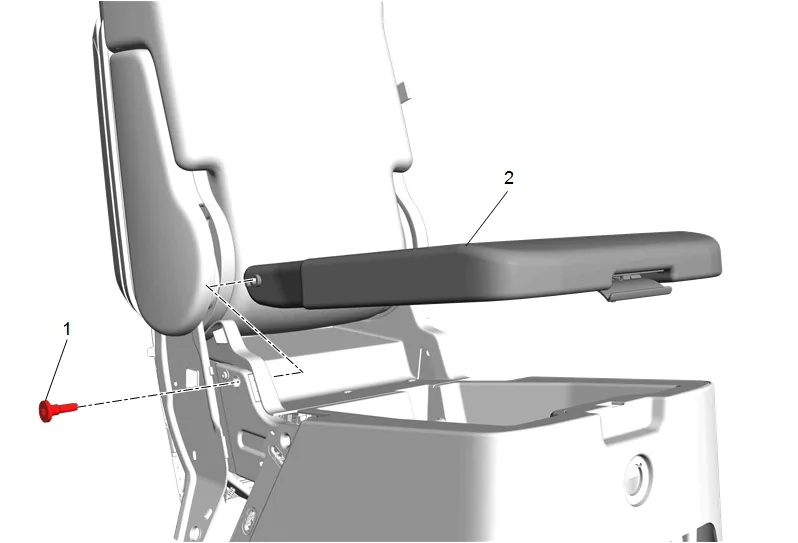

Front Seat Cushion Center Pad Replacement — figure 3
Front Seat Cushion Center Pad Replacement — figure 3

  1. Front Seat Cushion Center Pad Pivot Bolt (1) » Remove

  2. Front Seat Cushion Center Pad (2) » Remove Installation Procedure

  3. Front Seat Cushion Center Pad (2) » Install

  4. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 2.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 2.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 2.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 2.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  1. Front Seat Cushion Center Pad Pivot Bolt (1) » Install and tighten — Fastener Specifications

  2. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install

  3. Front Seat Center Belt Buckle » Install

  4. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
