Rear Seat Hinge Finish Cover Replacement - Inboard (Bucket)

Rear Seat Hinge Finish Cover Replacement - Inboard (Bucket) Removal Procedure

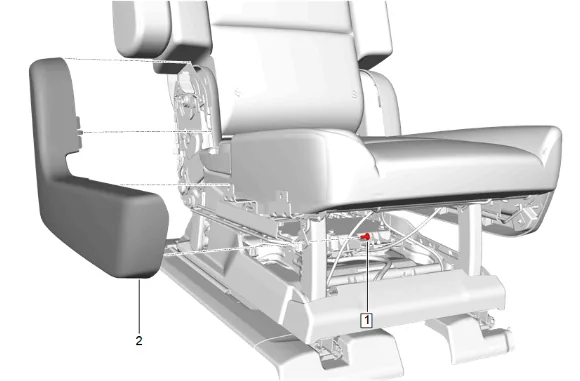

Rear Seat Hinge Finish Cover Replacement - Inboard (Bucket) — figure 1

1. Front Seat Bolt (1) » Remove
2. Using a suitable plastic trim tool, release the retaining tabs.
3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove

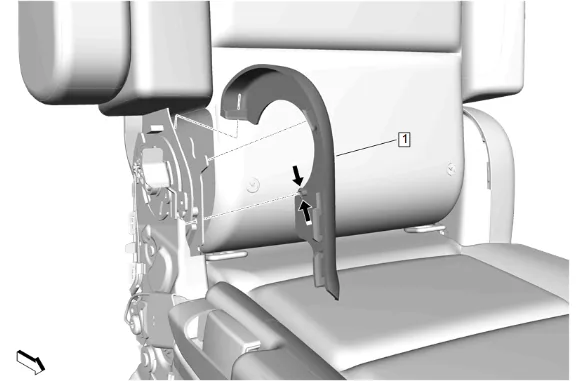

Rear Seat Hinge Finish Cover Replacement - Inboard (Bucket) — figure 2

4. Depress the retaining tab while pulling the rear seat hinge finish cover (1) inward then upward to release from the rear seat hinge.

5. Rear Seat Hinge Finish Cover - Inboard (1) » Remove Installation Procedure

6. Rear Seat Hinge Finish Cover - Inboard (1) » Install

7. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

Caution

Refer to Fastener Caution.

3. Front Seat Bolt (1) » Install and tighten — Fastener Specifications
