Tahoe / Yukon Service Manual

Front Wheel Speed Sensor Replacement - Left Side

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

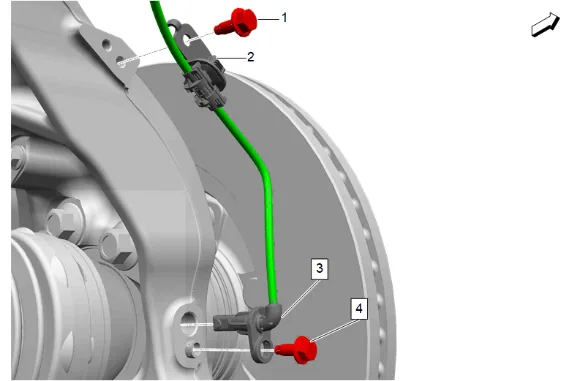

Front Wheel Speed Sensor Replacement - Left Side — figure 1
Front Wheel Speed Sensor Replacement - Left Side — figure 1
  1. Front Wheel Speed Sensor Bolt (4) » Remove
  2. Front Wheel Speed Sensor Bracket Bolt (1) » Remove
  3. Front Wheel Speed Sensor (3) » Remove
  4. Front Wheel Speed Sensor Bracket (2) » Remove

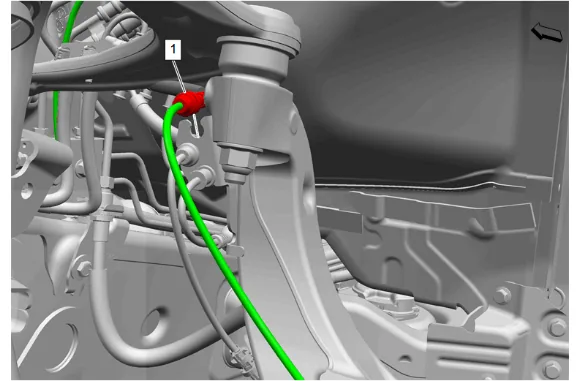

Front Wheel Speed Sensor Replacement - Left Side — figure 2
Front Wheel Speed Sensor Replacement - Left Side — figure 2
  1. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Remove

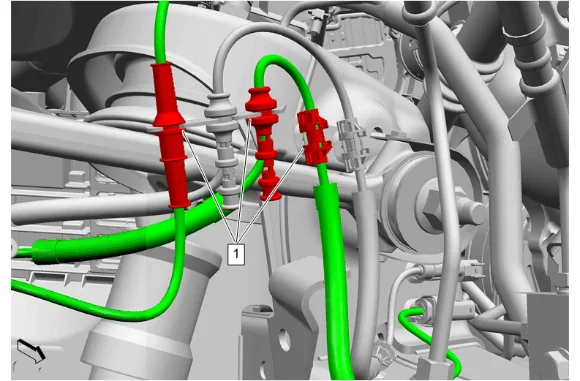

Front Wheel Speed Sensor Replacement - Left Side — figure 3
Front Wheel Speed Sensor Replacement - Left Side — figure 3
  1. { If equipped } Wiring Harness (1) @ Front Wheel Speed Sensor Bracket » Remove [3x]

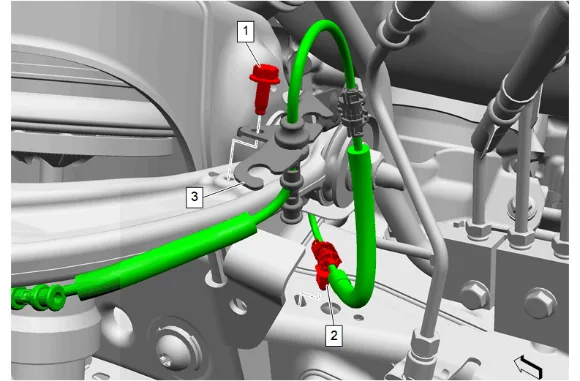

Front Wheel Speed Sensor Replacement - Left Side — figure 4
Front Wheel Speed Sensor Replacement - Left Side — figure 4
  1. Front Wheel Speed Sensor Bracket Bolt (1) » Remove
  2. Front Wheel Speed Sensor Retainer (2) » Remove
  3. Front Wheel Speed Sensor Bracket (3) » Remove
  4. Position the wheelhouse liner out of the way to gain access to the front wheel speed sensor electrical connector.

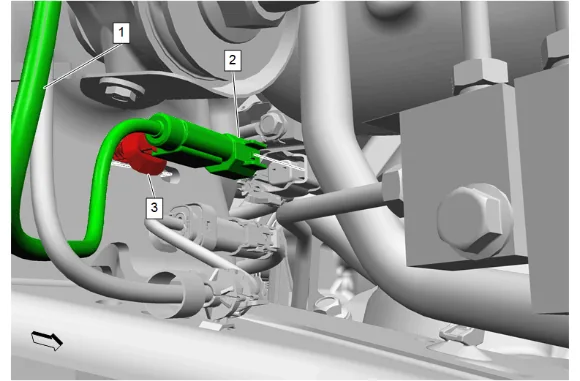

Front Wheel Speed Sensor Replacement - Left Side — figure 5
Front Wheel Speed Sensor Replacement - Left Side — figure 5

  1. Front Wheel Speed Sensor Retainer (3) » Remove

  2. Disconnect the electrical connector. (2)

  3. Front Wheel Speed Sensor Wiring Harness (1) » Remove Installation Procedure

  4. Front Wheel Speed Sensor Wiring Harness (1) » Install

  5. Connect the electrical connector. (2)

  6. Front Wheel Speed Sensor Retainer (3) » Install

  7. Front Wheel Speed Sensor Bracket (3) » Install

  8. Front Wheel Speed Sensor Retainer (2) » Install

  1. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

  1. { If equipped } Wiring Harness (1) @ Front Wheel Speed Sensor Bracket » Install [3x]

  2. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Install

  3. Front Wheel Speed Sensor Bracket (2) » Install

  4. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

  5. Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the front steering knuckle.  Adhesives, Fluids, Lubricants, and Sealers

  6. Front Wheel Speed Sensor (3) » Install

  7. Front Wheel Speed Sensor Bolt (4) » Install and tighten — Fastener Specifications

  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

  9. Remove the support and lower the vehicle.

  10. Verify the repair is complete. Diagnostic Repair Verification
