Rear Closure Hands Free Lamp Replacement

Removal Procedure

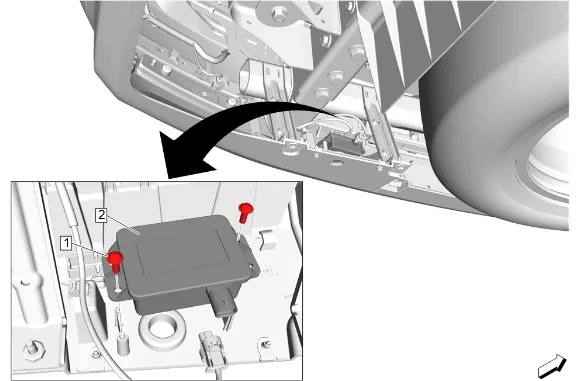

Rear Closure Hands Free Lamp Replacement — figure 1

1. Rear Closure Hands Free Module Bolt (1) » Remove [2x]

2. Rear Closure Hands Free Lamp (2) » Remove

3. Disconnect the electrical connector. Installation Procedure

4. Connect the electrical connector.

5. Rear Closure Hands Free Lamp (2) » Install

Caution

Refer to Fastener Caution.

3. Rear Closure Hands Free Module Bolt (1) » Install and tighten [2x] — Fastener Specifications
