Rear Stabilizer Shaft Insulator Replacement

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

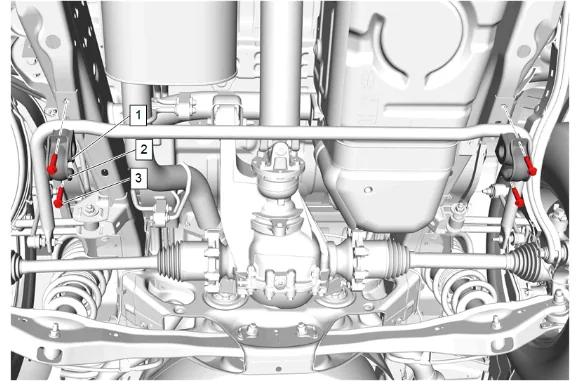

Rear Stabilizer Shaft Insulator Replacement — figure 1

Note

Support the rear stabilizer shaft with a suitable jack stand.

2. Rear Stabilizer Shaft Insulator Clamp Bolt (3) » Remove [4x]
3. Rear Stabilizer Shaft Clamp (2) » Remove [2x]
4. Rear Stabilizer Shaft Insulator (1) » Remove [2x] Installation Procedure

Note

The rear stabilizer shaft insulator slit faces forward.

Note

Support the rear stabilizer shaft with a suitable jack stand.

1. Rear Stabilizer Shaft Insulator (1) » Install [2x]
2. Rear Stabilizer Shaft Clamp (2) » Install [2x]
3. Rear Stabilizer Shaft Insulator Clamp Bolt (3) » Install and tighten [4x] — Fastener Specifications
4. Remove the support and lower the vehicle.
