Battery Vent Tube Replacement (9C1, 5W4)

Removal Procedure

Battery Vent Tube Replacement (9C1, 5W4) — figure 1

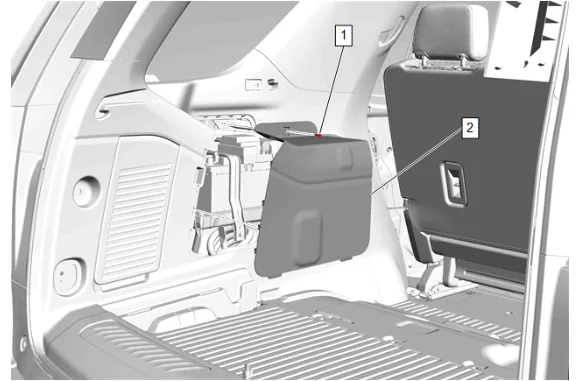

1. Quarter Upper Trim Panel Bolt (1) » Remove
2. Quarter Trim Panel Cover (2) » Remove

Battery Vent Tube Replacement (9C1, 5W4) — figure 2

Note

Quarter lower rear trim panel removed for graphic clarity.

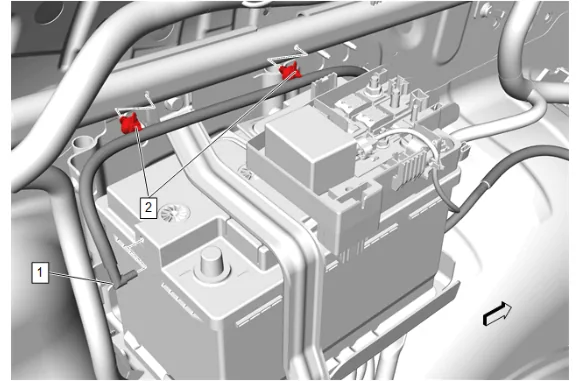

3. Battery Vent Tube (1) » Remove
4. Retainer (2) » Disengage [2x]

Battery Vent Tube Replacement (9C1, 5W4) — figure 3

Note

Quarter lower rear trim panel removed for graphic clarity.

5. Retainer (1) » Disengage
6. Remove the grommet (2) from the wheel well.
7. Battery Vent Tube (3) » Remove Installation Procedure

Note

Quarter lower rear trim panel removed for graphic clarity.

1. Battery Vent Tube (3) » Install
2. Retainer (1) » Engage
3. Install the grommet (2) into the wheel well opening.

Note

Quarter lower rear trim panel removed for graphic clarity.

4. Battery Vent Tube (1) » Install

5. Retainer (2) » Engage [2x]

6. Quarter Trim Panel Cover (2) » Install

Caution

Refer to Fastener Caution.

7. Quarter Upper Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
