Front Floor Panel Mat Replacement

Removal Procedure

Warning

Refer to SIR Warning.

1. Disable the SIR system. SIR Disabling and Enabling
2. Remove the driver and the passenger seats. Front Seat Removal and Installation
3. { If equipped } Remove the front center seat. Front Center Seat Removal and Installation

Front Floor Panel Mat Replacement — figure 1

4. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Remove

Front Floor Panel Mat Replacement — figure 2

5. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Remove

Front Floor Panel Mat Replacement — figure 3

6. Starting at the rear of the front side door sill garnish molding (1) pull upward at the b-pillar joint to disengage the garnish molding.
7. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.

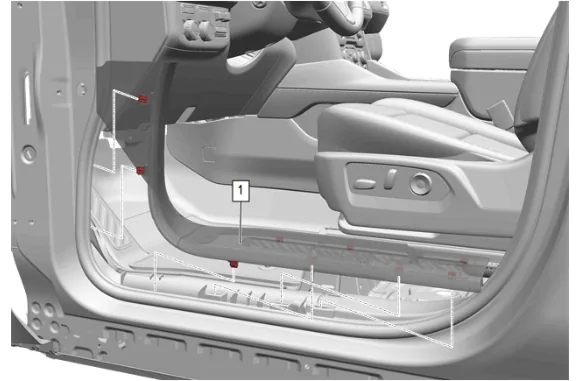

8. Front Side Door Sill Garnish Molding (1) » Remove [2x]

Front Floor Panel Mat Replacement — figure 4

9. Floor Carpet Retainer (1) » Remove [2x]

Front Floor Panel Mat Replacement — figure 5

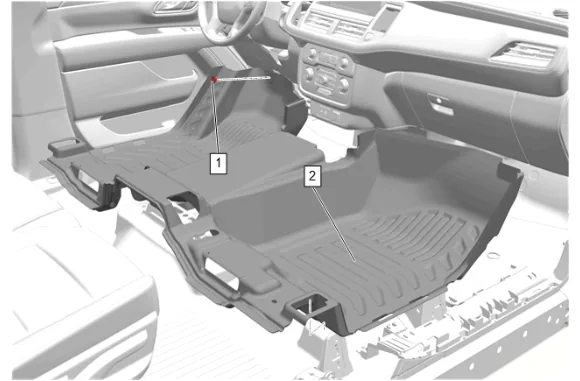

10. Floor Carpet Retainer Button (1) » Remove

11. Front Floor Panel Carpet (2) » Remove Installation Procedure

12. Front Floor Panel Carpet (2) » Install

13. Floor Carpet Retainer Button (1) » Install

14. Floor Carpet Retainer (1) » Install [2x]

15. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

16. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

17. Front Side Door Sill Garnish Molding (1) » Install [2x]

18. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Install

19. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Install

20. { If equipped } Install the front center seat. Front Center Seat Removal and Installation

21. Install the driver and the passenger seats. Front Seat Removal and Installation

22. Enable the SIR System. SIR Disabling and Enabling
