Wireless Charging System Module Replacement (DCH)

Removal Procedure

Wireless Charging System Module Replacement (DCH) — figure 1

Note

Left side shown, right side similar.

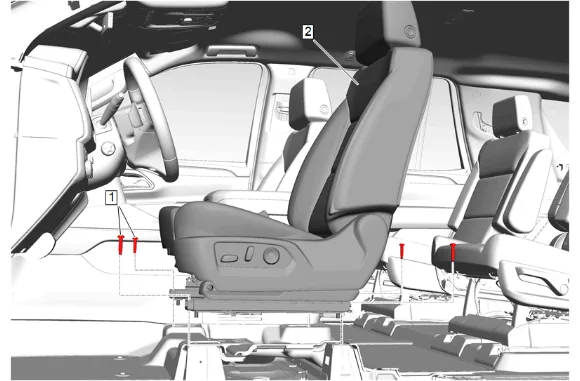

1. Front Seat - Left Side and Right Side (2) » Reposition [2x] — Front Seat Removal and Installation

Wireless Charging System Module Replacement (DCH) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.

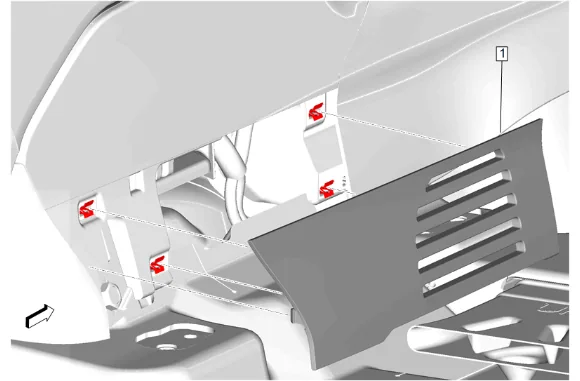

3. Front Floor Console Lower Applique (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.

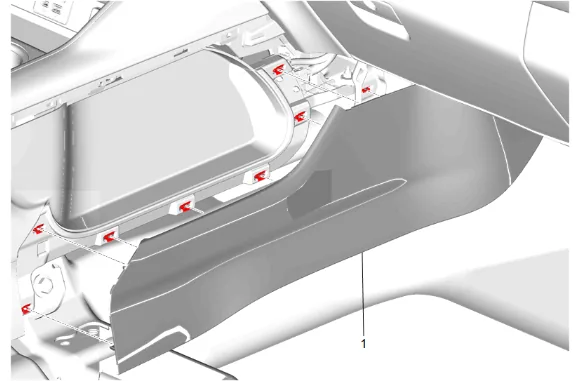

5. Front Floor Console Applique (1) » Remove

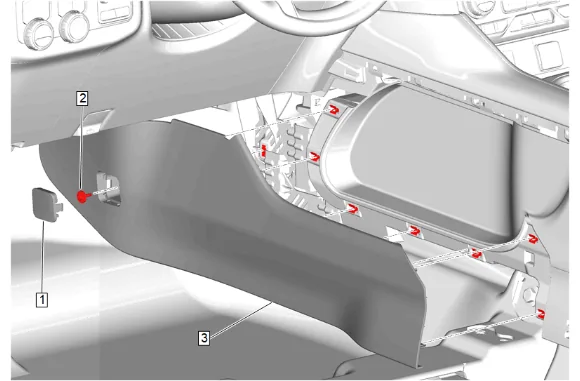

Wireless Charging System Module Replacement (DCH) — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Move the front seat to access the retainers.
9. Front Floor Console Extension Panel (3) » Remove

Wireless Charging System Module Replacement (DCH) — figure 5

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Front Floor Console Bolt Access Hole Cover (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 6

Note

You may have to slide the armrest back to better access the retainers.

12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Front Floor Console Rear Trim Lower Panel (1) » Remove

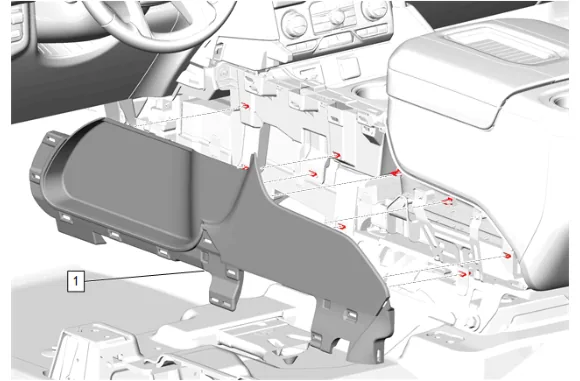

Wireless Charging System Module Replacement (DCH) — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Front Floor Rear Console Side Trim Panel (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 8

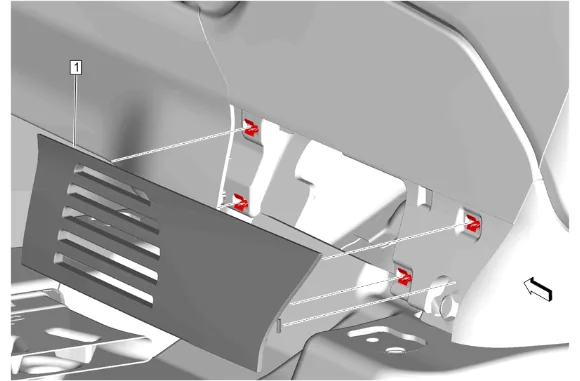

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Front Floor Console Lower Applique (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 9

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Front Floor Console Applique (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 10

Note

Use a flat bladed plastic trim tool.

20. Move the front seat to access the retainers.
21. Front Floor Console Extension Panel (1) » Remove

Wireless Charging System Module Replacement (DCH) — figure 11

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Front Floor Console Bolt Access Hole Cover (1) » Remove

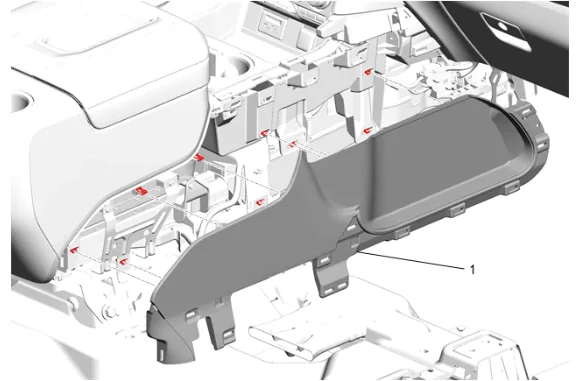

Wireless Charging System Module Replacement (DCH) — figure 12

24. Using a flat-bladed plastic trim tool, release the retaining clips.
25. Disconnect and reposition harness as necessary.
26. Front Floor Rear Console Side Trim Panel (1) » Remove
27. Slide the armrest compartment back.

Wireless Charging System Module Replacement (DCH) — figure 13

28. Front Floor Console Storage Tray Bolt (1) » Remove [2x]

Note

Use a suitable tool.

29. Front Floor Console Armrest Hinge Clip (2) » Remove

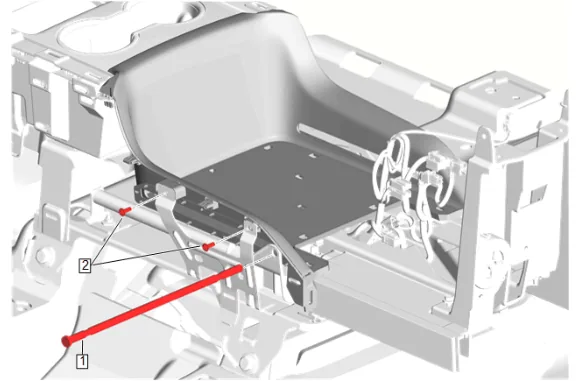

Wireless Charging System Module Replacement (DCH) — figure 14

30. Front Floor Console Armrest Pivot Pin (1) » Remove
31. Front Floor Console Storage Tray Bolt (2) » Remove [2x]

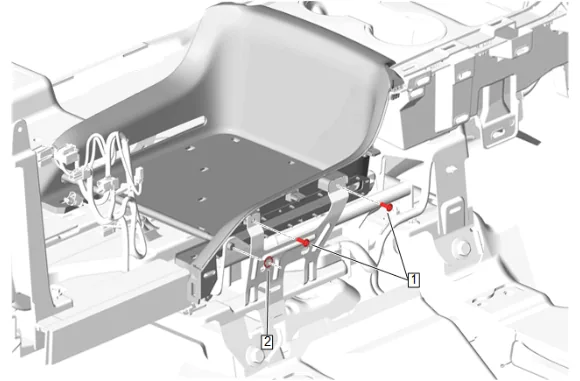

Wireless Charging System Module Replacement (DCH) — figure 15

32. Front Floor Console Stowage Tray (1) » Reposition

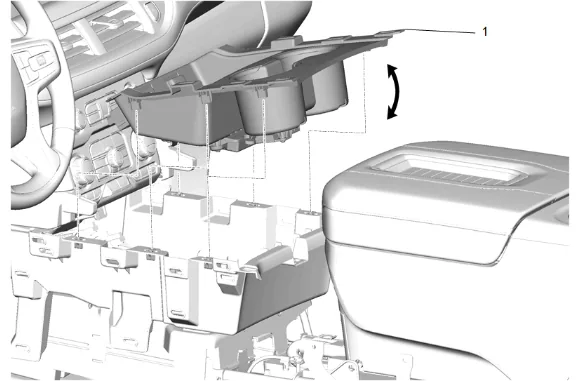

Wireless Charging System Module Replacement (DCH) — figure 16

33. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
34. Disconnect the electrical connectors.
35. Front Floor Console Cup Holder Trim Plate (1) » Remove

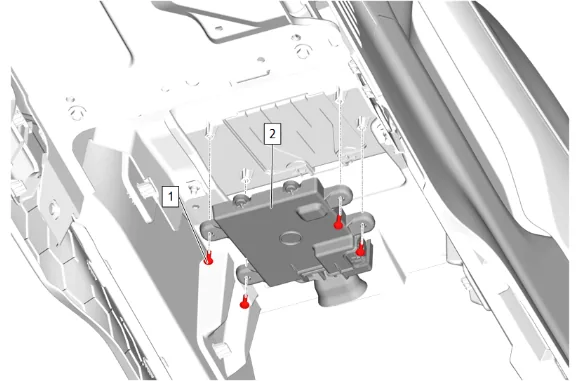

Wireless Charging System Module Replacement (DCH) — figure 17

36. Wireless Charging System Module Bracket Bolt (1) » Remove [4x]

37. Wireless Charging System Module (2) » Remove Installation Procedure

38. Wireless Charging System Module (2) » Install

Caution

Refer to Fastener Caution.

2. Wireless Charging System Module Bracket Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connectors.

4. Front Floor Console Cup Holder Trim Plate (1) » Install

5. Front Floor Console Stowage Tray (1) » Install

6. Front Floor Console Armrest Pivot Pin (1) » Install

Caution

Refer to Fastener Caution.

7. Front Floor Console Storage Tray Bolt (2) » Install and tighten [2x] — Fastener Specifications

8. Front Floor Console Storage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Front Floor Console Armrest Hinge Clip (2) » Install

10. Connect and position the wiring harness.

11. Front Floor Rear Console Side Trim Panel (1) » Install

12. Front Floor Console Bolt Access Hole Cover (1) » Install

13. Front Floor Console Extension Panel (1) » Install

14. Front Floor Console Applique (1) » Install

15. Front Floor Console Lower Applique (1) » Install

16. Front Floor Rear Console Side Trim Panel (1) » Install

17. Front Floor Console Rear Trim Lower Panel (1) » Install

18. Front Floor Console Bolt Access Hole Cover (1) » Install

19. Front Floor Console Extension Panel (3) » Install

20. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

21. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

22. Front Floor Console Applique (1) » Install

23. Front Floor Console Lower Applique (1) » Install

24. Return the armrest compartment to the close position.

Note

Left side shown, right side similar.

25. Front Seat - Left Side and Right Side (2) » Install [2x] — Front Seat Removal and Installation
