Front Bumper Lower Fascia Replacement (with Front Grille Filler)

Front Bumper Lower Fascia Replacement (with Front Grille Filler) Removal Procedure

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation
2. Disconnect all electrical connectors.
3. Remove the wiring harness.

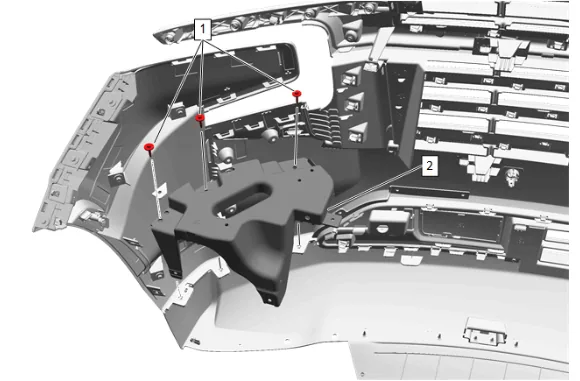

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 2

4. Front Bumper Fascia Reinforcement Bolt (1) » Remove 6x]
5. Remove the left and right side front bumper fascia reinforcements (2).

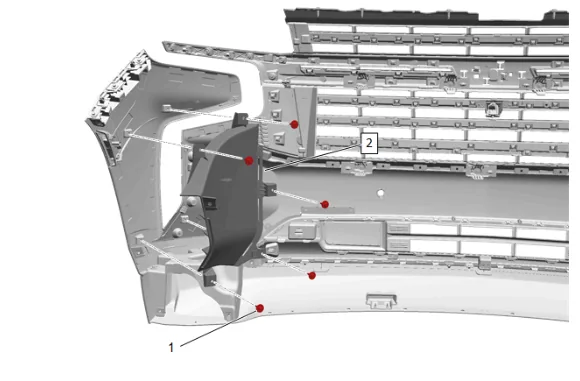

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 3

6. Front Bumper Fascia Bolt (1) » Remove [10x]
7. Front Bumper Fascia Outer Air Ducts (2) » Remove

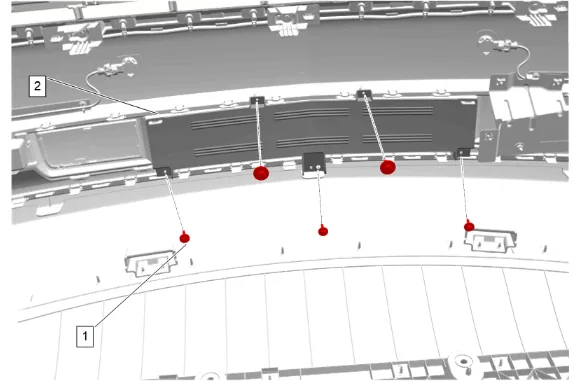

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 4

8. Front Bumper Fascia Lower Bracket Bolt (1) » Remove [3x]
9. Front Bumper Filler Retainer (2) Remove [2x]
10. Front Grille Filler (3) » Remove

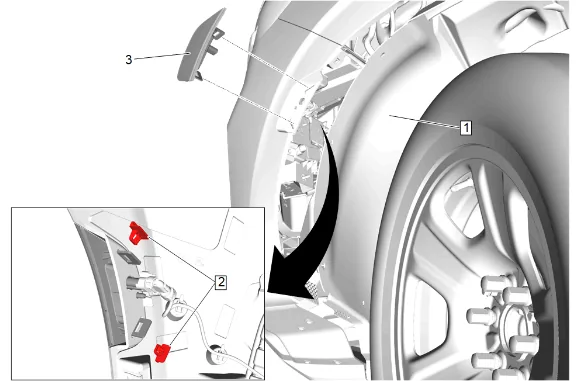

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 5

11. Remove the 4 left and right side front side marker lamp retainers (2).
12. Remove the left and right side front side marker lamps (3).

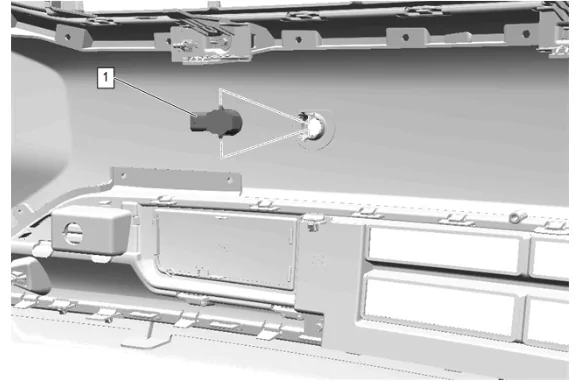

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 6

Note

The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

13. Lift the locking tabs on the housing and remove the 4 parking assist alarm sensors (1).

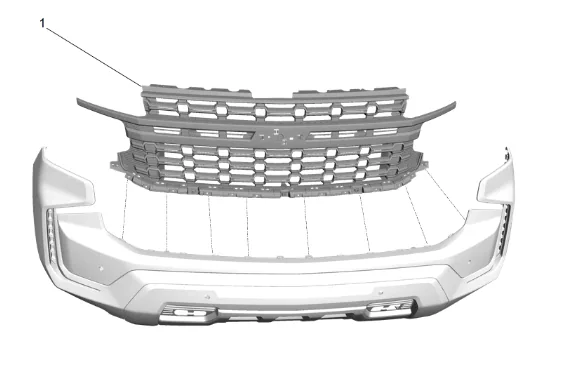

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 7

14. Release the clips with a suitable tool.
15. Release the retaining tabs.
16. Front Grille (1) » Remove

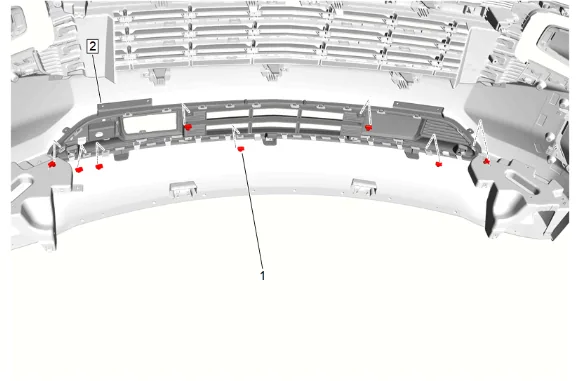

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 8

17. Front Grille Clip (1) » Remove [8x]
18. Disengage the retainers and remove the front lower grille (2).

Front Bumper Lower Fascia Replacement (with Front Grille Filler) — figure 9

19. Release the tabs on the lower fascia and carefully remove the front bumper lower fascia (1)  from the front bumper upper fascia. Installation Procedure

20. Install the front bumper lower fascia (1) to the front bumper upper fascia.

21. Install the front lower grille (2) and secure the retainers.

22. Front Grille Clip (1) » Install [8x]

23. Front Grille (1) » Install

Note

Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

5. Insert the 4 parking assist alarm sensors (1) into the housings.

6. Install the left and right side front side marker lamps (3).

7. Install the 4 left and right side front side marker lamp retainers (2).

8. Front Grille Filler (3) » Install

9. Front Bumper Filler Retainer (2) Install [2x]

Caution

Refer to Fastener Caution.

10. Front Bumper Fascia Bolt (1) » Install and tighten [3x] — Fastener Specifications

11. Install the left and right side front bumper fascia outer air ducts (2).

12. Install and tighten the 10 left and right side front bumper fascia bolts (1). Fastener Specifications

13. Install the left and right side front bumper fascia reinforcements (2).

14. Install and tighten the 6 left and right side front bumper fascia reinforcement bolts (1). Fastener Specifications

15. Install the wiring harness.

16. Connect all electrical connectors.

17. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
