Tahoe / Yukon Service Manual

Rear Seat Latch Finish Cover Replacement (60 Percent)

Removal Procedure

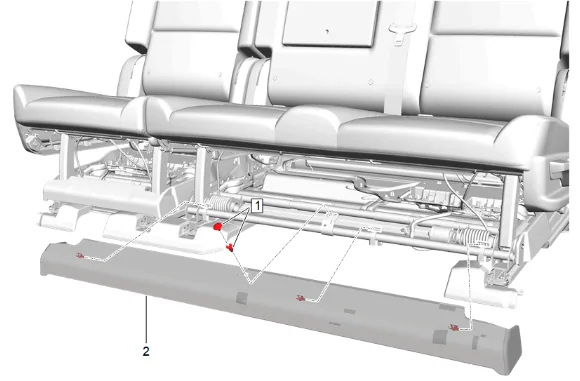

Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 1
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 1
  1. Rear Seat Riser Finish Cover Retainer (1) » Remove
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Rear Seat Riser Finish Cover (2) » Remove
  4. Place the opposite rear seat in the fold and tumble position, as necessary.
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 2
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clip.
  2. Rear Seat Riser Finish Cover (1) » Remove

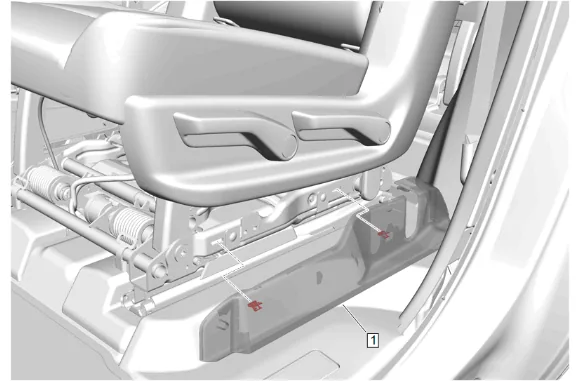

Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 3
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 4
Rear Seat Latch Finish Cover Replacement (60 Percent) — figure 4

  1. Rear Seat Latch Finish Cover (1) » Remove Installation Procedure

  2. Rear Seat Latch Finish Cover (1) » Install

  3. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

  4. Rear Seat Riser Finish Cover (1) » Install

  5. Return the opposite rear seat to the original position, if necessary.

  6. Rear Seat Riser Finish Cover (2) » Install

  7. Rear Seat Riser Finish Cover Retainer (1) » Install
