Tahoe / Yukon Service Manual

Front Seat Center Belt Buckle Replacement

Removal Procedure

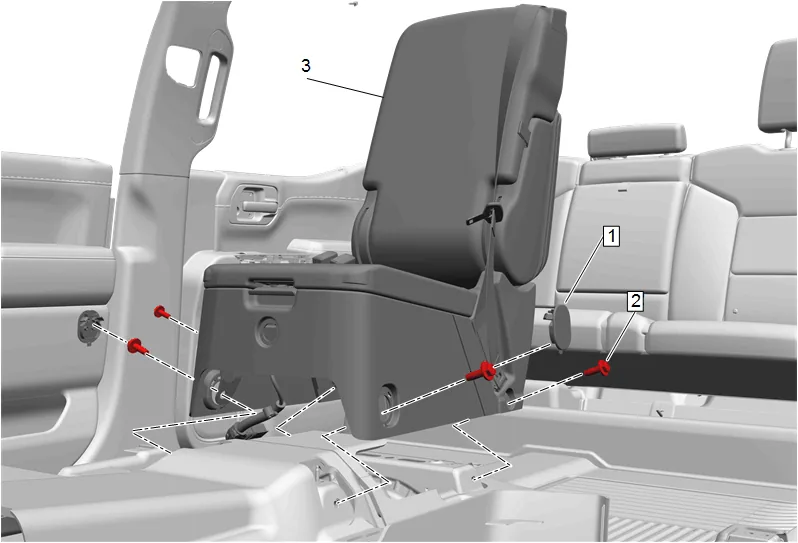

Front Seat Center Belt Buckle Replacement — figure 1
Front Seat Center Belt Buckle Replacement — figure 1
  1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation
Front Seat Center Belt Buckle Replacement — figure 2
Front Seat Center Belt Buckle Replacement — figure 2
  1. Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower (1) retaining clips.

  1. Remove and DISCARD seat belt retaining bushings.

  2. Front Seat Center Belt Buckle (2) » Remove Installation Procedure

  3. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install

  4. Front Seat Center Belt Buckle (2) » Install

  5. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
