Instrument Panel Outer Air Outlet Replacement - Left Side

Removal Procedure

Instrument Panel Outer Air Outlet Replacement - Left Side — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Left Side — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Left Side — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Left Side — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Instrument Panel Trim Pad (2) » Remove
8. Disconnect the electrical connectors.

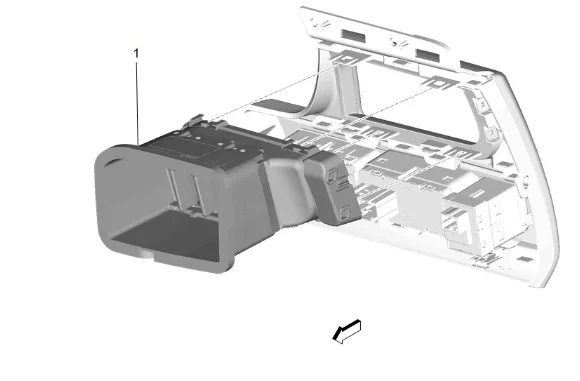

Instrument Panel Outer Air Outlet Replacement - Left Side — figure 5

9. Release the retaining tabs.

10. Instrument Panel Outer Air Outlet (1) » Remove Installation Procedure

11. Instrument Panel Outer Air Outlet (1) » Install

12. Ensure that the retaining tabs are fully secured.

13. Connect the electrical connectors.

14. Instrument Panel Trim Pad (2) » Install

Caution

Refer to Fastener Caution.

5. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Instrument Panel Trim Plate Applique (1) » Install

7. Instrument Panel Fuse Block Access Hole Cover (1) » Install

8. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
