Tahoe / Yukon Service Manual

Front Seat Belt Buckle Replacement

Removal Procedure

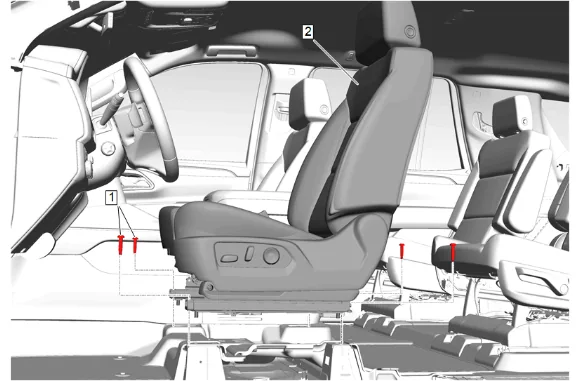

Front Seat Belt Buckle Replacement — figure 1
Front Seat Belt Buckle Replacement — figure 1
  1. Front Seat (2) » Remove — Front Seat Removal and Installation

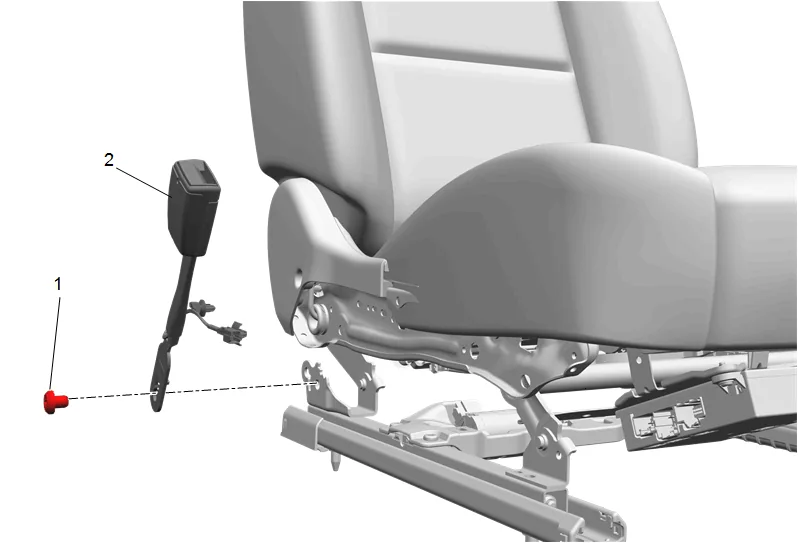

Front Seat Belt Buckle Replacement — figure 2
Front Seat Belt Buckle Replacement — figure 2

  1. Front Seat Belt Buckle Bolt (1) » Remove

  2. Disconnect the electrical connector.

  3. Front Seat Belt Buckle (2) » Remove Installation Procedure

  4. Front Seat Belt Buckle (2) » Install

  5. Connect the electrical connector.

  6. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 3.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 3.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 3.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 3.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  1. Front Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

  2. Front Seat (2) » Install — Front Seat Removal and Installation
