Front Seat Adjuster Switch Bezel Replacement

Removal Procedure

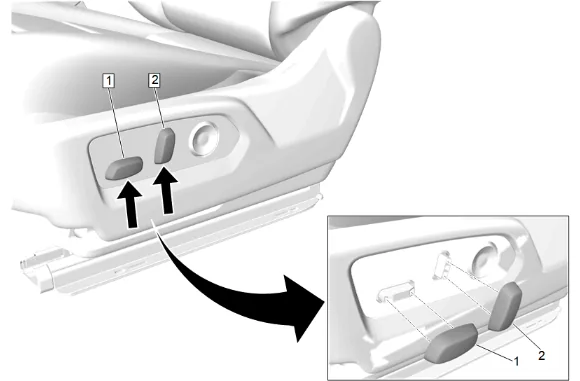

Front Seat Adjuster Switch Bezel Replacement — figure 1
Front Seat Adjuster Switch Bezel Replacement — figure 1
  1. Insert a suitable plastic trim tool under the lower edge of the knobs, and pry outwards to remove.
  2. Front Seat Adjuster Knob (1) » Remove
  3. Front Seat Recliner Knob (2) » Remove

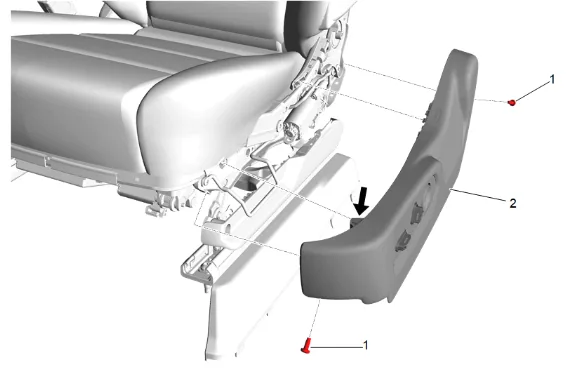

Front Seat Adjuster Switch Bezel Replacement — figure 2
Front Seat Adjuster Switch Bezel Replacement — figure 2
  1. Reposition the seat as necessary to access the bolts.
  2. Front Seat Bolt (1) » Remove [2x]
  3. Squeeze the front seat cushion outer finish cover retainer to release it from the seat frame.
  4. Disconnect the electrical connectors and release the wiring harness retainers as necessary.
  5. Lift the front seat cushion outer finish cover (2) to release it from the front seat cushion cover wire retainer.
  1. Front Seat Cushion Outer Finish Cover (2) » Remove

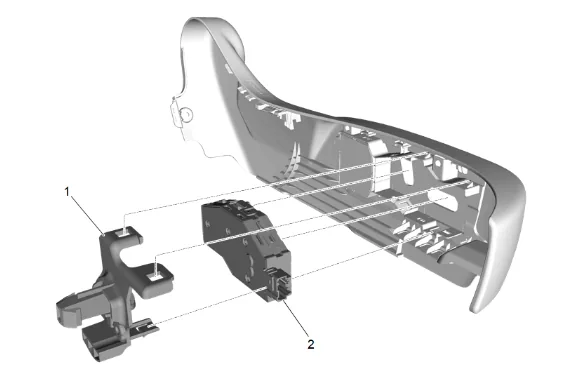

Front Seat Adjuster Switch Bezel Replacement — figure 3
Front Seat Adjuster Switch Bezel Replacement — figure 3
  1. Release the retaining tabs that secure the finish cover retainer (1) to the adjuster switch assembly (2).
  2. Front Seat Adjuster Finish Cover Retainer (1) » Remove
  3. Release the retaining tabs that secure the adjuster switch assembly (2) to the outer finish cover.
  4. Front Seat Adjuster Switch (2) » Remove
Front Seat Adjuster Switch Bezel Replacement — figure 4
Front Seat Adjuster Switch Bezel Replacement — figure 4
  1. Release the retaining tabs that secure the lumbar switch (1) to the outer finish cover.
  2. Front Seat Lumbar Switch (1) » Remove

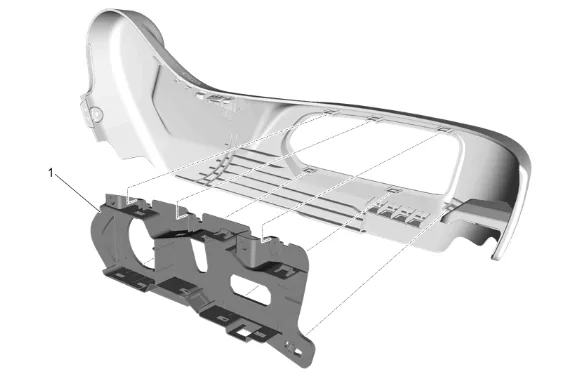

Front Seat Adjuster Switch Bezel Replacement — figure 5
Front Seat Adjuster Switch Bezel Replacement — figure 5

  1. Release the retaining tabs that secure the adjuster switch bezel (1) to the outer finish cover.

  2. Front Seat Adjuster Switch Bezel (1) » Remove Installation Procedure

  3. Front Seat Adjuster Switch Bezel (1) » Install

  4. Front Seat Lumbar Switch (1) » Install

  5. Front Seat Adjuster Switch (2) » Install

  6. Front Seat Adjuster Finish Cover Retainer (1) » Install

  7. Connect the electrical connectors and install the wiring harness retainers as necessary.

  8. Front Seat Cushion Outer Finish Cover (2) » Install

  1. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Return the seat to its original position.

  3. Front Seat Recliner Switch Knob (2) » Install

  4. Front Seat Adjuster Switch Knob (1) » Install
