Engine Control Module Bracket Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5535972

Warning

Refer to Safety Glasses Warning.

Caution

Always turn the ignition off when installing or removing the ECM connectors in order to prevent damage to the components.

Caution

Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module in order to prevent internal control module damage. Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables, or when charging the vehicle battery. In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board. Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets, and ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module. Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

Engine Control Module Bracket Replacement — figure 1

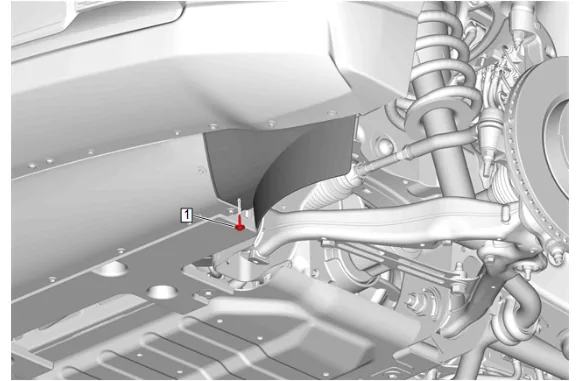

3. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

Engine Control Module Bracket Replacement — figure 2

Note

Quantity of fasteners may vary based on option content.

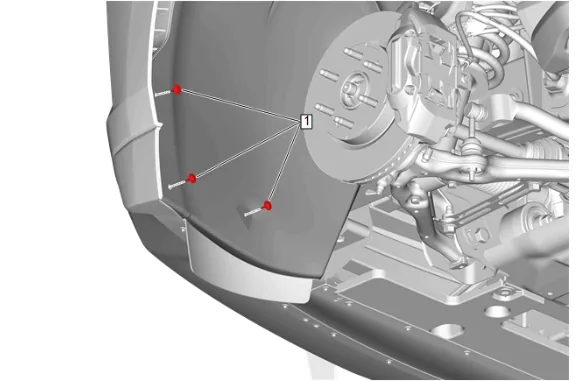

4. Front Wheelhouse Liner Bolt (1) » Remove [3x]

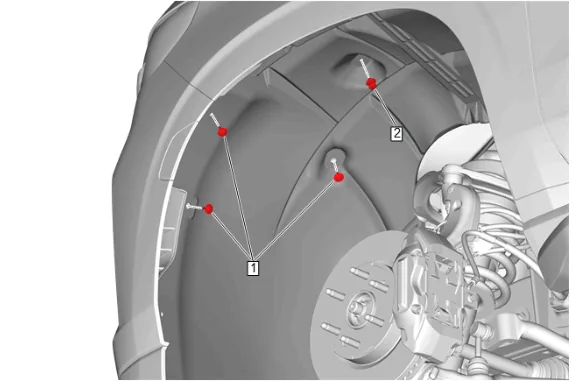

Engine Control Module Bracket Replacement — figure 3

Note

Quantity of fasteners may vary based on option content.

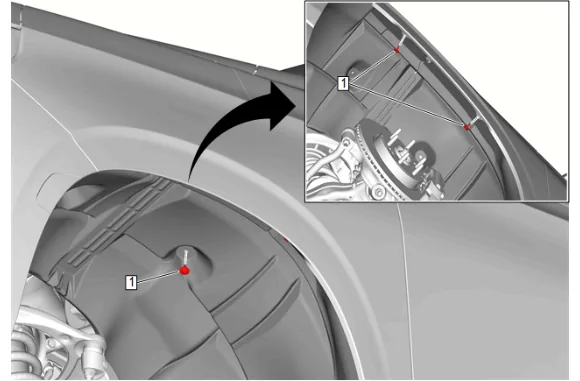

5. Front Wheelhouse Liner Bolt (1) » Remove [3x]
6. Front Wheelhouse Liner Retainer (2) » Remove

Engine Control Module Bracket Replacement — figure 4

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]
8. Reposition the front wheelhouse liner rearward.

Engine Control Module Bracket Replacement — figure 5

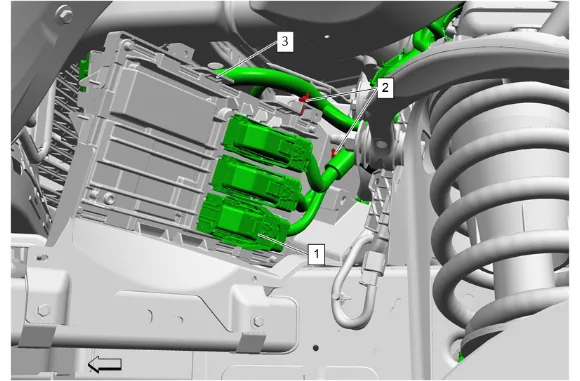

9. Disconnect the 3 electrical connectors (1) from the engine control module.
10. Disengage the 2 wiring harness retainers (2).
11. Use a suitable tool to pry back the locking tabs (3).

Engine Control Module Bracket Replacement — figure 6

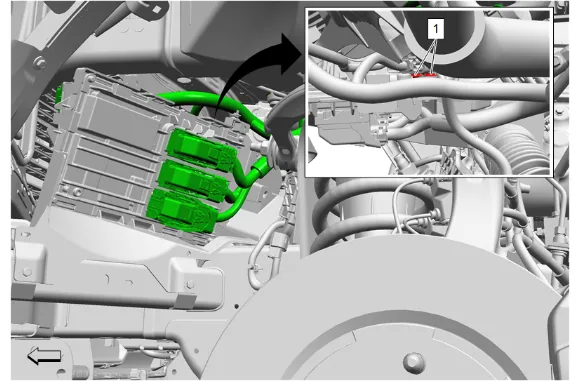

12. Disengage the 2 wiring harness retainers (1).

Engine Control Module Bracket Replacement — figure 7

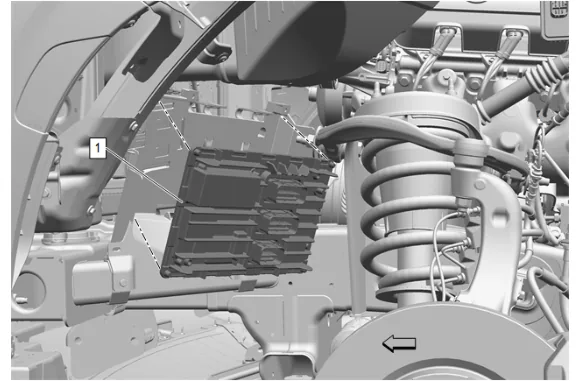

13. Engine Control Module (1) » Remove

Engine Control Module Bracket Replacement — figure 8

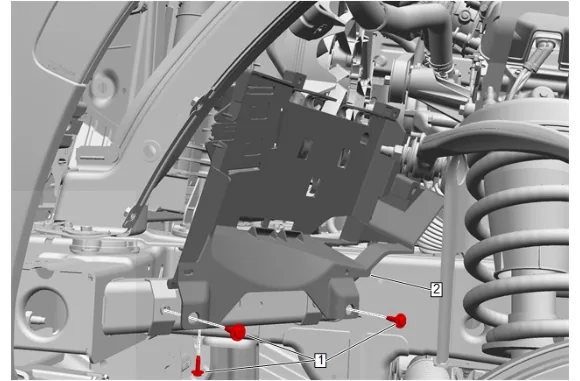

14. Engine Control Module Bracket Bolt (1) » Remove [3x]

Engine Control Module Bracket Replacement — figure 9

Note

Parts removed from graphic for clarity.

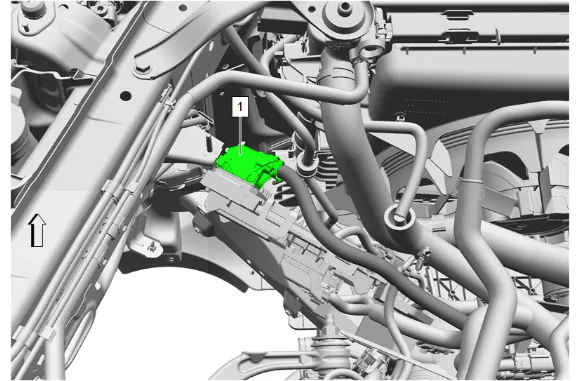

15. Disconnect the transmission control module electrical connector (1).

Engine Control Module Bracket Replacement — figure 10

16. Engine Control Module Bracket (2) » Remove

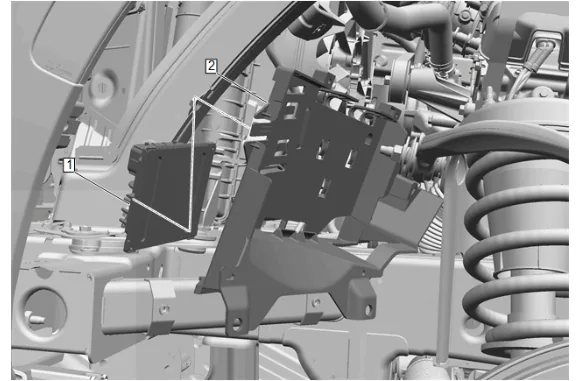

17. Use a suitable tool to pry back the locking tab and remove the transmission control module   (1) by sliding it out from the bracket  (2). Installation Procedure

18. Transmission Control Module (1) » Install

19. Engine Control Module Bracket (2) » Install

20. Reconnect the transmission control module electrical connector  (1).

Caution

Refer to Fastener Caution.

4. Engine Control Module Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

5. Engine Control Module (1) » Install

6. Engage the 2 wiring harness retainers (1).

7. Engage the 2 wiring harness retainers (2).

8. Reconnect the 3 electrical connectors (1) to the engine control module.

9. Reposition the front wheelhouse liner forward.

10. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

11. Front Wheelhouse Liner Retainer (2) » Install
12. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

13. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

14. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

15. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

16. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
