Rear Seat Back Latch Cable Replacement - Outboard (60 Percent)

Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) Single Use Fasteners and Components Tie Strap Removal Procedure

Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 1
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 1
  1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

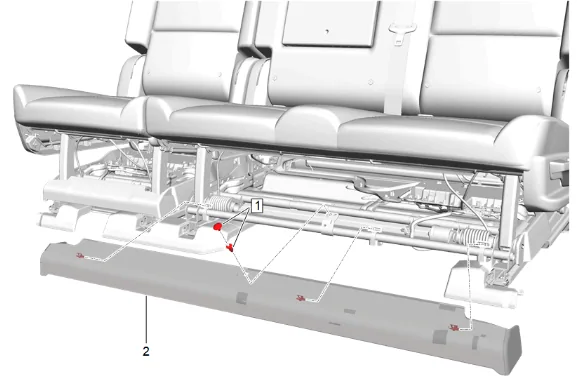

Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 2
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 2
  1. Rear Seat Riser Finish Cover Retainer (1) » Remove
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Rear Seat Riser Finish Cover (2) » Remove

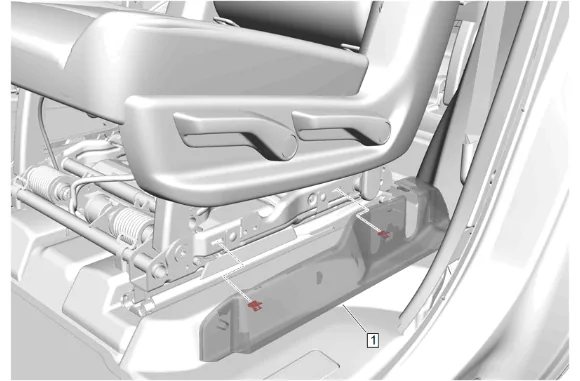

Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 3
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clip.
  2. Rear Seat Riser Finish Cover (1) » Remove
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 4
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 5
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 5
  1. Rear Seat Latch Finish Cover (1) » Remove

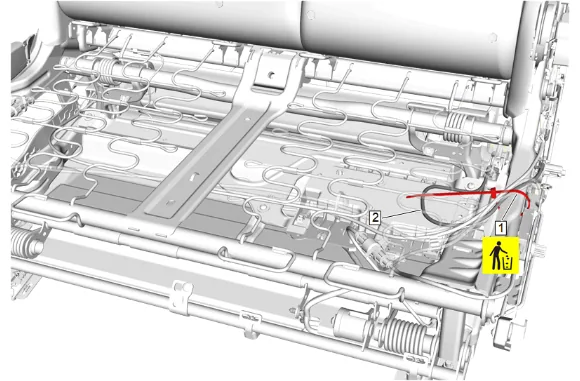

Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 6
Rear Seat Back Latch Cable Replacement - Outboard (60 Percent) — figure 6

  1. Tie Strap (1) » Remove and DISCARD

  2. Using a suitable tool, release the seat cable retaining features.

  3. Release the cable ends from the seat frame.

  4. Rear Seat Back Latch Cable - Outboard Floor Latch (2) » Remove Installation Procedure

  5. Rear Seat Back Latch Cable - Outboard Floor Latch (2) » Install

  6. Install the cable ends into the seat frame.

  7. Secure the seat cable retaining features.

  8. Tie Strap (1) » Install NEW

  9. Rear Seat Latch Finish Cover (1) » Install

  10. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

  11. Rear Seat Riser Finish Cover (1) » Install

  12. Rear Seat Riser Finish Cover (2) » Install

  13. Rear Seat Riser Finish Cover Retainer (1) » Install

  14. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
