Tahoe / Yukon Service Manual

High Pressure Diesel Fuel Pump Replacement (2WD)

Single Use Fasteners and Components Exhaust Gas Recirculation Cooler Inlet Pipe Gasket Exhaust Gas Recirculation Pipe Seal Exhaust System Front Gasket Fuel Injection Pump Bolt Fuel Pump Access Hole Cover Seal High Pressure Diesel Fuel Feed to Rail Pipe [2x] Transfer Case Adapter Gasket Transmission Fluid Cooler Pipe Seal [2x] Transmission Fluid Cooler Seal Special Tools EN-45059 Angle Meter EN-52448 High Pressure Fuel Pump Tool Equivalent regional tools: Special Tools

  1. Turn OFF the engine for 30 seconds before proceeding. This will purge the fuel pressure from the complete fuel system.

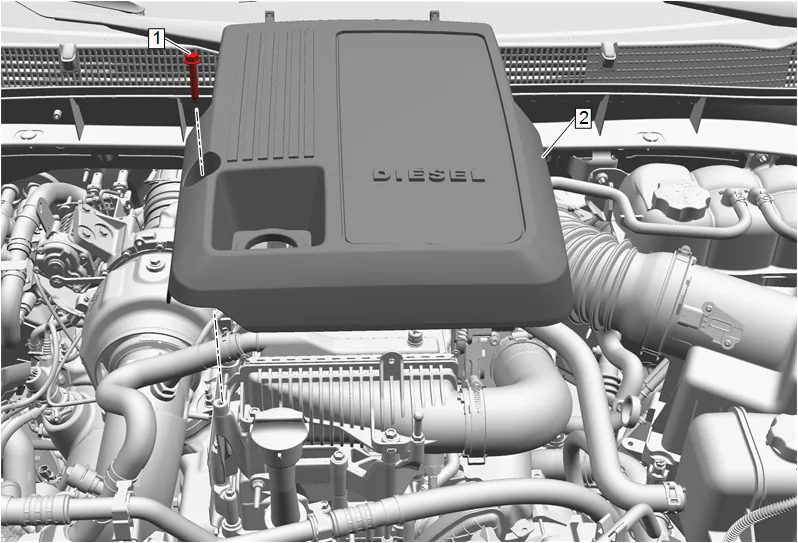

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 1
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 1
  1. Oil Filler Cap » Remove
  2. Intake Manifold Cover Bolt (1) » Remove
  3. Intake Manifold Cover (2) » Remove
  4. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

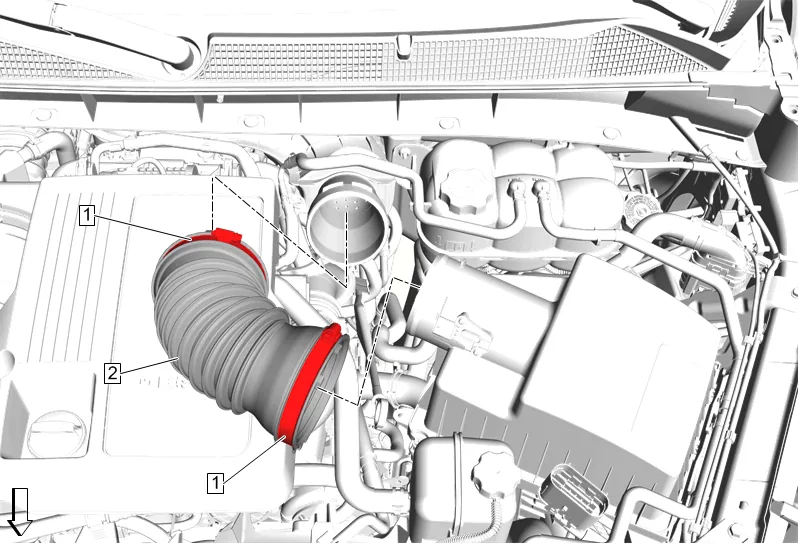

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 2
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 2
  1. Air Cleaner Outlet Duct Clamp (1) » Loosen [2x]
  2. Air Cleaner Outlet Front Duct (2) » Remove
  3. Plenum Front Panel Outer Reinforcement » Remove — Plenum Front Panel Outer Reinforcement Removal and Installation

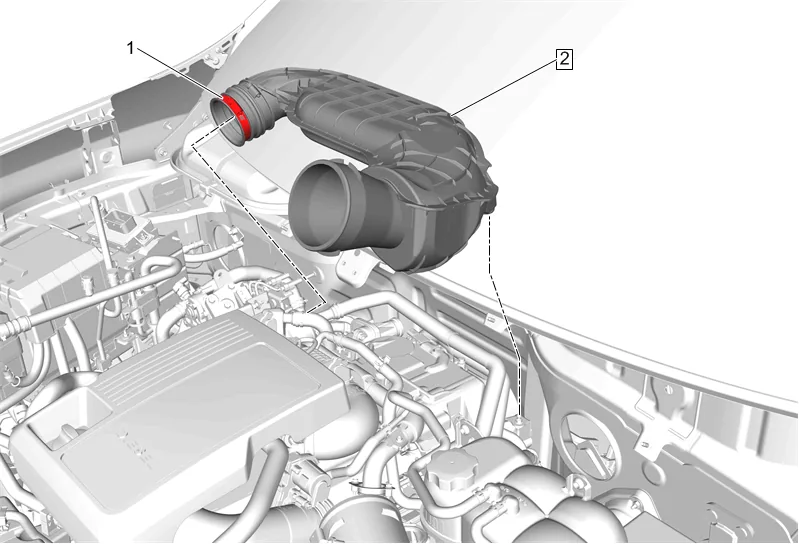

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 3
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 3
  1. Air Cleaner Outlet Duct Clamp (1) » Loosen
  2. Air Cleaner Outlet Duct (2) » Remove

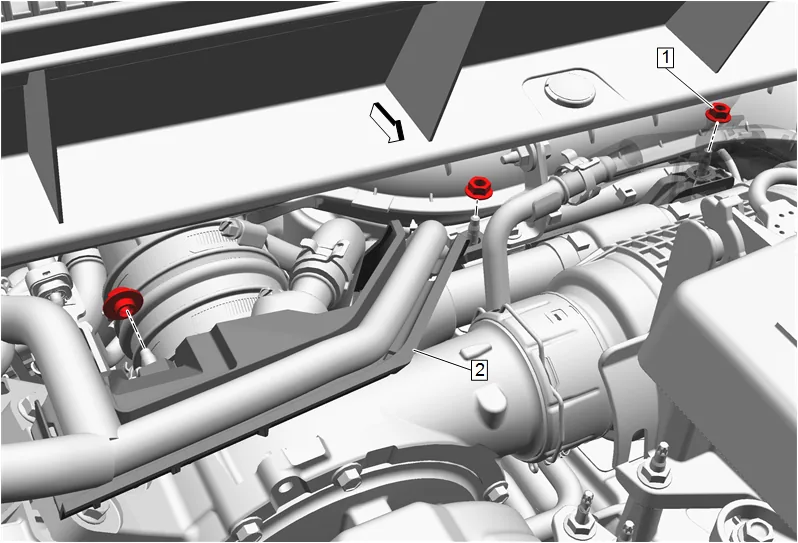

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 4
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 4
  1. Remove the 3 rear engine wiring harness channel nuts (1).
  2. Position the rear engine wiring harness channel (2) out of the way.
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 5
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 5

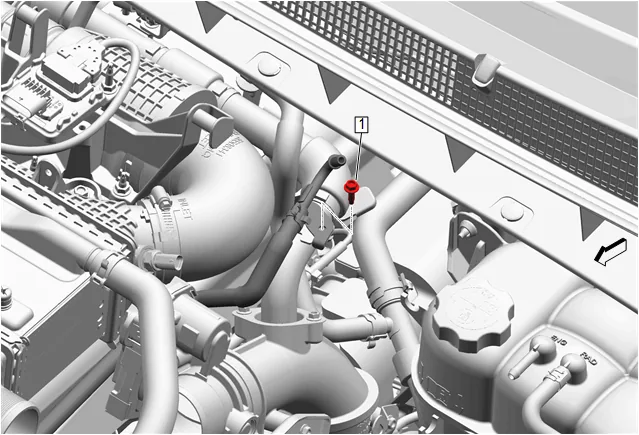

  1. Engine Coolant Outlet Pipe Bracket Bolt (1) » Remove
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 6
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 6

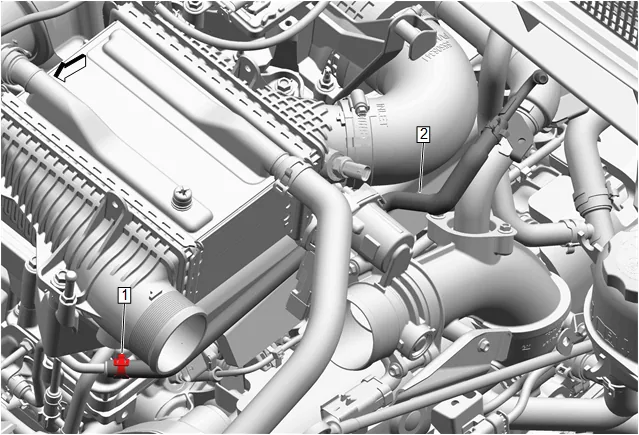

  1. Engine Coolant Air Bleed Hose (2) » Reposition

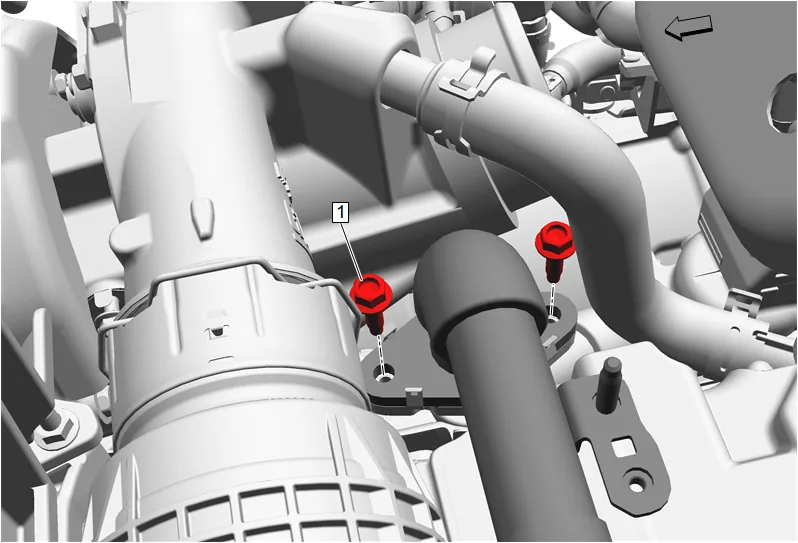

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 7
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 7
  1. Remove the 2 exhaust gas recirculation cooler bolts (1).

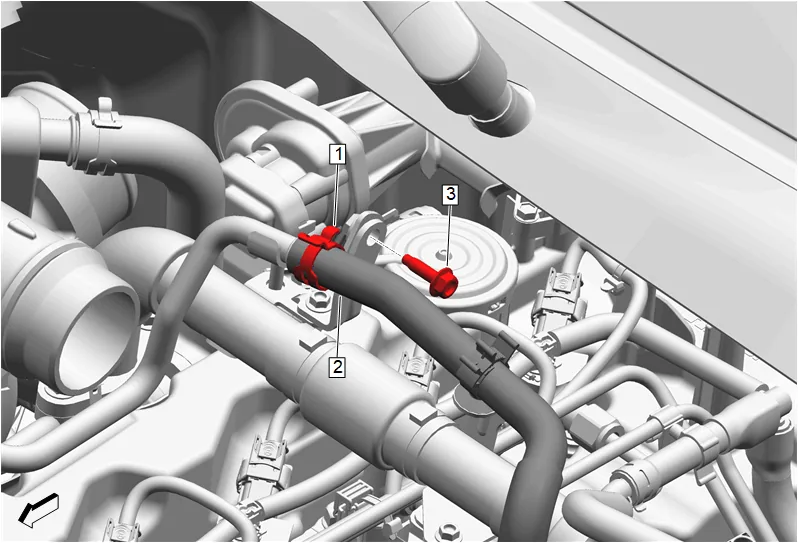

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 8
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 8
  1. Remove the turbocharger coolant feed pipe bolt (3).

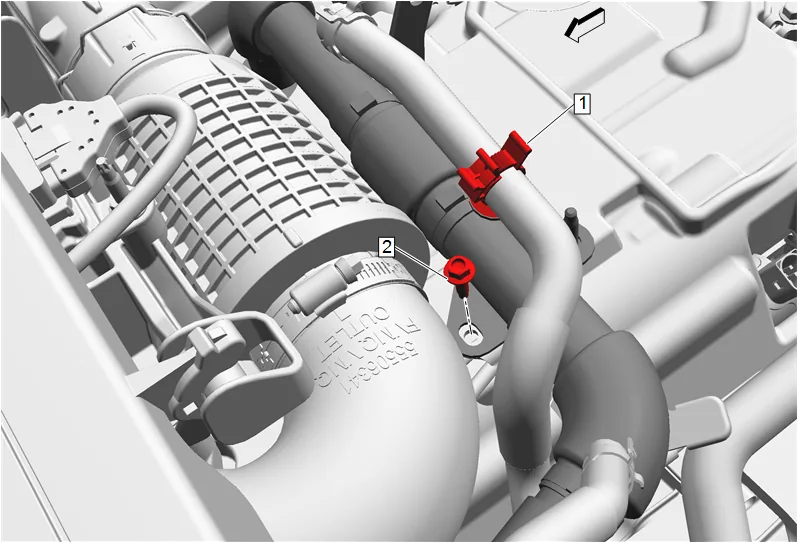

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 9
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 9
  1. Remove the turbocharger coolant return hose clip (1) and position the turbocharger coolant return hose out of the way.
  2. Remove the exhaust gas recirculation pipe bolt (2).

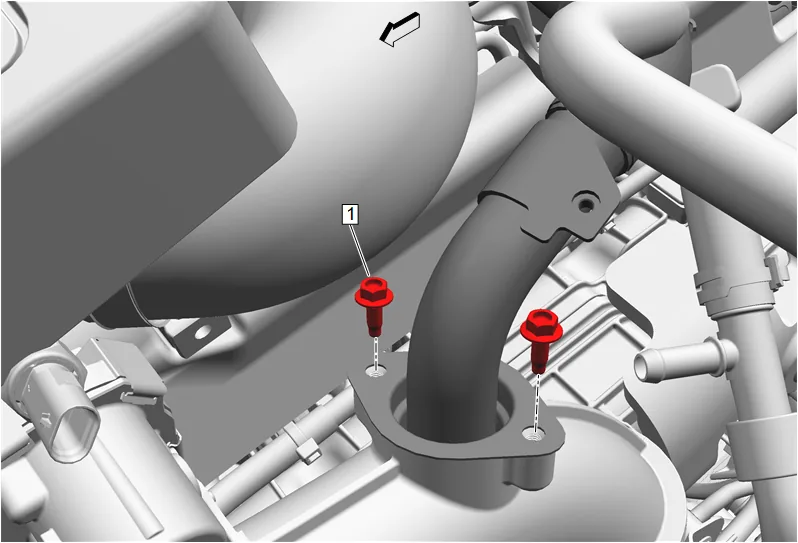

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 10
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 10
  1. Remove the 2 exhaust gas recirculation pipe bolts (1).

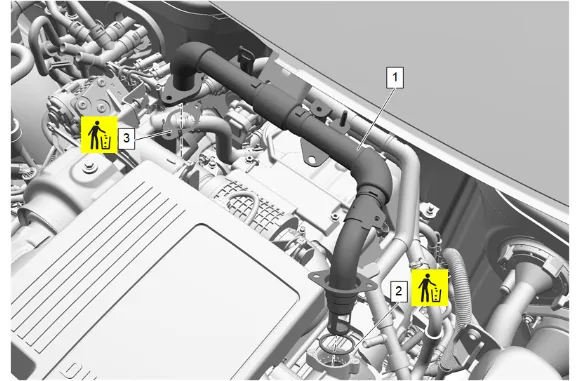

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 11
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 11
  1. Remove the exhaust gas recirculation pipe (1).
  2. Remove and DISCARD the exhaust gas recirculation pipe seal (2).
  3. Remove and DISCARD the exhaust gas recirculation cooler input pipe gasket (3).

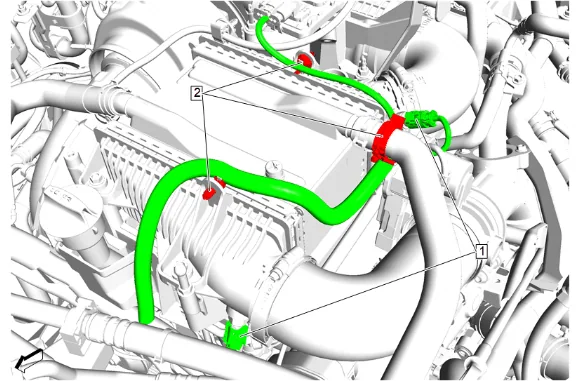

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 12
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 12
  1. Electrical Connector (1) @ Charge Air Cooler » Disconnect [2x]
  2. Wiring Harness Retainer (2) @ Charge Air Cooler » Remove [3x]

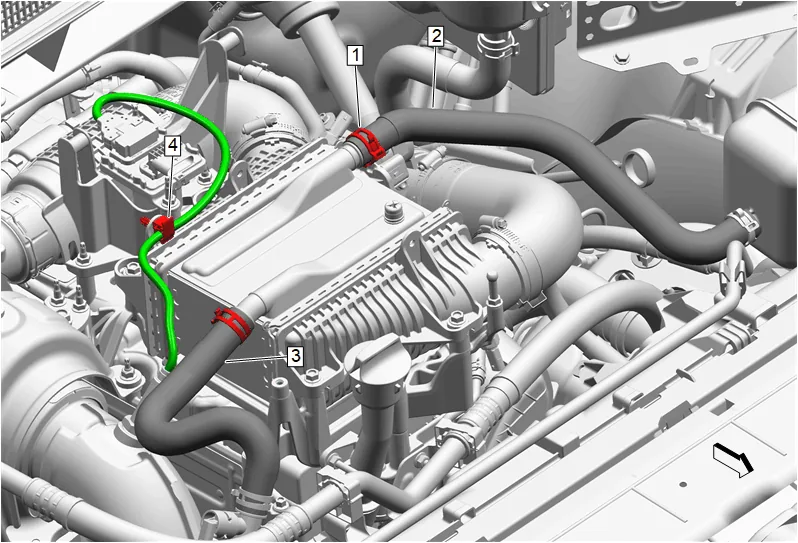

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 13
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 13
  1. Wiring Harness Retainer (4) @ Charge Air Cooler » Remove
  2. Disconnect the nitrogen oxides sensor electrical connector.

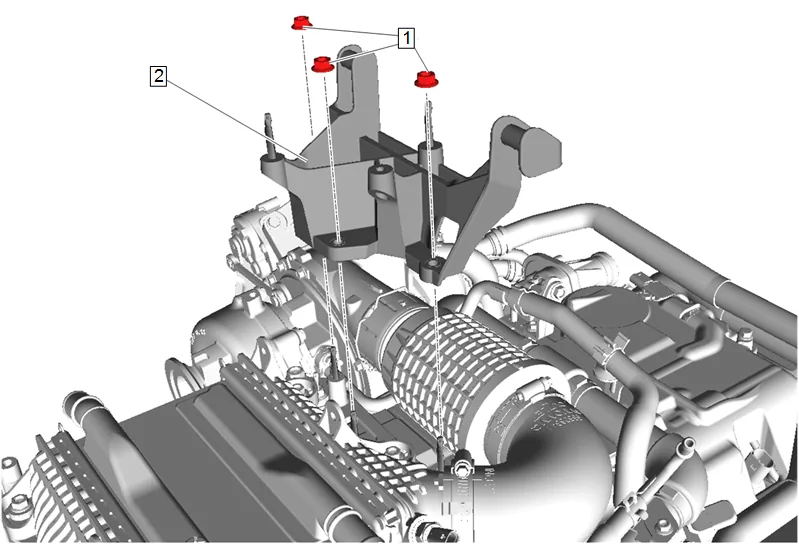

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 14
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 14
  1. Upper Intake Manifold Brace Nut (1) » Remove [3x]
  2. Upper Intake Manifold Bracket (2) » Remove

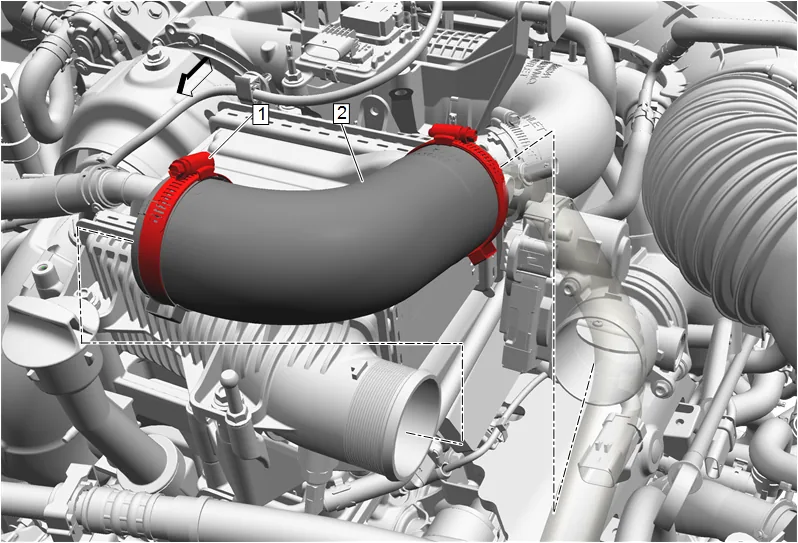

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 15
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 15
  1. Charge Air Cooler Outlet Air Hose Clamp (1) » Loosen until disengaged [2x]
  2. Charge Air Cooler Outlet Air Hose (2) » Remove

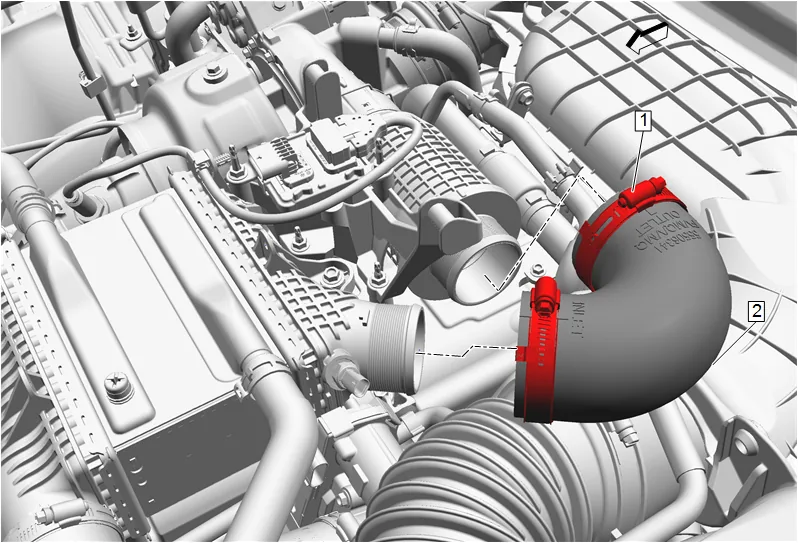

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 16
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 16
  1. Charge Air Cooler Inlet Air Hose Clamp (1) » Loosen until disengaged [2x]
  2. Charge Air Cooler Inlet Air Hose (2) » Remove

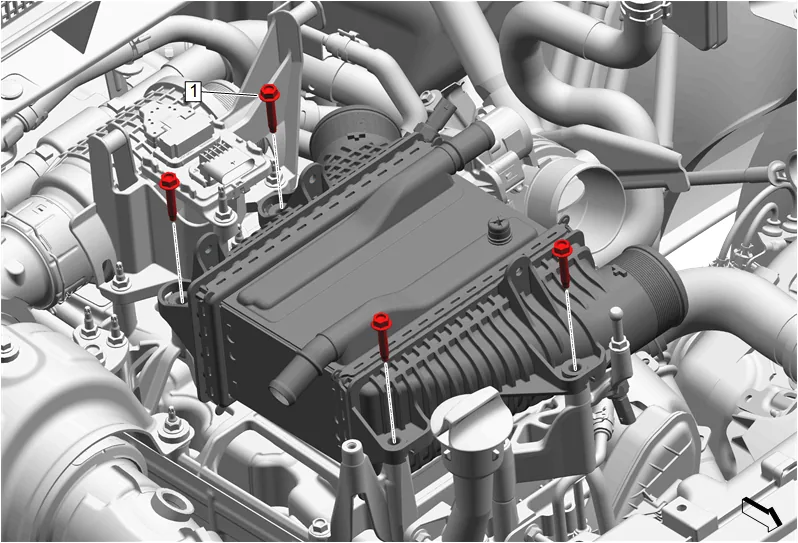

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 17
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 17
  1. Charge Air Cooler Bolt (1) » Remove [4x]

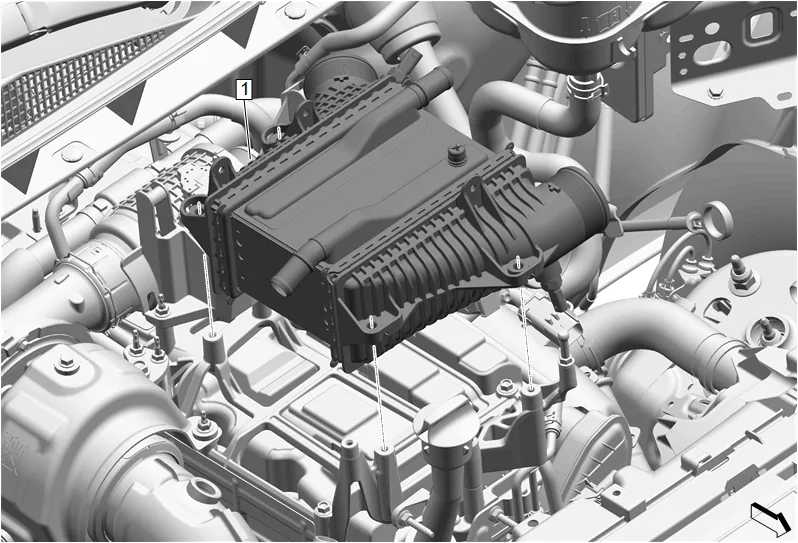

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 18
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 18
  1. Charge Air Cooler » (1) Reposition

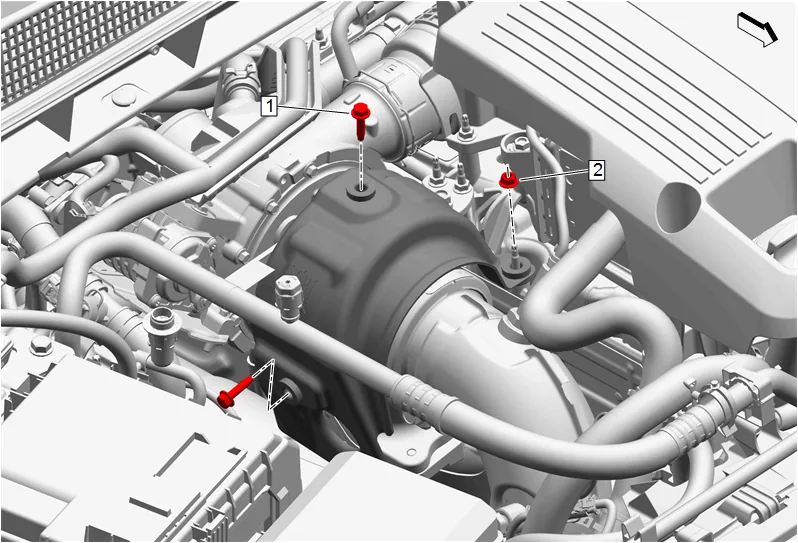

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 19
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 19
  1. Turbocharger Heat Shield Bolt (1) » Remove [2x]
  2. Turbocharger Heat Shield Nut (2) » Remove

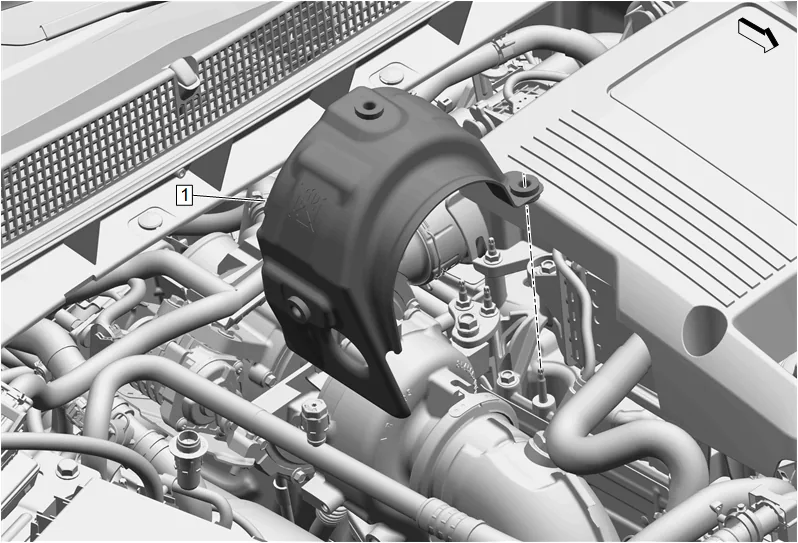

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 20
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 20
  1. Turbocharger Heat Shield (1) » Reposition
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 21
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 21

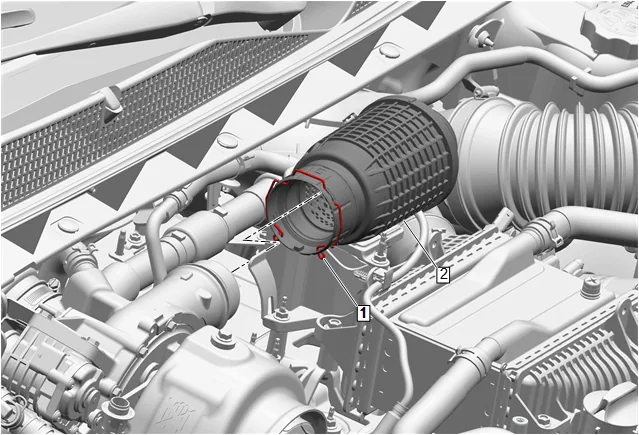

  1. Release the retaining spring (1).
  2. Intake Manifold Resonator (2) » Remove

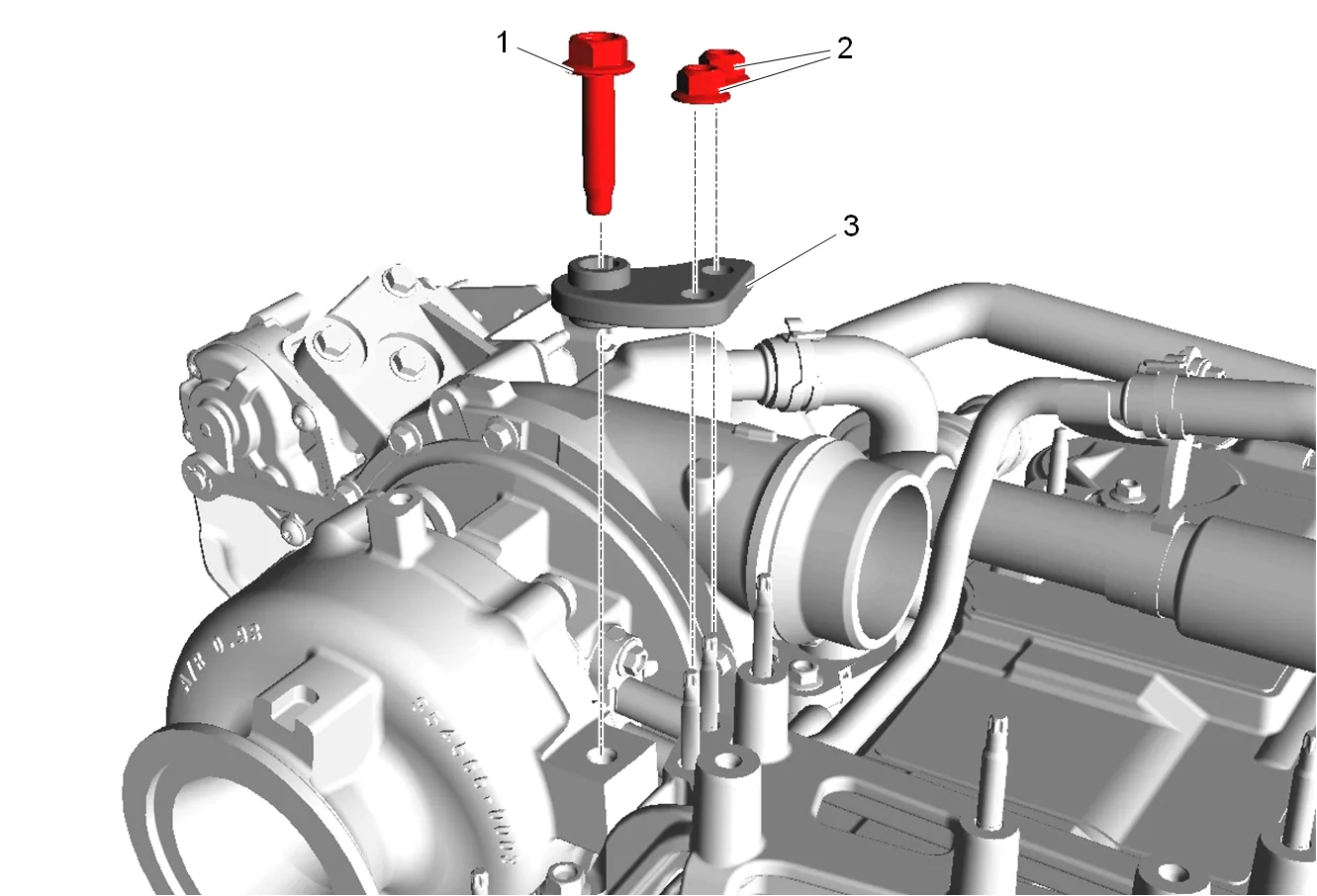

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 22
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 22
  1. Turbocharger Bracket Bolt (1) » Remove

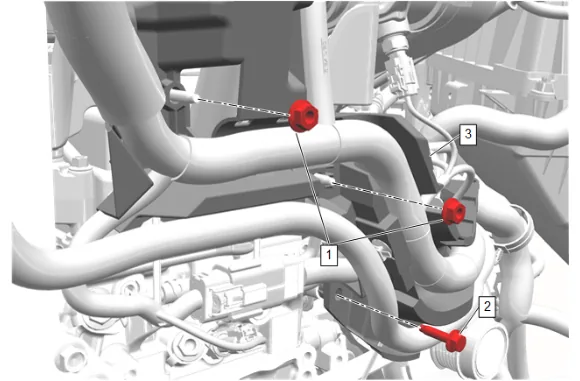

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 23
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 23
  1. Engine Wiring Harness Bracket Nut (1) » Remove [2x]
  2. Engine Wiring Harness Bracket (3) » Reposition
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 24
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 24

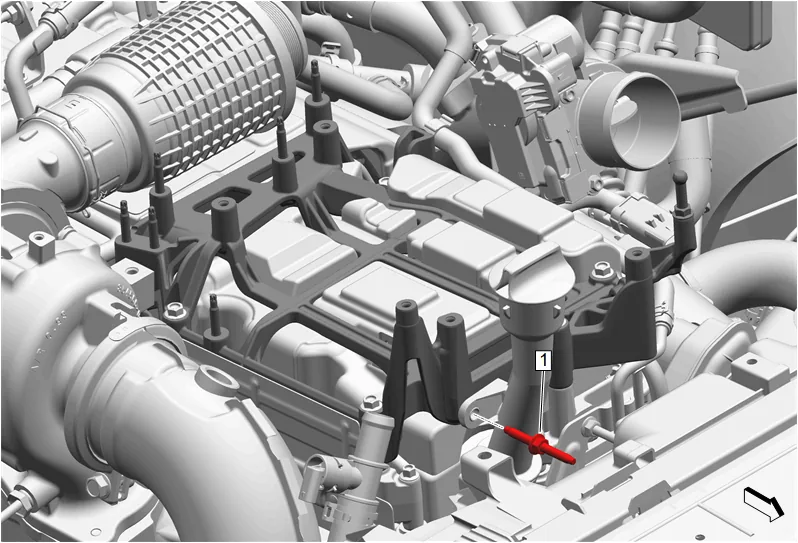

  1. Oil Filler Tube Support Stud (1) » Remove

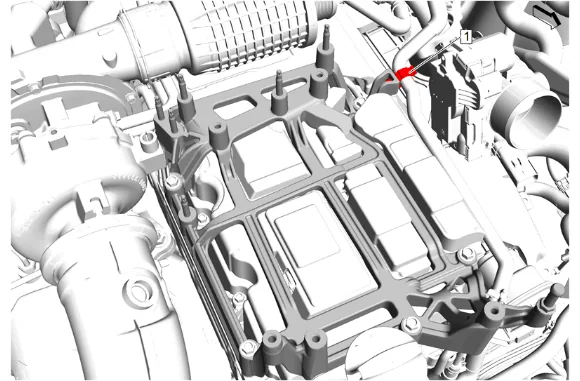

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 25
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 25
  1. Engine Coolant Air Bleed Hose Clip (1) » Remove

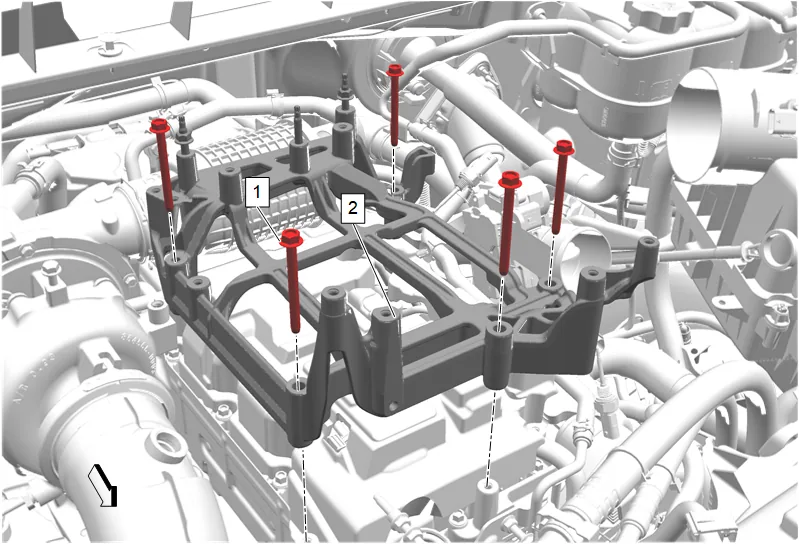

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 26
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 26
  1. Charge Air Cooler Bracket Bolt (1) » Remove [5x]
  2. Charge Air Cooler Bracket (2) » Remove

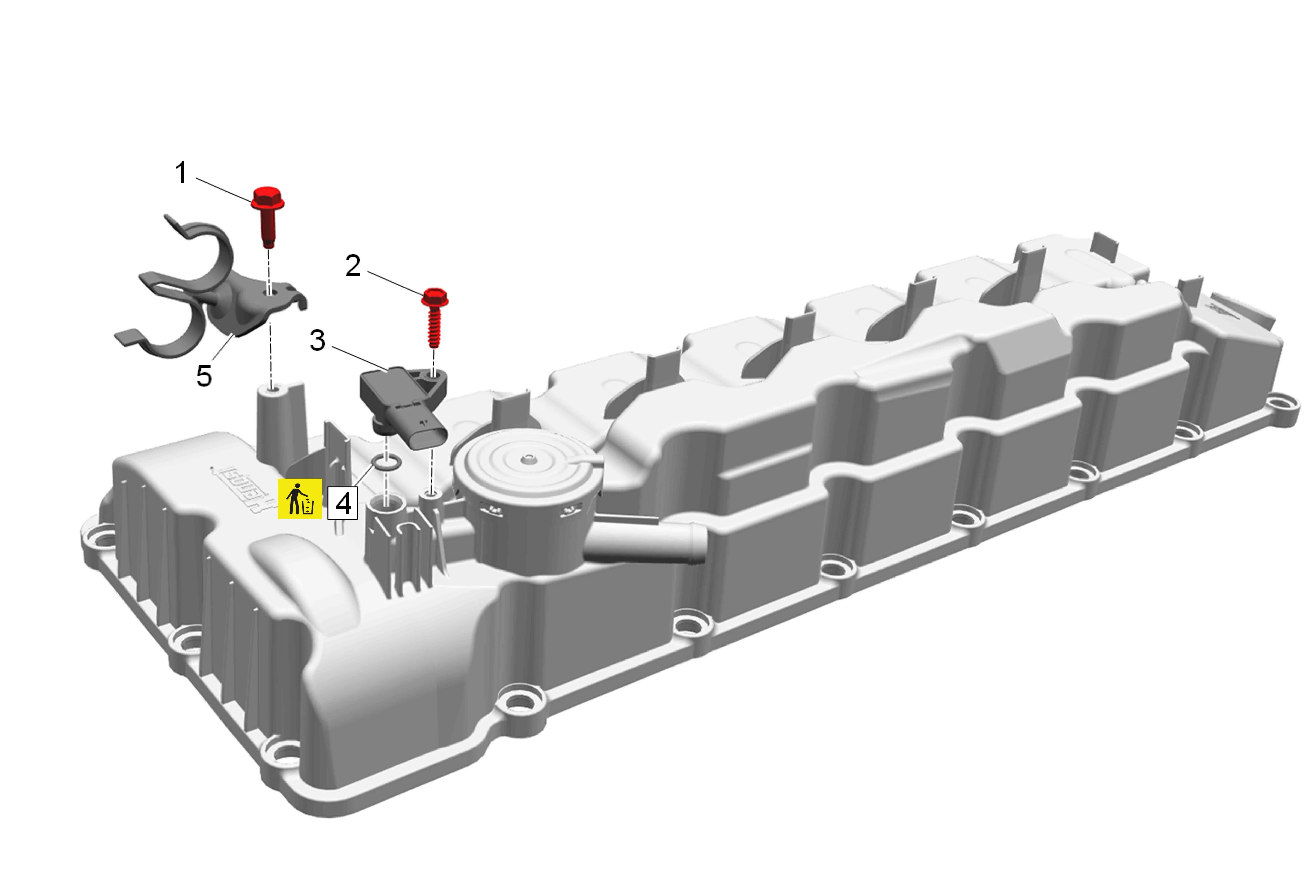

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 27
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 27
  1. Reposition harness, hoses and electrical connectors, as needed.
  2. Exhaust Gas Recirculation Pipe Bracket Bolt (1) » Remove
  3. Exhaust Gas Recirculation Pipe Bracket (5) » Remove
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 28
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 28

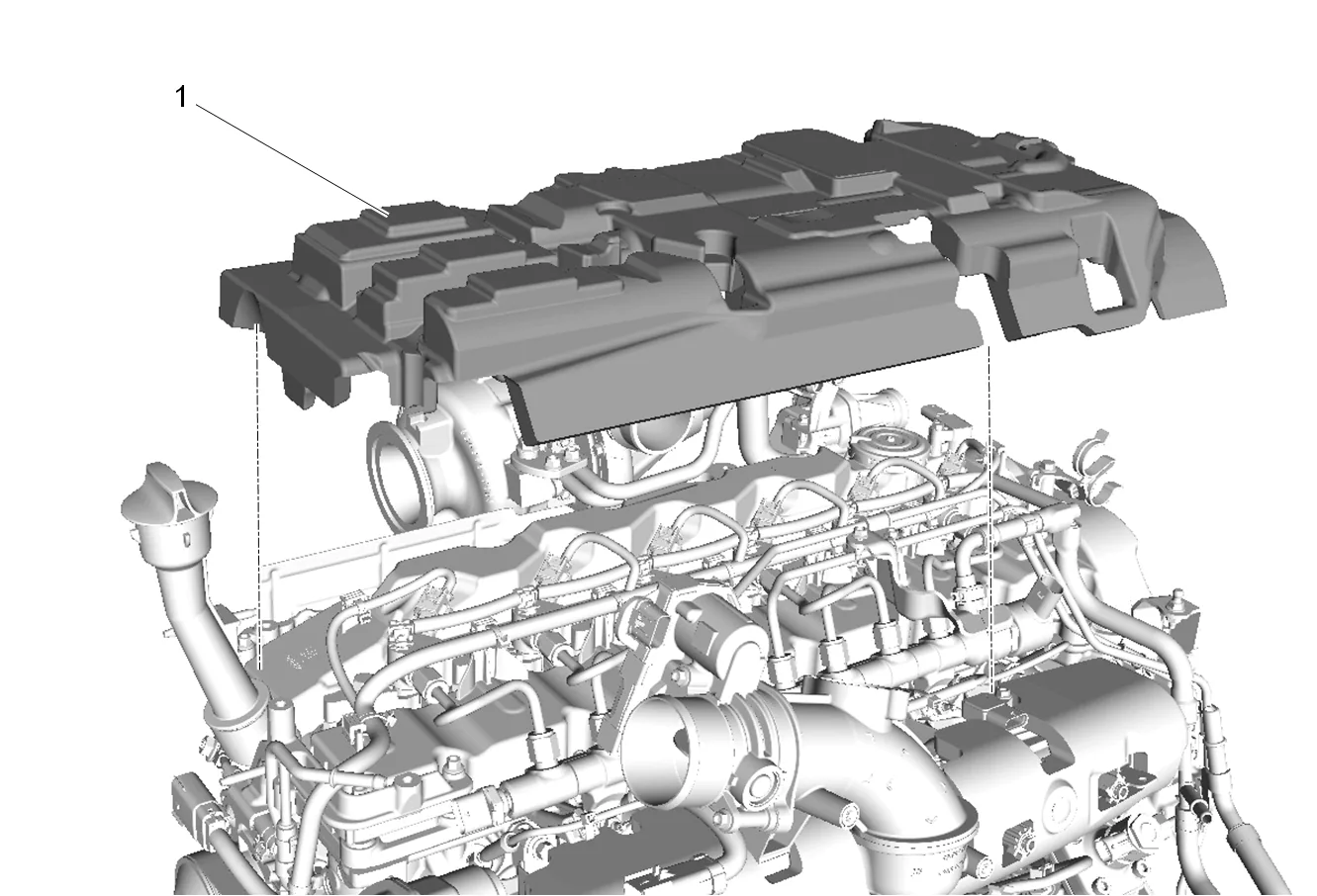

Danger: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. 50. Camshaft Housing Cover Insulator (1) » Remove 51. Front Wheelhouse Liner - Left Side » Remove — Front Wheelhouse Liner Replacement

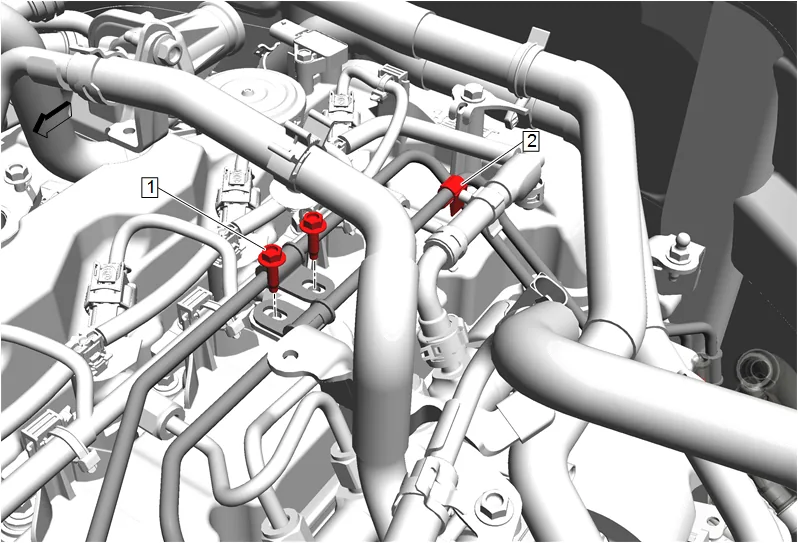

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 29
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 29
  1. Remove the 2 high pressure diesel fuel feed to rail pipe bracket bolts (1).
  2. Unclip the fuel injector fuel return pipe retainer (2).

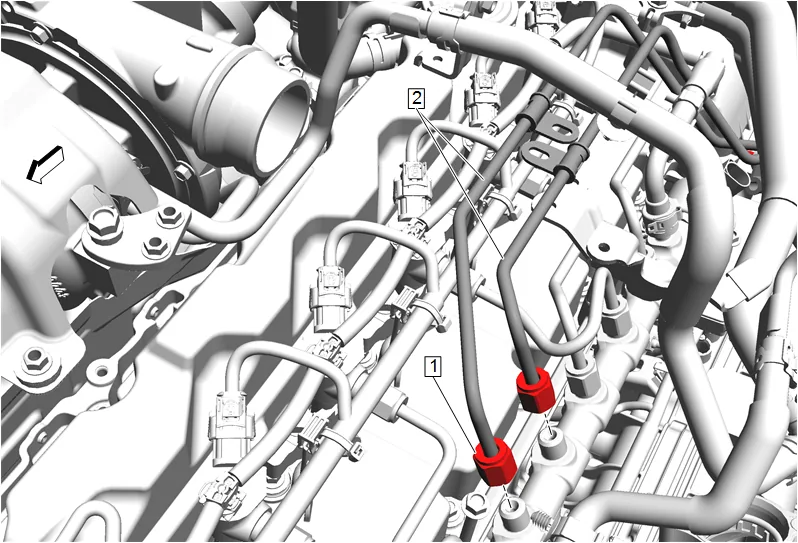

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 30
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 30
  1. Disconnect the 2 high pressure diesel fuel feed to rail pipe fittings (1) from the high pressure diesel fuel injection rail.

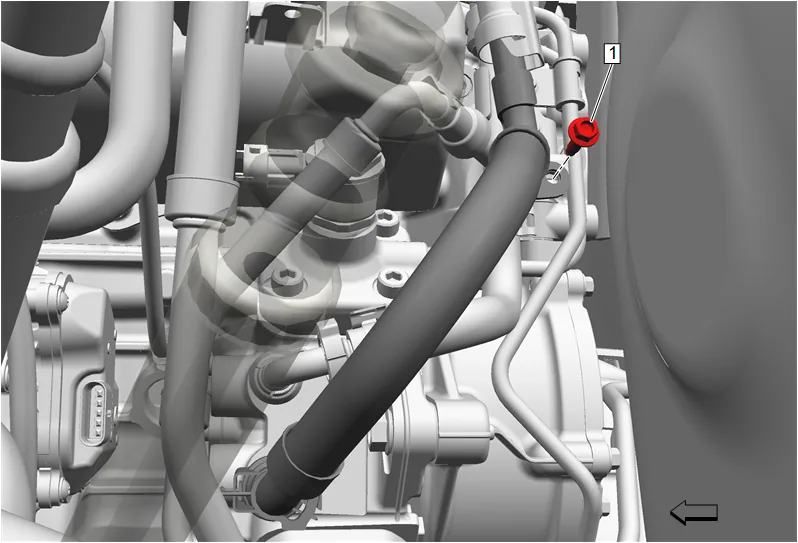

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 31
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 31
  1. Fuel Feed Pipe Clip Bolt (1) » Remove

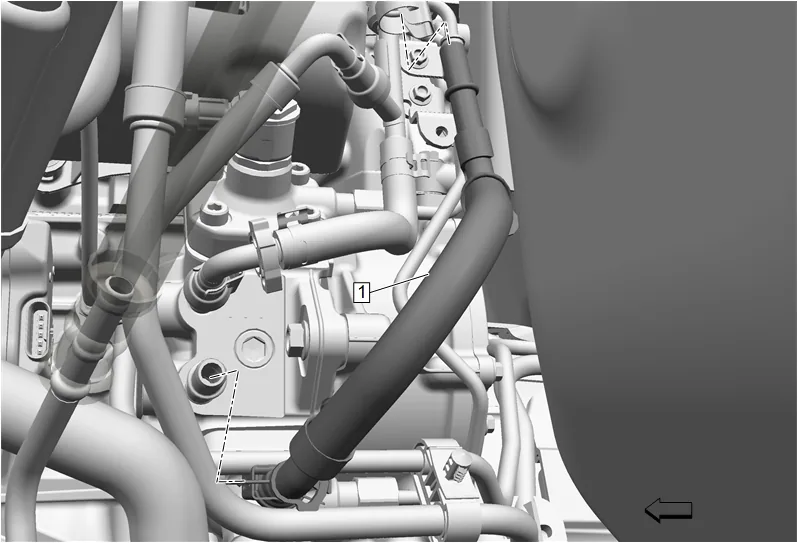

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 32
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 32
  1. Fuel Pump Fuel Feed Hose (1) » Disconnect [2x] — Metal Collar Quick Connect Fitting Service
  2. Fuel Pump Fuel Feed Hose (1) » Remove

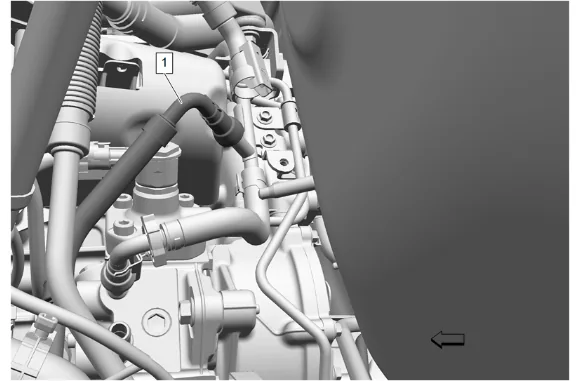

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 33
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 33
  1. Fuel Return Pipe (1) @ Diesel Fuel Separator » Disconnect — Metal Collar Quick Connect Fitting Service

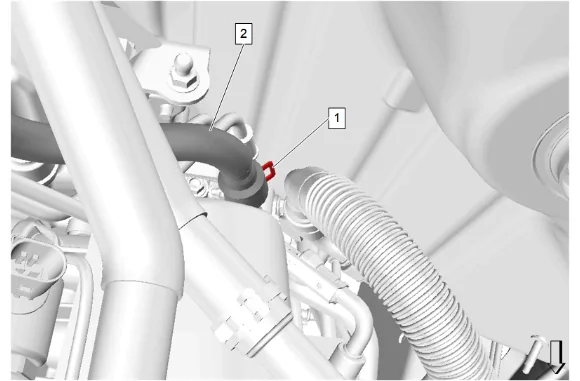

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 34
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 34
  1. Fuel Injector Fuel Return Pipe Clamp (1) » Disengage — Hose Clamp Replacement Guidelines
  • Spring Type
  1. Fuel Injection Fuel Return Pipe (2) » Reposition

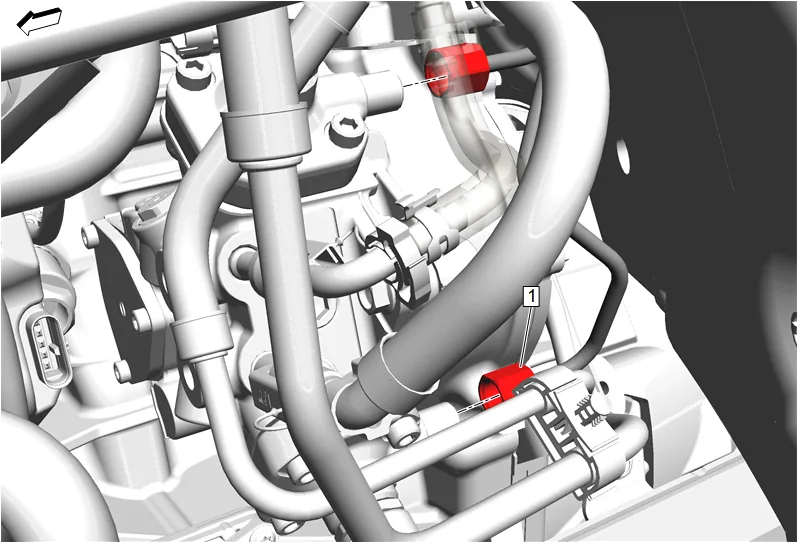

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 35
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 35
  1. Disconnect the 2 high pressure diesel fuel feed to rail pipe fittings (1) from the high pressure diesel fuel pump.

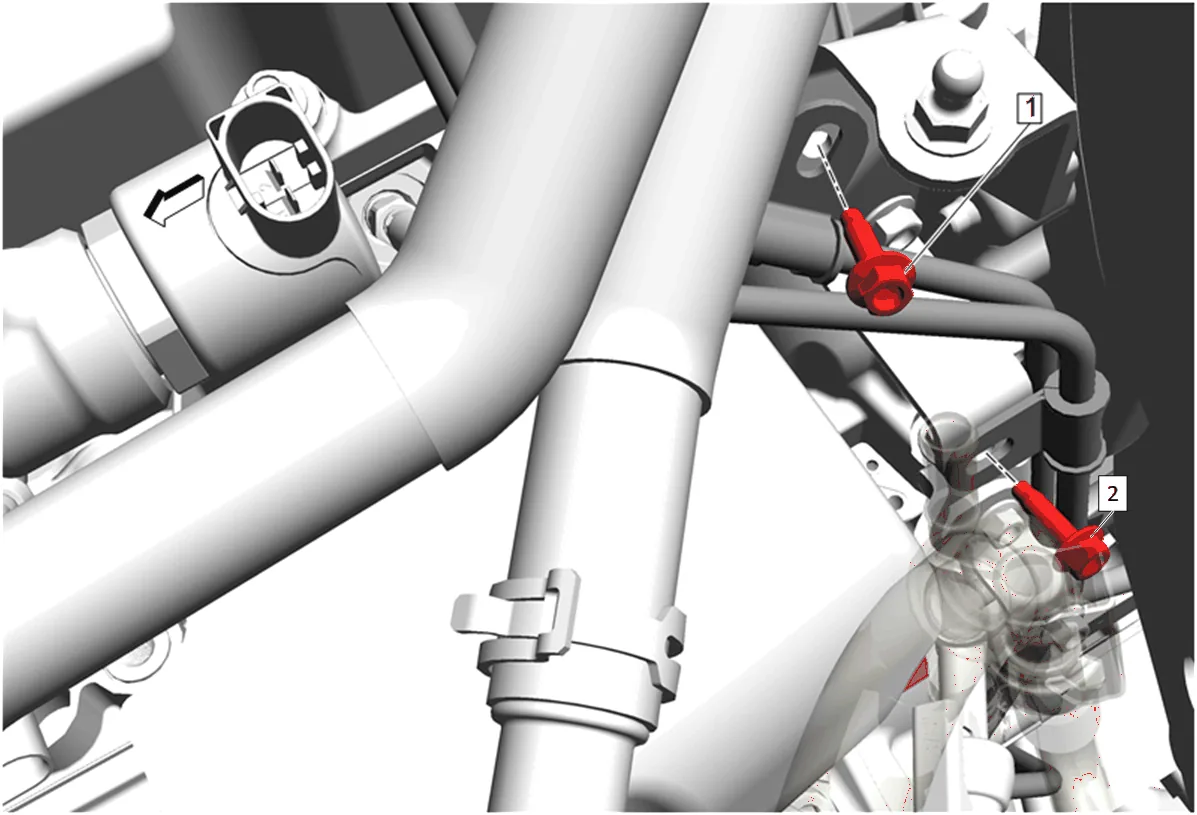

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 36
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 36
  1. Remove the 2 high pressure diesel fuel feed to rail pipe bracket bolts (1).

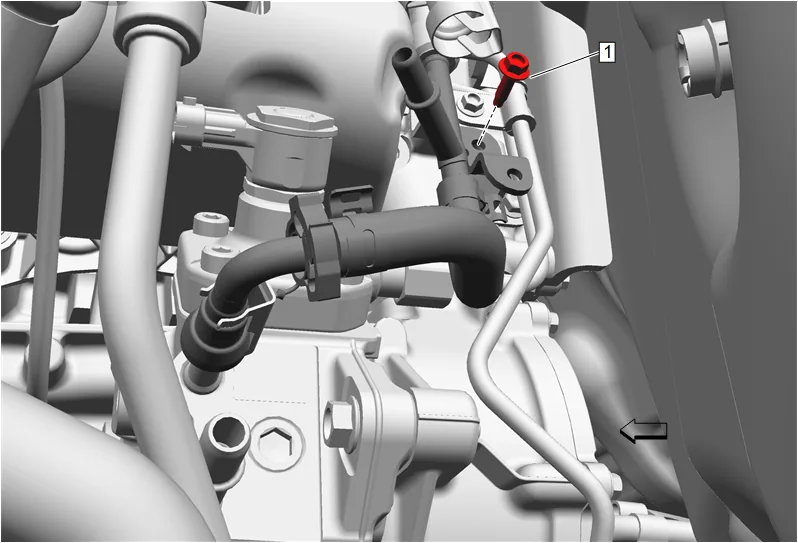

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 37
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 37
  1. Diesel Fuel Separator Bracket Bolt (1) » Remove

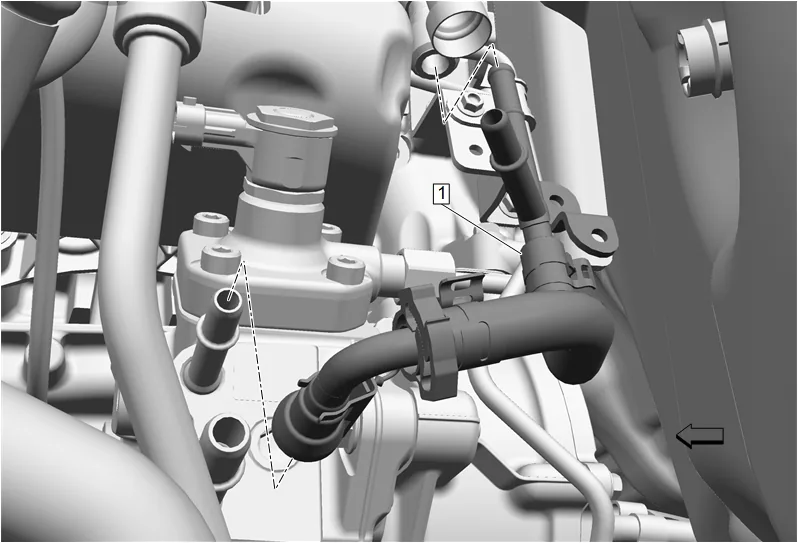

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 38
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 38
  1. Diesel Fuel Separator (1) » Disconnect — Metal Collar Quick Connect Fitting Service
  2. Diesel Fuel Separator (1) » Remove

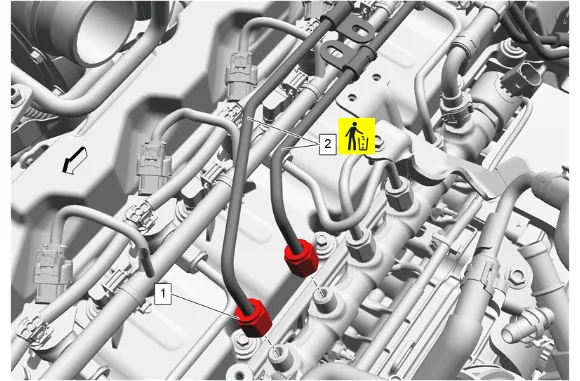

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 39
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 39
  1. Remove the high pressure diesel fuel feed to rail pipe (2) from the vehicle and DISCARD.
  2. Transmission » Remove — Automatic Transmission Removal and Installation

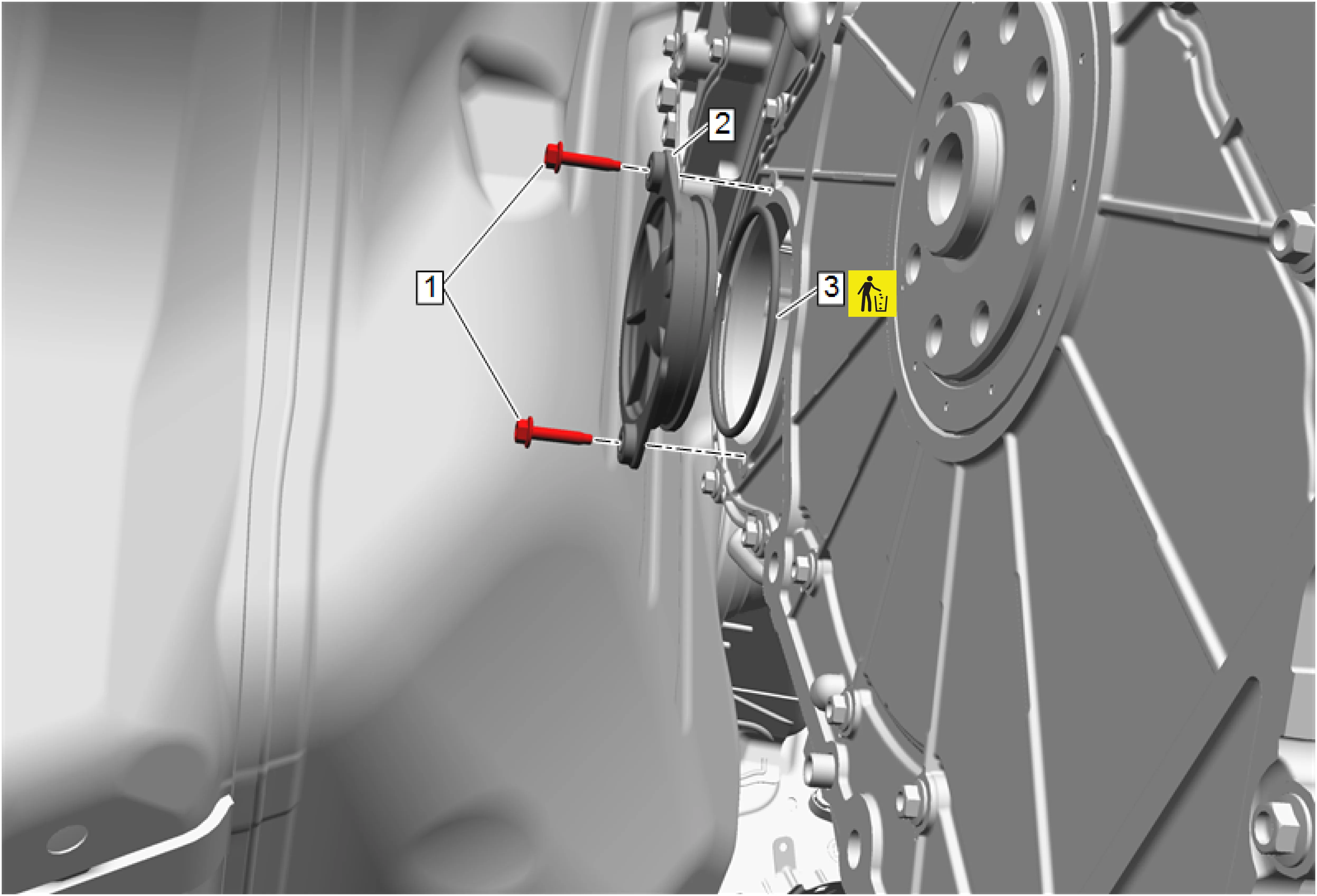

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 40
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 40
  1. Timing Chain Cover Bolt (1) » Remove [2x]
  2. Fuel Pump Access Hole Cover (2) » Remove
  3. Fuel Pump Access Hole Cover Seal (3) » Remove and DISCARD

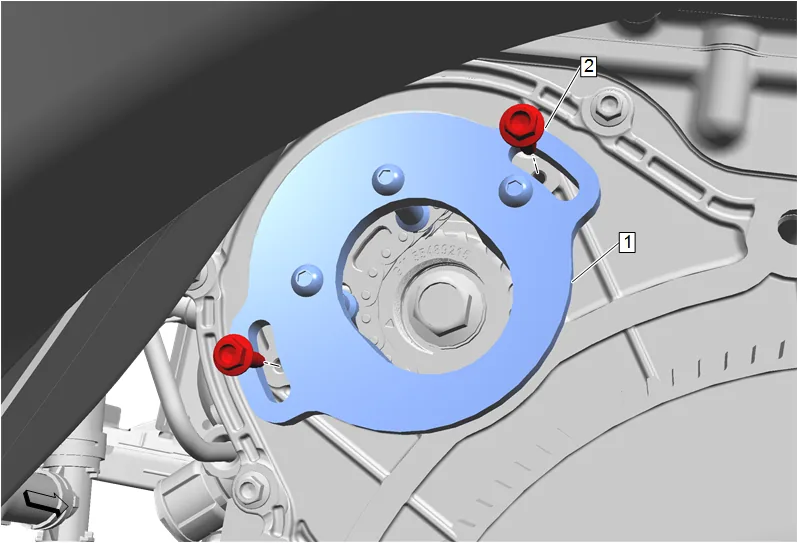

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 41
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 41
  1. Install the EN-52448-1 High Pressure Fuel Pump Tool (1) to the fuel injection pump driven sprocket by inserting the 3 dowels into the sprocket holes.
  1. Tighten the EN-52448-1 High Pressure Fuel Pump Tool (1) to the fuel pump access bolt holes using the previously removed 2 timing chain cover bolts (2). Fastener Specifications

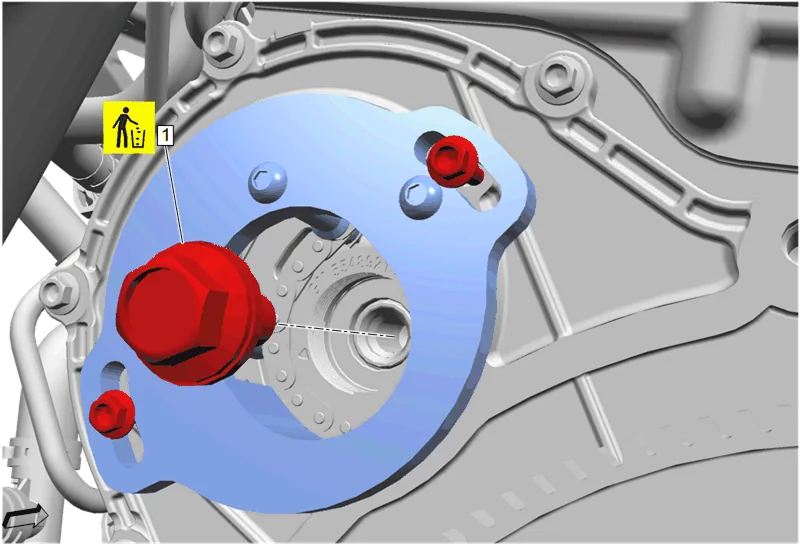

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 42
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 42
  1. Remove and DISCARD the fuel injection pump bolt (1).

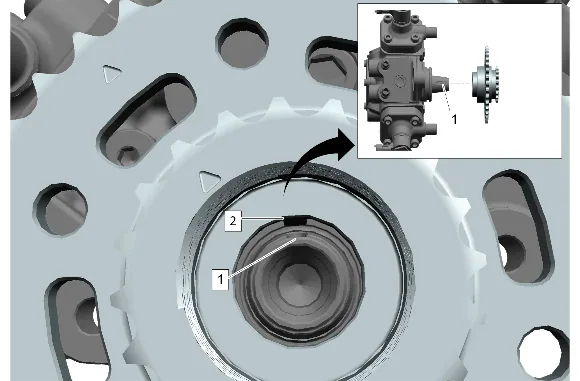

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 43
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 43
  1. Mark the high pressure diesel fuel pump shaft and the fuel injection pump driven sprocket at the slot in the shaft (1). This will help with the alignment of the high pressure diesel fuel pump and the fuel injection pump driven sprocket to keep the pump timed with the engine.
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 44
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 44

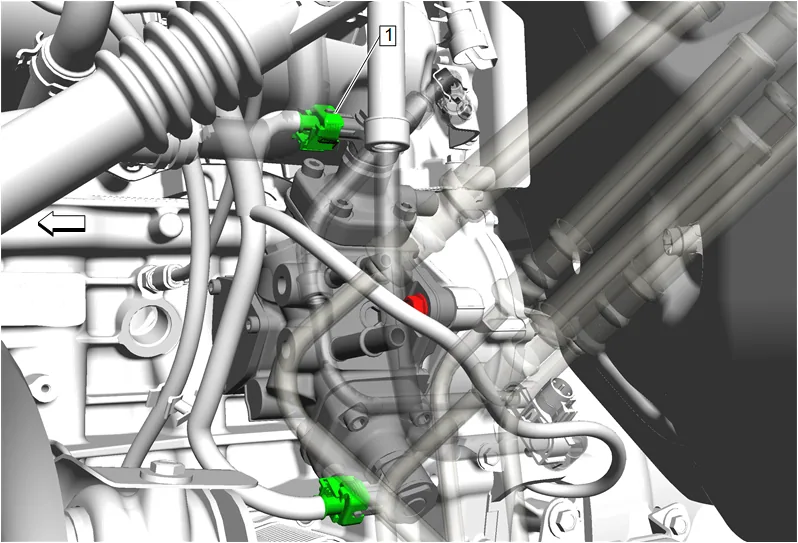

  1. Disconnect the 2 high pressure diesel fuel pump electrical connectors (1).
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 45
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 45

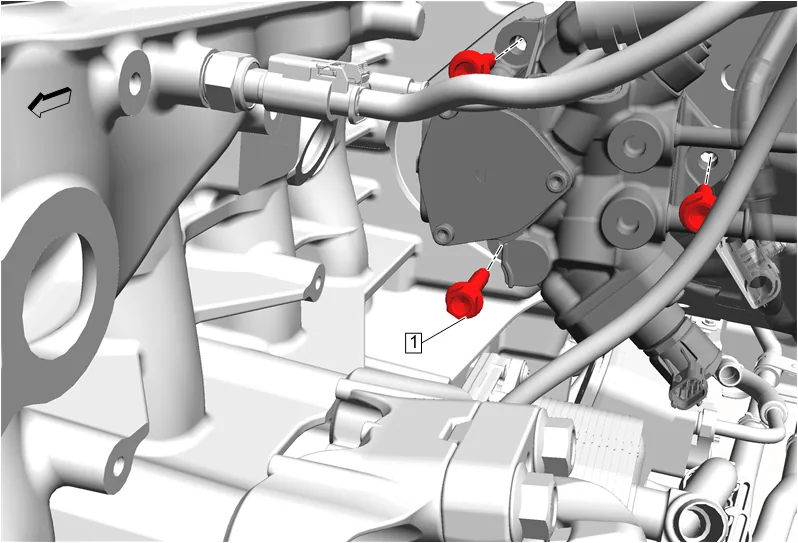

  1. Reposition hoses and harness, as needed.
  2. Disconnect the electrical connectors from the engine coolant temperature sensor and the block heater.
  3. Remove the 3 fuel injection pump bolts (1).

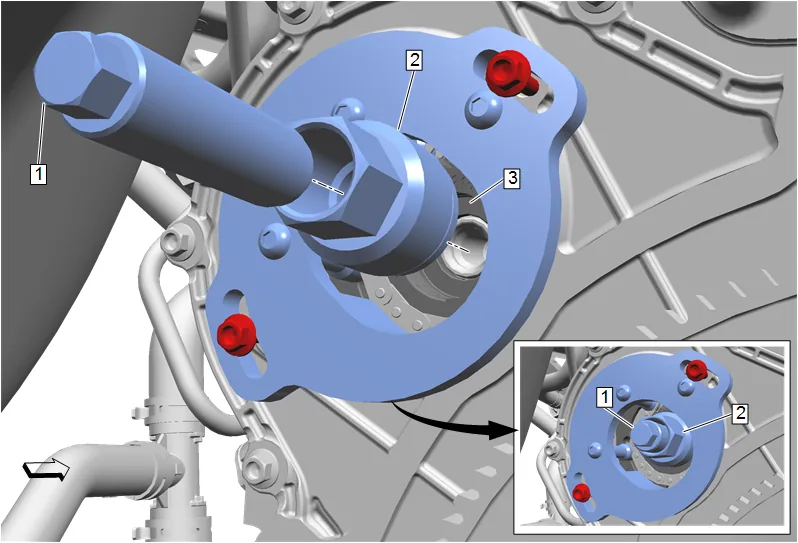

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 46
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 46
  1. Install the EN-52448-3 Nut (2) to the fuel injection pump driven sprocket (3).
  2. Install the EN-52448-2 Screw (1) to the EN-52448-3 Nut.
  3. Press out the fuel injection pump from the fuel injection pump sprocket (3), by screwing in the EN-52448-2 screw (1) into the EN-52448-3 Nut (2).
  4. Remove the EN-52448-2 Screw (1).
  5. Remove the EN-52448-3 Nut (2) from the fuel injection pump driven sprocket (3).

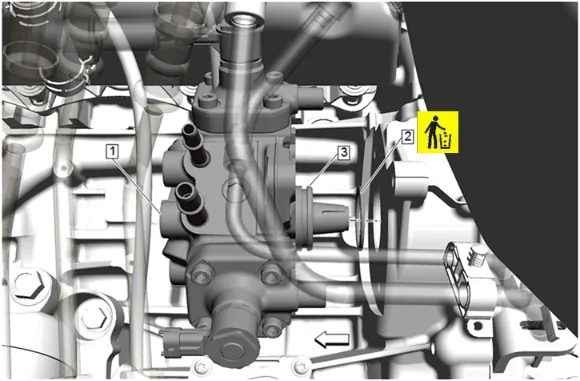

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 47
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 47
  1. Remove the high pressure diesel fuel pump (1).
  2. Remove and DISCARD the fuel injection pump seal (2). Cleaning and Inspection Procedure - Required
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 48
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 48
  1. Inspect the charge air cooler inlet air hose (2): 1.1. Use dish soap and water to clean the inside of the charge air cooler inlet air hose (2). Clean the interior of the hose, and allow to completely dry. Ensure any oil residue is removed from the hose internal interface surfaces. 1.2. Inspect the interior of the charge air cooler inlet air hose (2) for tears or delamination. Replace the hose if damage is found. 1.3. Inspect the charge air cooler inlet air hose clamps (1). Replace the charge air cooler inlet air hose (2) if damage is found or the clamp components are missing.
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 49
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 49
  1. Inspect the charge air cooler outlet air hose (2): 2.1. Use dish soap and water to clean the inside of the charge air cooler outlet air hose (2). Clean the interior of the hose, and allow to completely dry. Ensure any oil residue is removed from the hose internal interface surfaces. 2.2. Inspect the interior of the charge air cooler outlet air hose (2) for tears or delamination. Replace the hose if damage is found. 2.3. Inspect the charge air cooler outlet air hose clamps (1). Replace the charge air cooler outlet air hose (2) if damage is found or the clamp components are missing. Cleaning and Inspection Procedure - Conditional
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 50
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 50
  1. Clean the high pressure diesel fuel pump (1) mating surfaces.
  2. Inspect the high pressure diesel fuel pump (1) for damage.
  3. Replace fuel injection pump (1) if any damage is found.
  4. Inspect the high pressure diesel fuel pump shaft notch (2) for damage.
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 51
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 51

  1. Inspect the keyway (1) on the sprocket for damage. Installation Procedure

  2. Mark the NEW high pressure diesel fuel pump shaft in the same position as the marks on the old high pressure diesel fuel pump for ease of installation and ensuring it is timed correctly with the engine timing.

  3. Lubricate the high pressure diesel fuel pump shaft (3). Adhesives, Fluids, Lubricants, and Sealers

  4. Use the marks on the pump shaft and the sprocket to align and install the high pressure diesel fuel pump (1).

  5. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 4.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 4.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 4.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 4.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  1. Install the 3 fuel injection pump bolts (1) and tighten. Fastener Specifications

  2. Connect the electrical connectors to the engine coolant temperature sensor and the block heater.

  3. Position the hoses and harness as needed.

  4. Connect the 2 high pressure diesel fuel pump electrical connectors (1).

  5. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 9.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 9.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 9.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 9.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  1. Install a NEW fuel injection pump bolt (1) and tighten. Fastener Specifications

  2. Remove the EN-52448-1 High Pressure Fuel Pump Tool.

  3. Fuel Pump Access Hole Cover Seal (3) » Install NEW

  4. Fuel Pump Access Hole Cover (2) » Install

  5. Timing Chain Cover Bolt (1) » Install and tighten [2x] — Fastener Specifications

  6. Transmission » Install — Automatic Transmission Removal and Installation

  7. Install a NEW high pressure diesel fuel feed to rail pipe (2)

  8. Hand tighten the 2 high pressure diesel fuel feed to rail pipe fittings (1) to the high pressure diesel fuel injection rail.

  9. Install the 2 high pressure diesel fuel feed to rail pipe bracket bolts (1) and tighten. Fastener Specifications

  10. Attach the fuel injector fuel return pipe retainer (2).

  11. Install the 2 high pressure diesel fuel feed to rail pipe bracket bolts (1) and tighten. Fastener Specifications

  12. Hand tighten the 2 high pressure diesel fuel feed to rail pipe fittings (1) to the high pressure diesel fuel pump.

  13. Tighten the high pressure diesel fuel feed to rail pipe fittings to both the high pressure diesel fuel pump and the high pressure diesel fuel injection rail. Fastener Specifications

  14. Diesel Fuel Separator (1) » Install

  15. Diesel Fuel Separator (1) » Connect — Metal Collar Quick Connect Fitting Service

  16. Diesel Fuel Separator Bracket Bolt (1) » Install and tighten — Fastener Specifications

  17. Fuel Injection Fuel Return Pipe (2) » Install

  18. Fuel Injector Fuel Return Pipe Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

  19. Fuel Return Pipe (1) @ Diesel Fuel Separator » Connect — Metal Collar Quick Connect Fitting Service

  20. Fuel Pump Fuel Feed Hose (1) » Install

  21. Fuel Pump Fuel Feed Hose (1) » Connect [2x] — Metal Collar Quick Connect Fitting Service

  22. Fuel Feed Pipe Clip Bolt (1) » Install and tighten — Fastener Specifications

  23. Front Wheelhouse Liner - Left Side » Install — Front Wheelhouse Liner Replacement

Danger: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. 33. Camshaft Housing Cover Insulator (1) » Install

  1. Exhaust Gas Recirculation Pipe Bracket (5) » Install

  2. Exhaust Gas Recirculation Pipe Bracket Bolt (1) » Install and tighten — Fastener Specifications

  3. Reposition harness, hoses, and connect electrical connectors as needed.

  4. Charge Air Cooler Bracket (2) » Install

  5. Charge Air Cooler Bracket Bolt (1) » Install and tighten [5x] — Fastener Specifications

  6. Engine Coolant Air Bleed Hose Clip (1) » Install

  7. Oil Filler Tube Support Stud (1) » Install and tighten — Fastener Specifications

  8. Engine Wiring Harness Bracket (3) » Install

  9. Engine Wiring Harness Bracket Nut (1) » Install and tighten [2x] — Fastener Specifications

  10. Turbocharger Bracket Bolt (1) » Install and tighten — Fastener Specifications

  11. Intake Manifold Resonator (2) » Install

  12. Engage the retaining spring (1).

  13. Turbocharger Heat Shield (1) » Install

  14. Turbocharger Heat Shield Nut (2) » Install and tighten — Fastener Specifications

  15. Turbocharger Heat Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

  16. Upper Intake Manifold Bracket (2) » Install

  17. Upper Intake Manifold Brace Nut (1) » Install and tighten [3x] — Fastener Specifications

  18. Charge Air Cooler (1) » Install

  19. Charge Air Cooler Bolt (1) » Install and tighten [4x] — Fastener Specifications

  20. Charge Air Cooler Inlet Air Hose (2) » Install

  21. Charge Air Cooler Inlet Air Hose Clamp (1) » Tighten [2x] — Fastener Specifications

  22. Charge Air Cooler Outlet Air Hose (2) » Install

  23. Charge Air Cooler Outlet Air Hose Clamp (1) » Tighten [2x] — Fastener Specifications

  24. Connect the nitrogen oxides sensor electrical connector.

  25. Wiring Harness Retainer (4) @ Charge Air Cooler » Install

  26. Wiring Harness Retainer (2) @ Charge Air Cooler » Install [3x]

  27. Electrical Connector (1) @ Charge Air Cooler » Connect [2x]

  28. Install a NEW exhaust gas recirculation cooler inlet pipe gasket (3).

  29. Install a NEW exhaust gas recirculation pipe seal (2).

  30. Install the exhaust gas recirculation pipe (1).

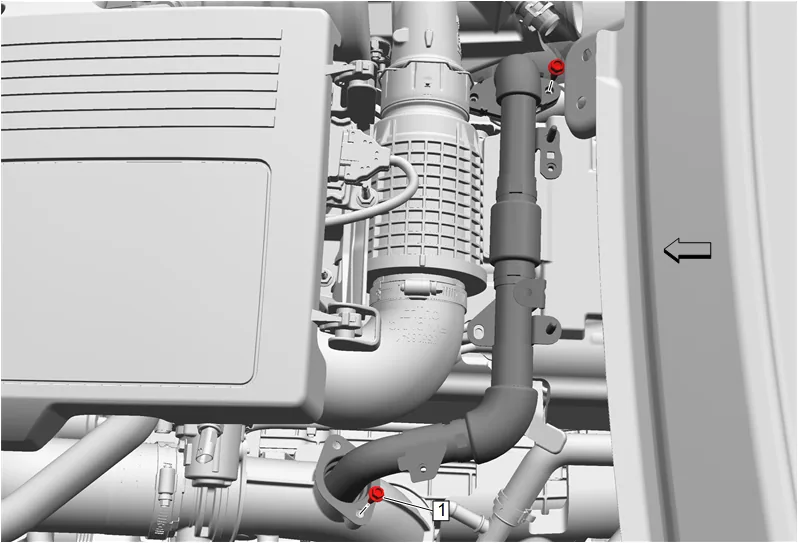

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 52
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 52

  1. Exhaust Gas Recirculation Pipe Bolt (1) » Install and tighten — Fastener Specifications

  2. Exhaust Gas Recirculation Outlet Pipe Bolt (1) » Install and tighten [2x] — Fastener Specifications.

  3. Exhaust Gas Recirculation Outlet Pipe Bolt (2) » Install and tighten — Fastener Specifications

  4. Install the turbocharger coolant return hose clip (1).

  5. Turbocharger Coolant Feed and Return Pipe Bolt (3) » Install and tighten — Fastener Specifications

  6. Install and tighten the 2 exhaust gas recirculation pipe bolts (1). Fastener Specifications

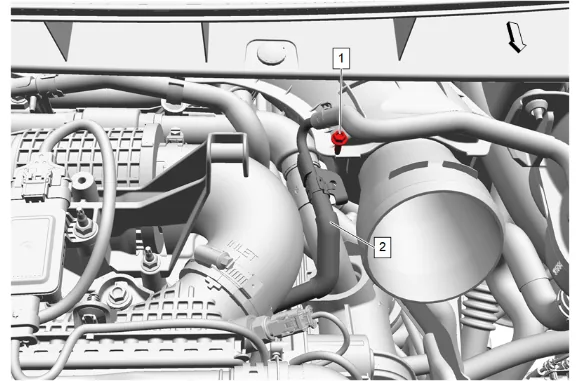

High Pressure Diesel Fuel Pump Replacement (2WD) — figure 53
High Pressure Diesel Fuel Pump Replacement (2WD) — figure 53

  1. Engine Coolant Air Bleed Hose (2) » Reposition

  2. Engine Coolant Outlet Pipe Bracket Bolt (1) » Install and tighten — Fastener Specifications

  3. Install the rear engine wiring harness channel (2).

  4. Engine Wiring Harness Bracket Nut (1) » Install and tighten [3x] — Fastener Specifications.

  5. Air Cleaner Outlet Duct (2) » Install

  6. Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications

  7. Air Cleaner Outlet Front Duct (2) » Install

  8. Air Cleaner Outlet Duct Clamp (1) » Tighten [2x] — Fastener Specifications

  9. Oil Filler Cap » Remove

  10. Intake Manifold Cover (2) » Install

  11. Intake Manifold Cover Bolt (1) » Install and tighten — Fastener Specifications

  12. Oil Filler Cap » Install

  13. Plenum Front Panel Outer Reinforcement » Install — Plenum Front Panel Outer Reinforcement Removal and Installation

  14. Lower the vehicle.

  15. Prime the fuel system and inspect for leaks. Fuel System Priming

  16. Perform the high pressure fuel variable reset. High Pressure Fuel Variable Reset
