Tahoe / Yukon Service Manual

Front Seat Tilt Adjuster Actuator Replacement

Removal Procedure

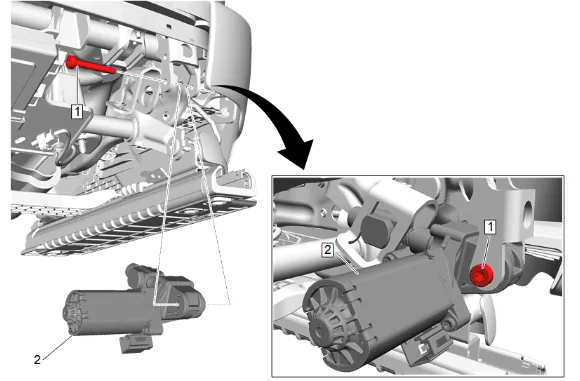

Front Seat Tilt Adjuster Actuator Replacement — figure 1
Front Seat Tilt Adjuster Actuator Replacement — figure 1

  1. Adjust the front seat to the highest position.

  2. Disconnect the electrical connector.

  3. Front Seat Tilt Adjuster Actuator Bolt (1) » Remove

  4. Front Seat Tilt Adjuster Actuator (2) » Remove Installation Procedure

  5. Front Seat Tilt Adjuster Actuator (2) » Install

  1. Front Seat Tilt Adjuster Actuator Bolt (1) » Install and tighten — Fastener Specifications
  2. Connect the electrical connector.
  3. Return the seat to its original position.
