Tahoe / Yukon Service Manual

Assist Step Shield Replacement (Link Assembly)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

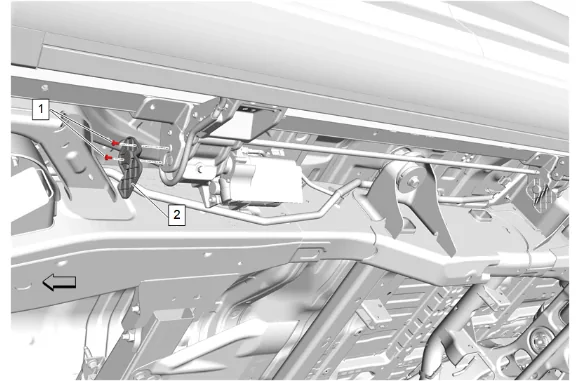

Assist Step Shield Replacement (Link Assembly) — figure 1
Assist Step Shield Replacement (Link Assembly) — figure 1

  1. Assist Step Shield Bolt (2) » Remove [2x]

  2. Assist Step Shield (1) » Remove Installation Procedure

  3. Assist Step Shield (1) » Install

  1. Assist Step Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Lower the vehicle.
