Stator Shaft Support Assembly (1)

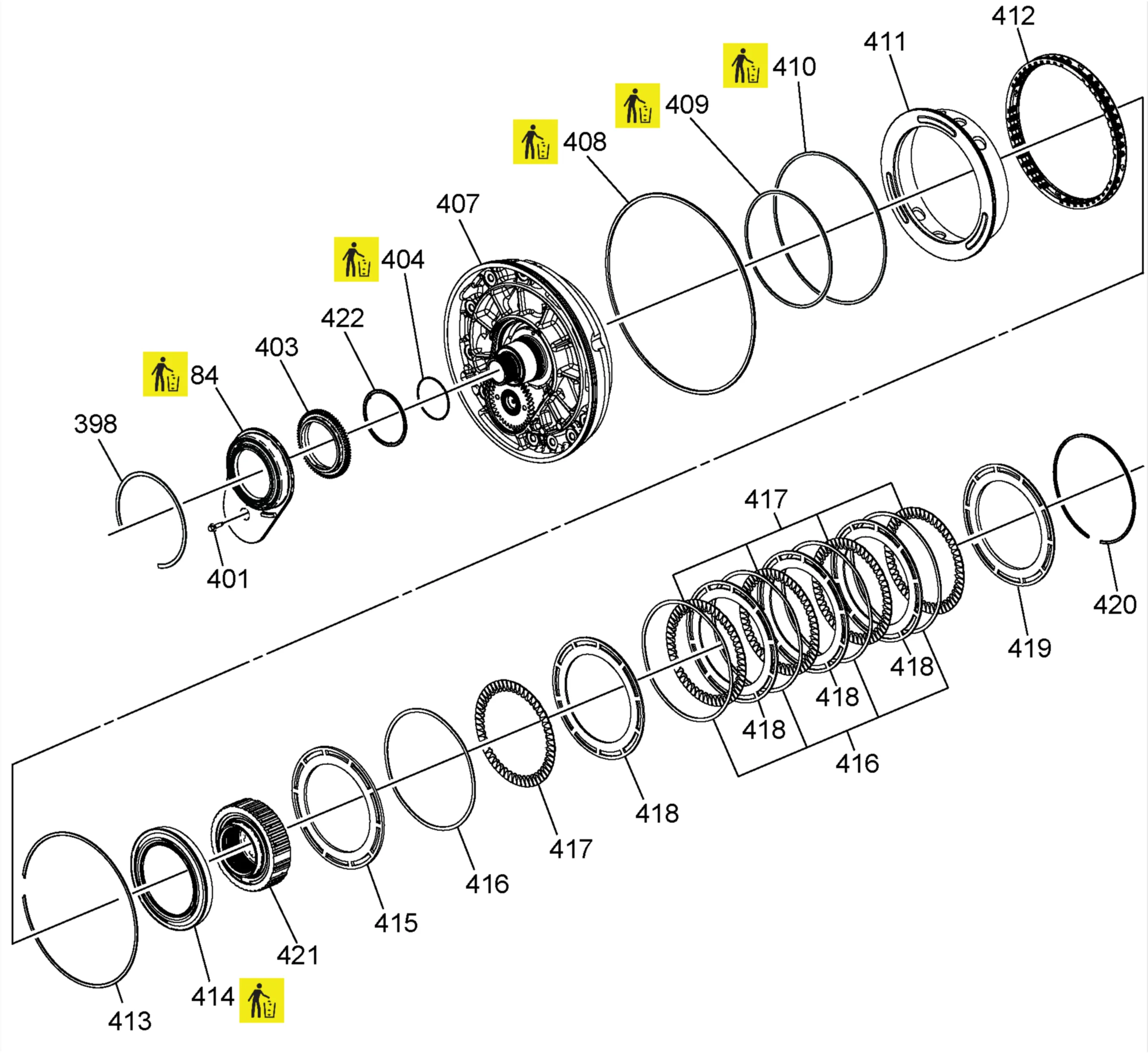

Stator Shaft Support Assembly

(84) Automatic Transmission Case Front Cover (398) Automatic Transmission Case Cover Retaining Ring (401) Automatic Transmission Case Front Cover Bolt (403) Automatic Transmission Fluid Pump Drive Gear (404) Torque Converter Fluid Seal (407) Stator Shaft Support (408) Stator Shaft Support Seal (409) 1-2-3-4-5-6-Reverse Clutch Piston Seal - Inner (410) 1-2-3-4-5-6-Reverse Clutch Piston Seal - Outer (411) 1-2-3-4-5-6-Reverse Clutch Piston (412) 1-2-3-4-5-6-Reverse Clutch Piston Return Spring (413) 1-2-3-4-5-6 Clutch Spring Retaining Ring (414) 1-2-8-9-10-Reverse Clutch Piston (415) 1-2-8-9-10-Reverse Clutch Apply Plate (416) 1-2-8-9-10-Reverse Clutch Piston Return Spring (417) 1-2-8-9-10-Reverse Fiber Clutch Plate (418) 1-2-8-9-10-Reverse Steel Clutch Plate (419) 1-2-8-9-10-Reverse Clutch Backing Plate (420) 1-2-8-9-10-Reverse Clutch Backing Plate Retaining Ring - Selective (421) Low Clutch Roller (422) Center Support Thrust Washer
