Rear Brake Caliper Replacement

Single Use Fasteners and Components Rear Brake Washer [2x] Rear Parking Brake Actuator Lever Seal

Set the parking brake in Service Mode. Parking Brake Service Mode Selection
Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

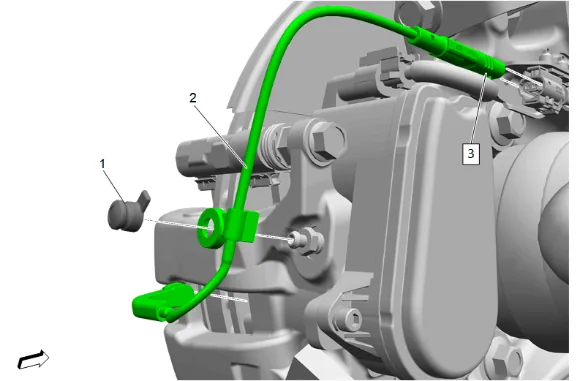

{ If equipped } Rear Brake Bleeder Valve Cap (1) » Remove
{ If equipped } Rear Disc Brake Pad Wear Sensor (2) @ Rear Disc Brake Pad » Remove

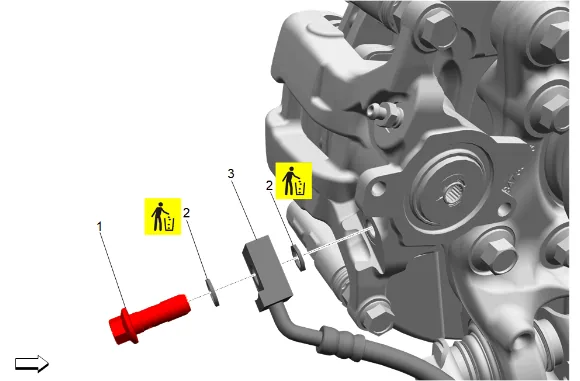

Rear Brake Hose Fitting (1) » Remove
Rear Brake Washer (2) » Remove and DISCARD [2x]
Rear Brake Hose (3) @ Rear Brake Caliper » Remove
Plug the rear brake hose fitting outlet to prevent brake fluid loss and contamination.
Cap the rear brake caliper inlet to prevent brake fluid loss and contamination.

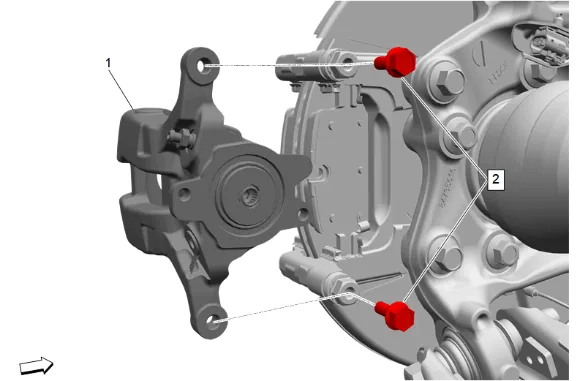

Rear Brake Caliper Guide Pin Bolt (2) » Install and tighten [2x] — Fastener Specifications
Remove the plug from the brake hose outlet.
Remove the plug the rear brake caliper inlet.
Rear Brake Washer (2) » Install NEW [2x]
Rear Brake Hose (3) @ Rear Brake Caliper » Install
Rear Brake Hose Fitting (1) » Install and tighten — Fastener Specifications

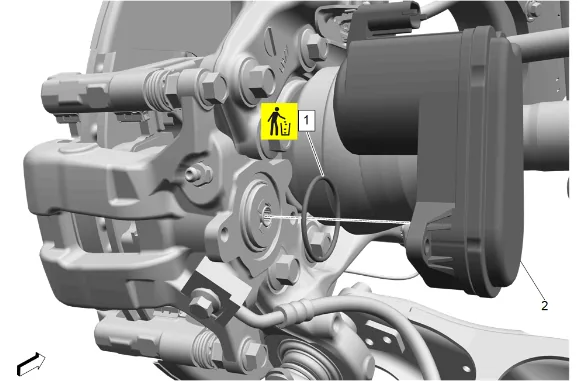

Rear Parking Brake Actuator Lever Seal (1) » Install NEW
Rear Parking Brake Actuator (2) » Install

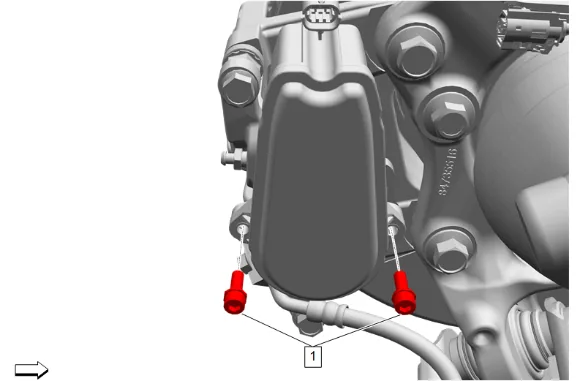

Rear Parking Brake Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications

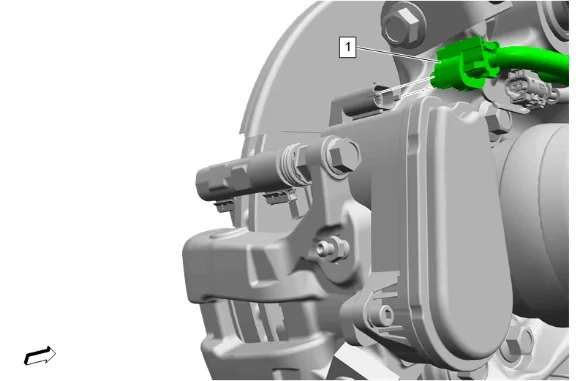

Electrical Connector (1) @ Rear Parking Brake Actuator » Connect
{ If equipped } Rear Disc Brake Pad Wear Sensor (2) » Install
{ If equipped } Connect the electrical connector. (3)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Bleed the brake system. Hydraulic Brake System Bleeding
Check for brake system leaks.
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Calibrate the park brake. Park Brake Calibration
