Component Location

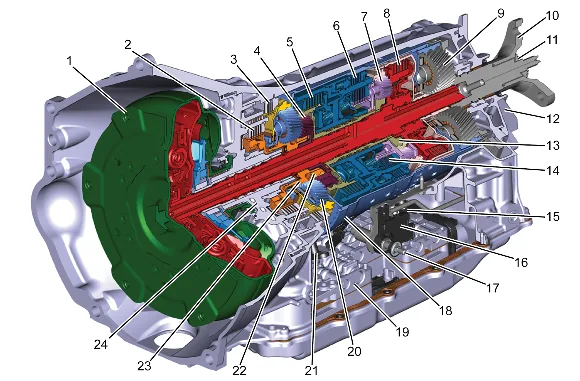

Component Location — figure 1

(1) Torque Converter (2) 1-2-8-9-10-Reverse Clutch (3) 1-2-3-4-5-6-Reverse Clutch (4) Input Carrier Assembly (5) 2-3-4-5-7-9-10 Clutch (6) 4-5-6-7-8-9-10-Reverse Clutch (7) Direct Overdrive Carrier (8) 1-3-5-6-7-8-9 Clutch (9) Output Carrier Assembly (10) Propeller Shaft Transmission Flange (11) Propeller Shaft Transmission Flange Nut (12) Automatic Transmission Case Extension (13) Direct Overdrive Sun Gear (14) 1-2-3-4-6-7-8-10-Reverse Clutch (15) Automatic Transmission Intermediate Speed Sensor (16) Automatic Transmission Manual Shift Shaft Position Switch (17) Manual Shift Shaft (18) Output Carrier Internal Gear Transfer Shell (19) Control Valve Body Assembly (20) Reaction Carrier (21) Automatic Transmission Turbine Speed Sensor (22) Input Sun Gear (23) Reaction Sun Gear (24) Stator Shaft Support
