Instrument Panel Switch Trim Plate Replacement

Removal Procedure

Instrument Panel Switch Trim Plate Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Switch Trim Plate Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Switch Trim Plate Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Switch Trim Plate Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

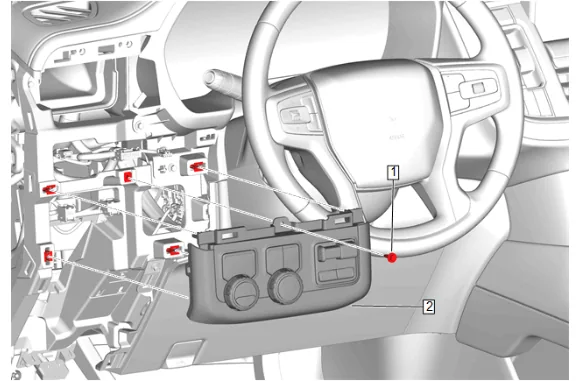

Instrument Panel Switch Trim Plate Replacement — figure 5

9. Instrument Panel Switch Trim Plate Bolt (1) » Remove

10. Disconnect the electrical connectors.

11. Instrument Panel Switch Trim Plate (2) » Remove

12. Transfer components as necessary. Installation Procedure

13. Connect the electrical connectors.

14. Instrument Panel Switch Trim Plate (2) » Install

Caution

Refer to Fastener Caution.

3. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

4. Connect the electrical connectors.

5. Instrument Panel Trim Pad (2) » Install

6. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Instrument Panel Trim Plate Applique (1) » Install

8. Instrument Panel Fuse Block Access Hole Cover (1) » Install

9. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
