Tahoe / Yukon Service Manual

Rear Seat Heater Vent Control Module Replacement

Removal Procedure

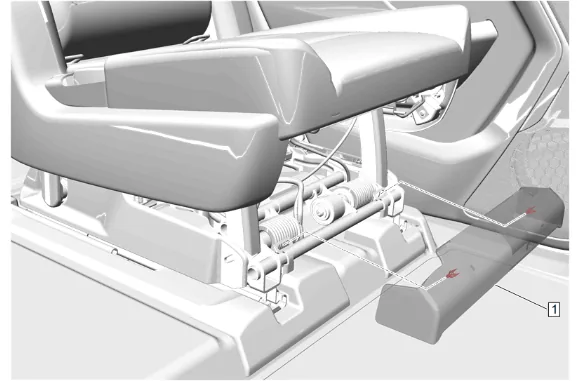

Rear Seat Heater Vent Control Module Replacement — figure 1
Rear Seat Heater Vent Control Module Replacement — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Seat Riser Finish Cover - Passenger Side (1) » Remove
Rear Seat Heater Vent Control Module Replacement — figure 2
Rear Seat Heater Vent Control Module Replacement — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clip.
  2. Rear Seat Riser Finish Cover - Passenger Side (1) » Remove [2x]

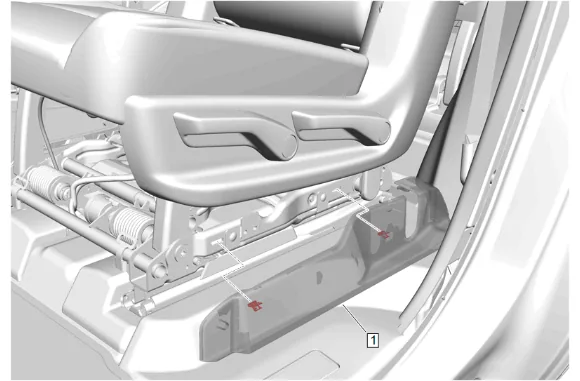

Rear Seat Heater Vent Control Module Replacement — figure 3
Rear Seat Heater Vent Control Module Replacement — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Remove the passenger side outboard rear seat riser inner finish cover (1).

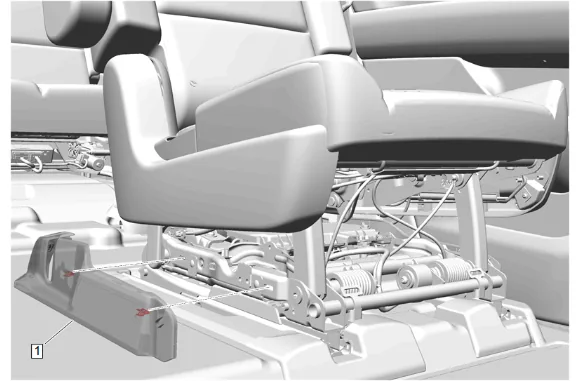

Rear Seat Heater Vent Control Module Replacement — figure 4
Rear Seat Heater Vent Control Module Replacement — figure 4
  1. If necessary, reposition the rear seats to access the passenger side inboard rear seat riser inner finish cover (1)
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Using a suitable plastic trim tool, release the retaining tabs.
  4. Remove the passenger side inboard rear seat riser inner finish cover (1).
Rear Seat Heater Vent Control Module Replacement — figure 5
Rear Seat Heater Vent Control Module Replacement — figure 5
  1. Rear Seat Riser Finish Cover Retainer - Passenger Side (1) » Remove [2x]
  2. Release the J-channel retainers from the passenger side rear seat cushion cover and rear seat cushion trim panel (2).

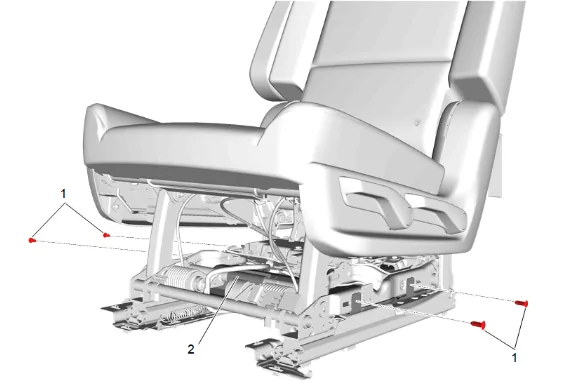

Rear Seat Heater Vent Control Module Replacement — figure 6
Rear Seat Heater Vent Control Module Replacement — figure 6
  1. Release the remaining J-channel retainers on the passenger side rear seat cushion trim panel  (2).
  2. Rear Seat Back Opening Finish Cover Retainer - Passenger Side (1) » Remove [4x]

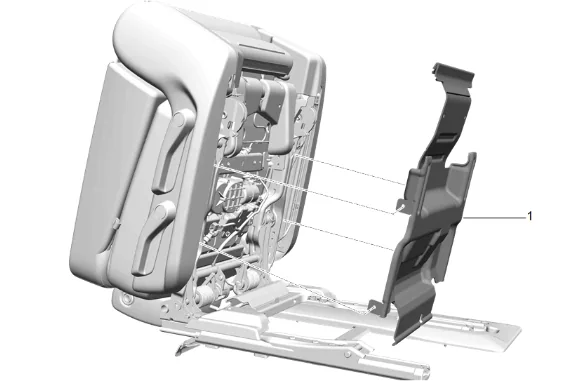

Rear Seat Heater Vent Control Module Replacement — figure 7
Rear Seat Heater Vent Control Module Replacement — figure 7
  1. Place the rear seat in the fold and tumble position.
  2. Rear Seat Cushion Trim Panel - Passenger Side (1) » Remove

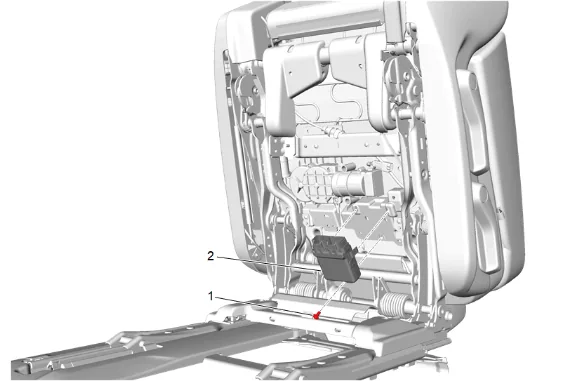

Rear Seat Heater Vent Control Module Replacement — figure 8
Rear Seat Heater Vent Control Module Replacement — figure 8

  1. Disconnect the electrical connectors.

  2. Front Seat Bolt (1) » Remove

  3. Release the rear seat heater vent control module retaining tabs.

  4. Rear Seat Heater Vent Control Module (2) » Remove Installation Procedure

  5. Rear Seat Heater Vent Control Module (2) » Install

  1. Front Seat Bolt (1) » Install and tighten — Fastener Specifications
  2. Connect the electrical connectors.
  1. Rear Seat Cushion Trim Panel - Passenger Side (1) » Install
  2. Return the rear seat to the original position.
  1. Rear Seat Back Opening Finish Cover Retainer - Passenger Side (1) » Install [4x]
  2. Secure the J-channel retainers on the passenger side rear seat cushion trim panel (2).
  1. Secure the J-channel retainers of the passenger side rear seat cushion cover and rear seat cushion trim panel (2).
  2. Rear Seat Riser Finish Cover Retainer - Passenger Side (1) » Install [2x]
  1. Install the passenger side inboard rear seat riser inner finish cover (1).
  2. If necessary, return the rear seats to their original positions.
  1. Install the passenger side outboard rear seat riser inner finish cover (1).
  1. Rear Seat Riser Finish Cover - Passenger Side (1) » Install [2x]
  1. Rear Seat Riser Finish Cover - Passenger Side (1) » Install
