Front Floor Console Wiring Harness Replacement (DCH)

Removal Procedure

1. Front Seat - Right Side » Remove — Front Seat Removal and Installation

Front Floor Console Wiring Harness Replacement (DCH) — figure 1

2. Using a flat-bladed plastic trim tool, release the retaining clips.

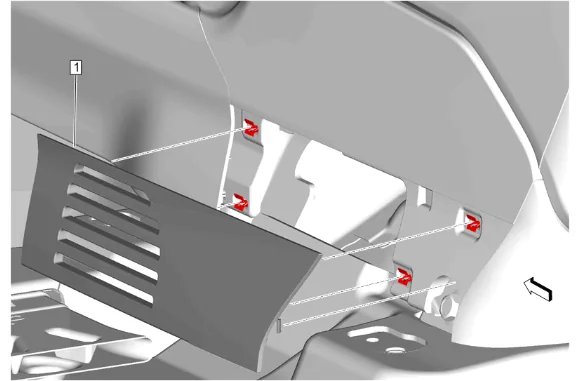

3. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 2

4. Using a flat-bladed plastic trim tool, release the retaining clips.

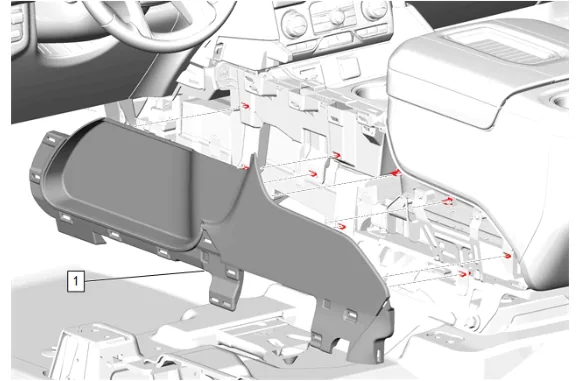

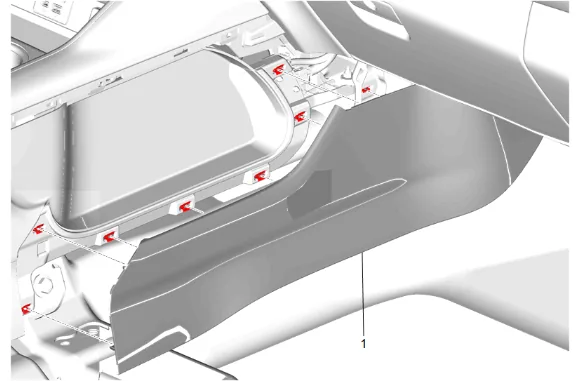

5. Front Floor Console Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 3

Note

Use a flat bladed plastic trim tool.

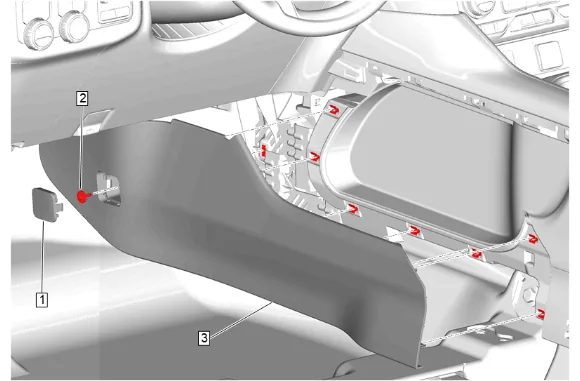

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Move the front seat to access the retainers.
9. Front Floor Console Extension Panel (3) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 4

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 5

Note

You may have to slide the armrest back to better access the retainers.

12. Using a flat-bladed plastic trim tool, release the retaining clips.

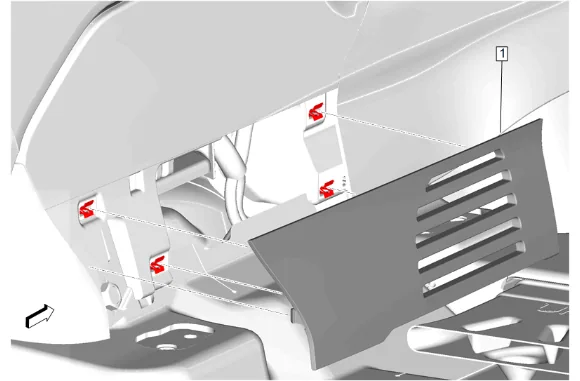

13. Front Floor Console Rear Trim Lower Panel (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 6

14. Using a flat-bladed plastic trim tool, release the retaining clips.

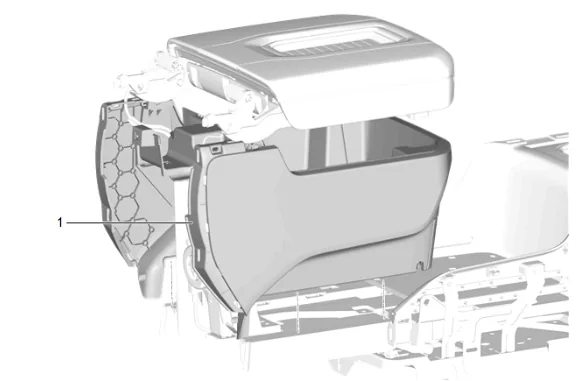

15. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 7

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 8

18. Using a flat-bladed plastic trim tool, release the retaining clips.

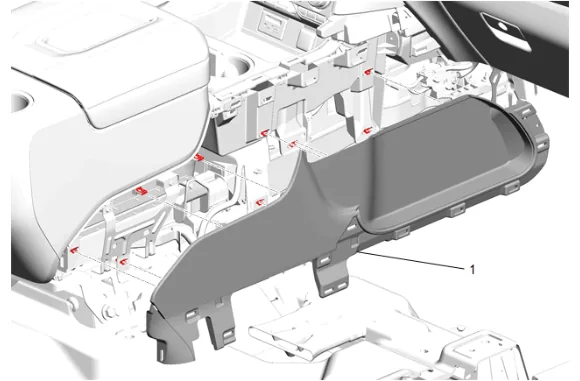

19. Front Floor Console Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 9

Note

Use a flat bladed plastic trim tool.

20. Front Floor Console Extension Panel (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 10

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 11

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Disconnect and reposition harness as necessary.
25. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 12

26. Front Floor Console Rear Cup Holder Liner (1) » Remove
27. Front Floor Console Cup Holder Bolt (2) » Remove
28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Rear Cup Holder (3) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 13

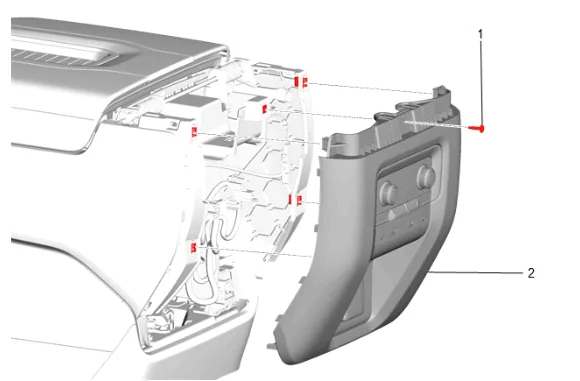

30. Front Floor Console Rear Cover Bolt (1) » Remove
31. Using a flat-bladed plastic trim tool, release the retaining clips.
32. Front Floor Console Rear Trim Panel (2) » Remove
33. Disconnect the electrical connectors.

Front Floor Console Wiring Harness Replacement (DCH) — figure 14

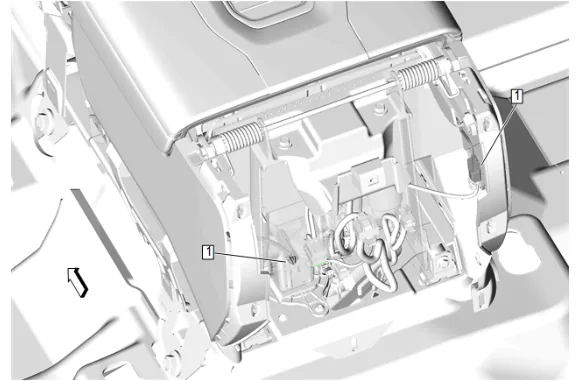

34. Disconnect the front floor console bin lamp connector (1).

Front Floor Console Wiring Harness Replacement (DCH) — figure 15

Note

Use a suitable tool.

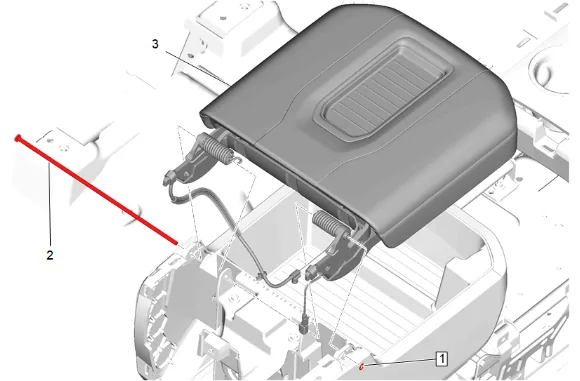

35. Front Floor Console Armrest Hinge Clip (1) » Remove

Warning

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

36. Front Floor Console Armrest Pivot Pin (2) » Remove
37. Front Floor Console Armrest (3) » Reposition

Front Floor Console Wiring Harness Replacement (DCH) — figure 16

Note

Some components not shown for graphic clarity.

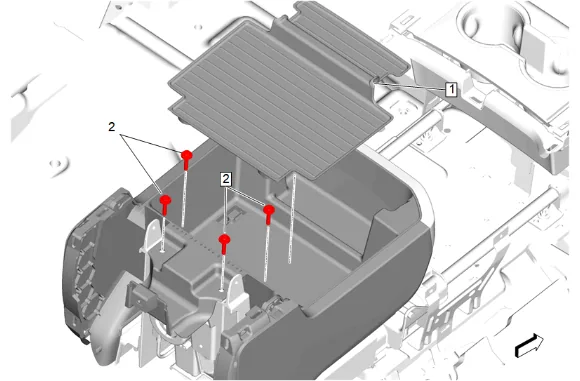

38. Front Floor Console Compartment Liner (1) » Remove
39. Front Floor Console Bracket Bolt (2) » Remove [4x]

Front Floor Console Wiring Harness Replacement (DCH) — figure 17

40. Front Floor Console Compartment (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 18

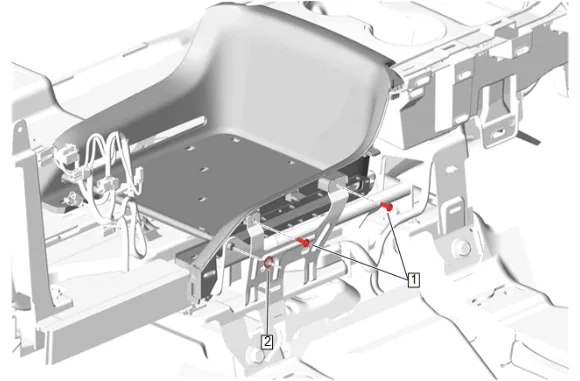

41. Front Floor Console Stowage Tray Bolt (1) » Remove [2x]

Note

Use a suitable tool.

42. Front Floor Console Armrest Hinge Clip (2) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 19

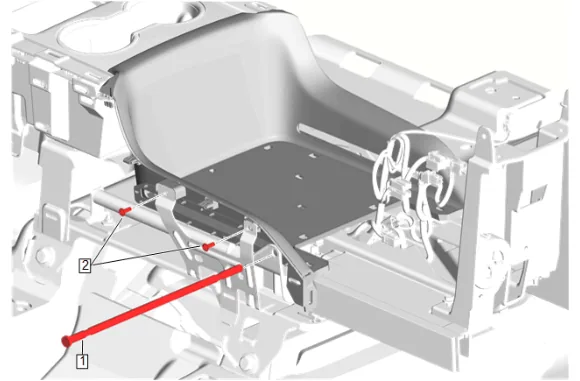

43. Front Floor Console Armrest Pivot Pin (1) » Remove
44. Front Floor Console Stowage Tray Bolt (2) » Remove [2x]

Front Floor Console Wiring Harness Replacement (DCH) — figure 20

45. Front Floor Console Stowage Tray (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 21

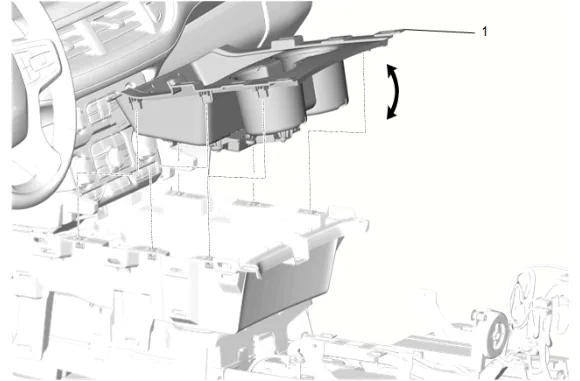

46. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
47. Disconnect the electrical connectors.
48. Front Floor Console Cup Holder Trim Plate (1) » Remove

Front Floor Console Wiring Harness Replacement (DCH) — figure 22

49. Disconnect and reposition harness as necessary.

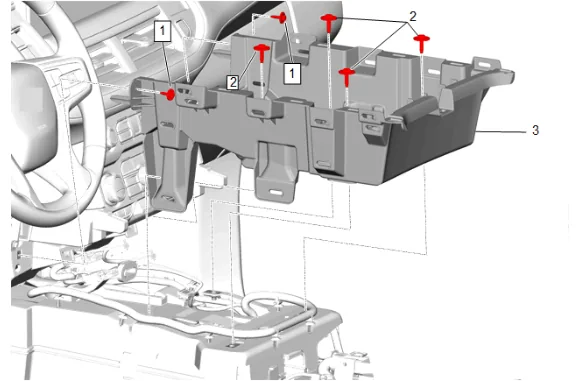

50. Front Floor Console Retainer Bolt (1) » Remove [2x]
51. Front Floor Console Intermediate Bracket Bolt (2) » Remove [4x]
52. Front Floor Console Carrier (3) » Remove
53. Disconnect and reposition harness as necessary.

Front Floor Console Wiring Harness Replacement (DCH) — figure 23

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content. Some components not shown for graphic clarity.

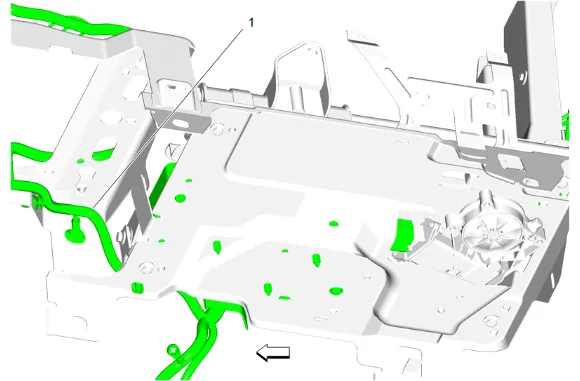

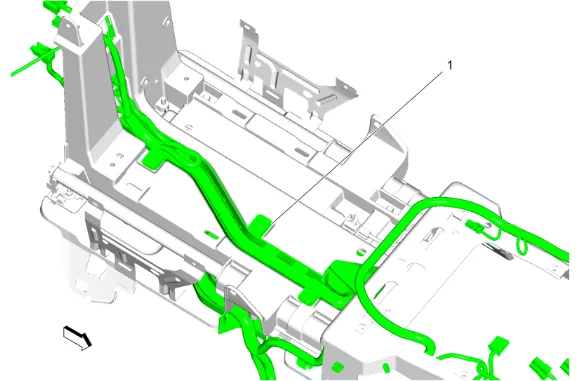

54. Release the wiring harness clips and remove the front floor console wiring harness (1).

Front Floor Console Wiring Harness Replacement (DCH) — figure 24

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content. Some components not shown for graphic clarity.

55. Release the wiring harness clips and remove the front floor console wiring harness (1). Installation Procedure

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content. Some components not shown for graphic clarity.

1. Front Floor Console Wiring Harness (1) » Install

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content. Some components not shown for graphic clarity.

2. Front Floor Console Wiring Harness (1) » Install

3. Connect and position the wiring harness.

4. Front Floor Console Carrier (3) » Install

5. Connect and position the wiring harness.

Caution

Refer to Fastener Caution.

6. Front Floor Console Intermediate Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

7. Front Floor Console Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

8. Connect the electrical connectors.

9. Front Floor Console Cup Holder Trim Plate (1) » Install

10. Front Floor Console Stowage Tray (1) » Install

11. Front Floor Console Armrest Pivot Pin (1) » Install

12. Front Floor Console Stowage Tray Bolt (2) » Install and tighten [2x] — Fastener Specifications

13. Front Floor Console Stowage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

14. Front Floor Console Armrest Hinge Clip (2) » Install

15. Front Floor Console Compartment (1) » Install

Note

Some components not shown for graphic clarity.

16. Front Floor Console Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

17. Front Floor Console Compartment Liner (1) » Install

18. Front Floor Console Armrest (3) » Install

19. Front Floor Console Armrest Pivot Pin (2) » Install

20. Front Floor Console Armrest Hinge Clip (1) » Install

21. Connect the front floor console bin lamp connector (1).

22. Connect the electrical connectors.

23. Front Floor Console Rear Trim Panel (2) » Install

24. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

25. Front Floor Console Rear Cup Holder (3) » Install

26. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

27. Front Floor Console Rear Cup Holder Liner (1) » Install

28. Connect and position the wiring harness.

29. Front Floor Rear Console Side Trim Panel (1) » Install

30. Front Floor Console Bolt Access Hole Cover (1) » Install

31. Front Floor Console Extension Panel (1) » Install

32. Front Floor Console Applique (1) » Install

33. Front Floor Console Lower Applique (1) » Install

34. Front Floor Rear Console Side Trim Panel (1) » Install

35. Front Floor Console Rear Trim Lower Panel (1) » Install

36. Front Floor Console Bolt Access Hole Cover (1) » Install

37. Front Floor Console Extension Panel (3) » Install

38. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

39. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

40. Front Floor Console Applique (1) » Install

41. Front Floor Console Lower Applique (1) » Install

42. Return the armrest compartment to the close position.

43. Front Seat - Right Side » Install — Front Seat Removal and Installation
